Name: cudy MC220 CUDY MC220 10/100/1000M Medienkonverter Media converter
Brand: cudy
SKU: 3798955

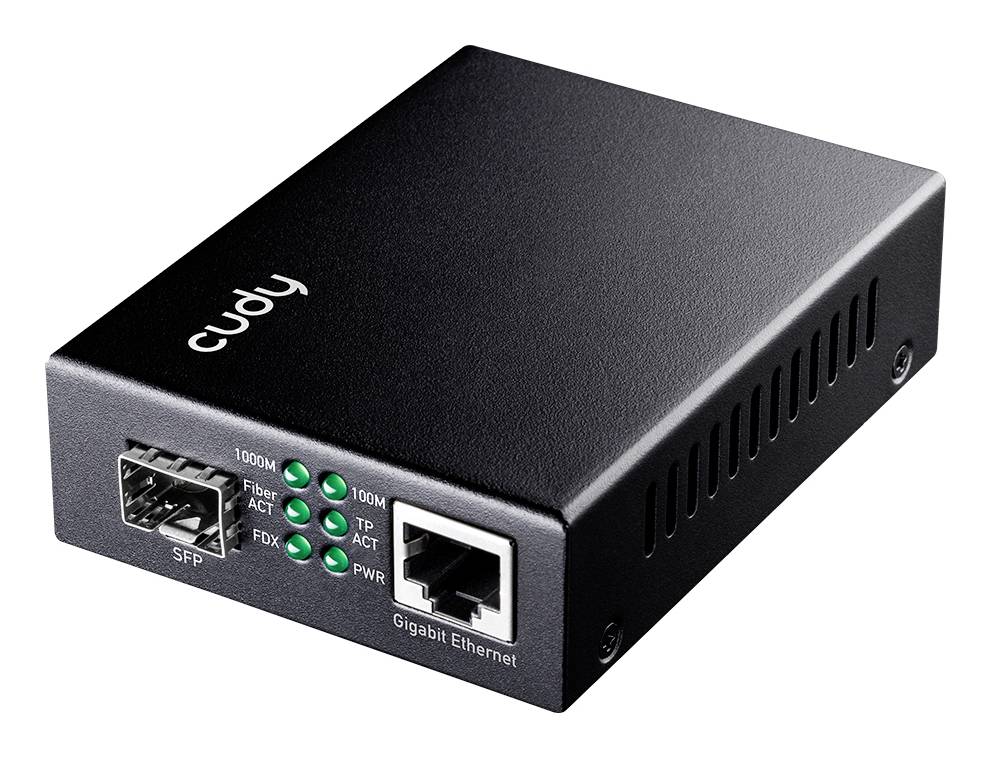

Black Cudy media converter with SFP port, Gigabit Ethernet port, and green status lights on the front panel.

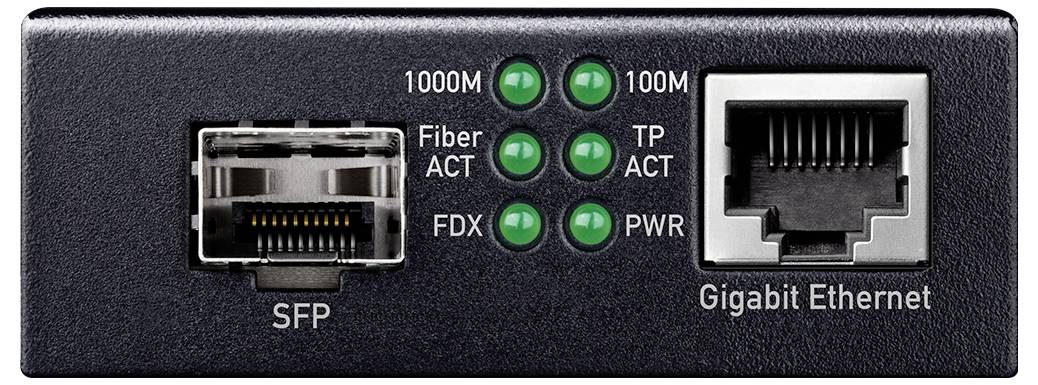

Front panel of a network switch showing an SFP fiber port on the left and a Gigabit Ethernet RJ45 port on the right, with status LEDs labeled 1000M, 100M, Fiber ACT, TP ACT, FDX, and PWR.

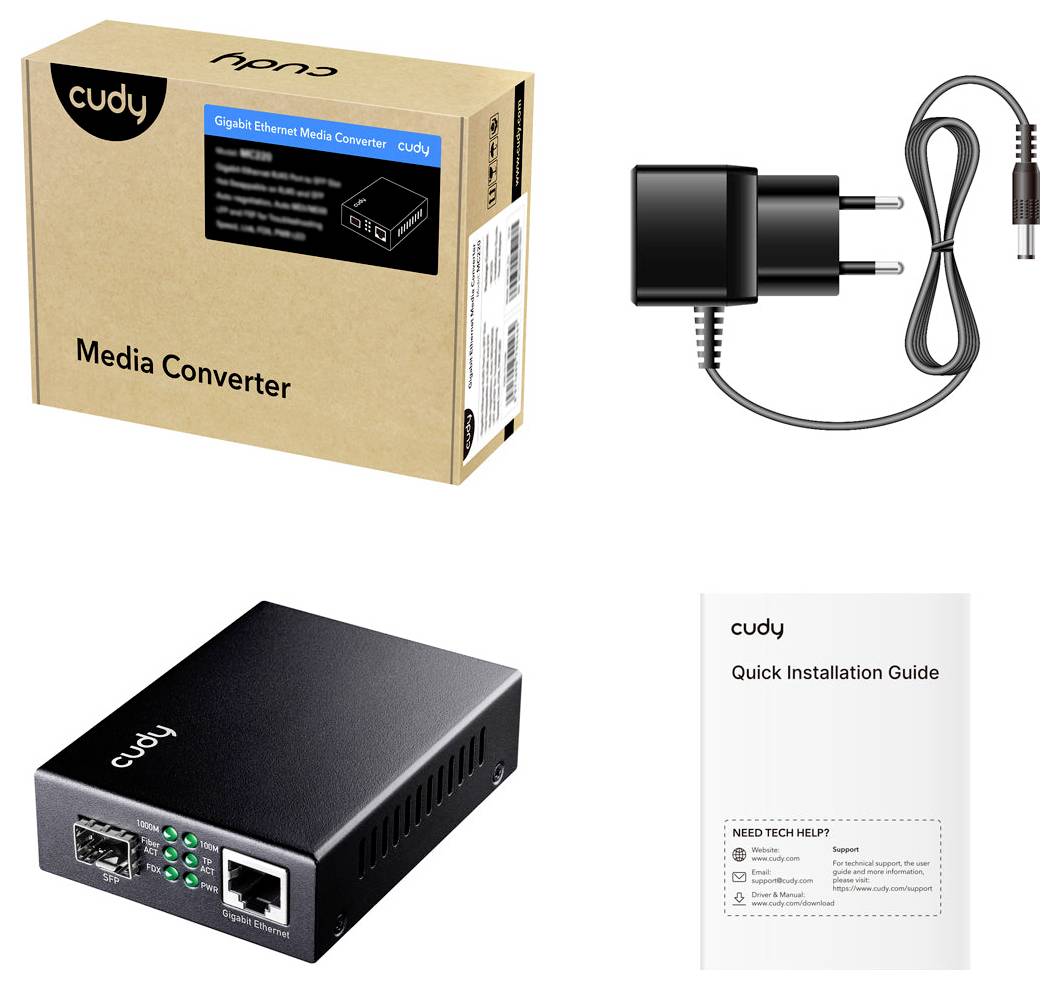

Cudy media converter kit with cardboard box, power adapter, black converter device, and quick installation guide.<br>

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Cudy MC220 Network Media Converter 1000 Mbit/s 1310 nm Single Mode Black

Cable connected
1000 Mbit/s 20000 m 1310 nm
100BASE-TX, 100BASE-FX, 1000BASE-TX
Number of Ethernet LAN connections (RJ-45): 1
Single mode Number of fiber connections: 1 SFP
Black

Technical specifications

Maximum data transfer rate of 1000 Mbit/s.
Sensitivity 24 dBmW
Optical cable type: SFP+

Product type: Media converter

10/100/1000 Mbps ports: 1 x

Weight: 0.316

Type: CUDY MC220 10/100/1000M Medienkonverter

Factory colour: Black

Output voltage: 5 V

Power consumption (ON): 4 W

Input voltage: 90 - 240 V

Transfer type: Corded

UKCA: not relevant

Operating temperature (T-T): 0 - 60 °C

Buffer size: 9 KB

Auto-negotiation: yes

Internal: no

Wavelength: 1310 nm

Flow control support: yes

Mean time between failures (MTBF): 50000 h

Fiber ports quantity: 1

Auto MDI/MDI-X: yes

Operating relative humidity (H-H): 5 - 90 %

Plug and Play: yes

Maximum transfer distance: 20000 m

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3798955 cudy MC220 CUDY MC220 10/100/1000M Medienkonverter Media converter

Conformity certificate

Conformity certificate 3798955 cudy MC220 CUDY MC220 10/100/1000M Medienkonverter Media converter

Description

Immediate network monitoring with integrated LED-displays

Thanks to the integrated LED-displays the operating state of the device can be checked without any problem at all times. The network status is immediately visible, allowing you to monitor and troubleshoot at a glance.

Reliable high-speed gearbox without loss of speed

The all-in-one module offers an extraordinary optical and electrical power and thus ensures a long-term stability of the data transfer.

Simply connect and start, no setup needed

Simply plug and start – connect immediately without any configuration. Easy to use and with fast, responsive performance.
