Name: cudy POE200 CUDY POE200 30W PoE+/PoE Injektor Gigabi PoE injector
Brand: cudy
SKU: 3798933

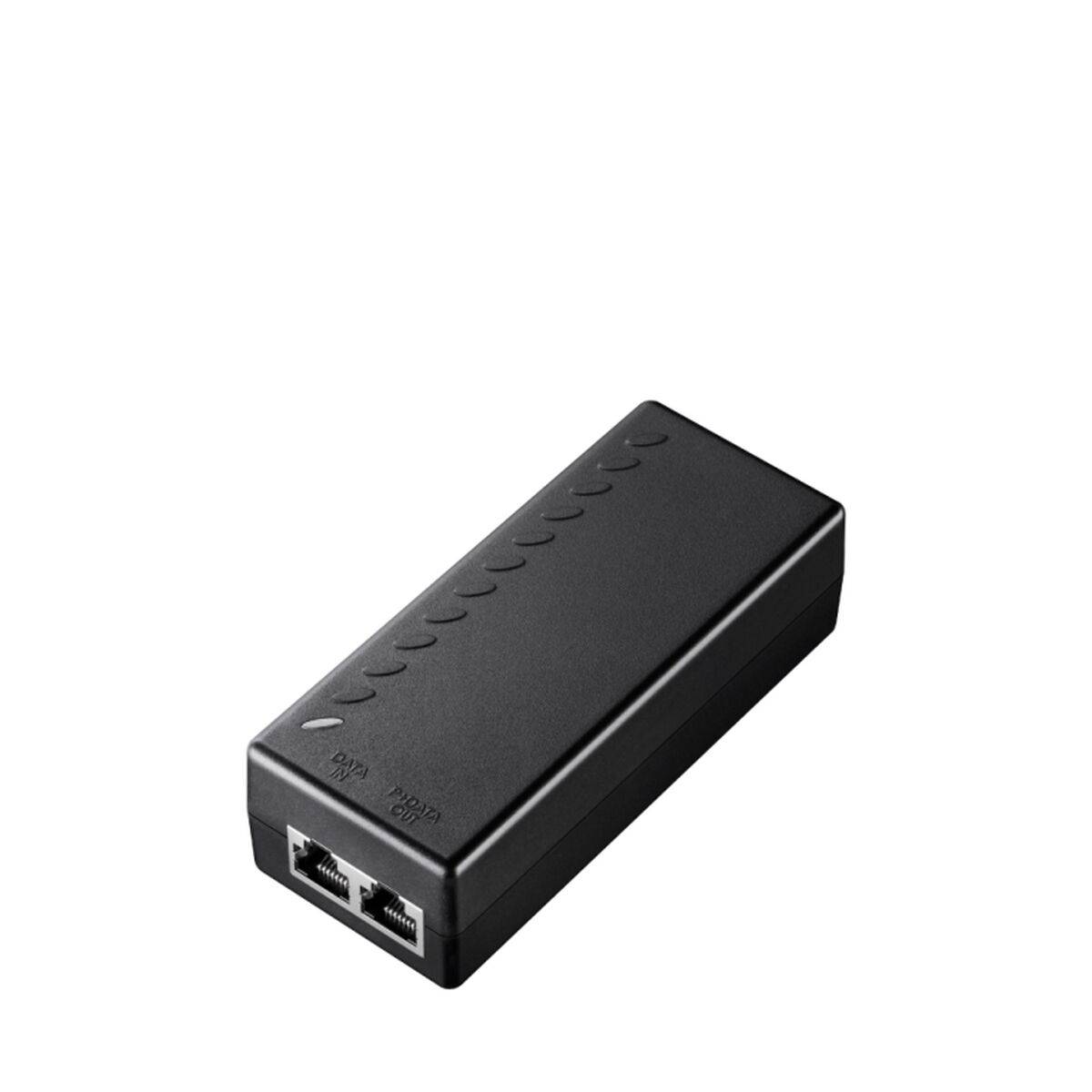

cudy POE200 CUDY POE200 30W PoE+/PoE Injektor Gigabi PoE injector-0

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Cudy POE200 PoE-adapter Gigabit Ethernet 54 V

10,100,1000 Mbit/s Cat5e 100 m
Power over Ethernet (PoE) IEEE 802.3af, IEEE 802.3at
Black

Technical specifications

Product type: PoE injector

10/100/1000 Mbps ports: 2 x

Weight: 0.352

Width: 121 mm

Height: 36 mm

Depth: 50 mm

Type: CUDY POE200 30W PoE+/PoE Injektor Gigabi

Factory colour: Black

Cable length: 0 m

Version: Cable

: 30 W

UKCA: yes

Operating temperature (T-T): -10 - 45 °C

Storage relative humidity (H-H): 5 - 95 %

Wall mountable: yes

Maximum operating distance: 100 m

Operating temperature (T-T): 14 - 113 °F

Power over Ethernet (PoE): yes

Power over Ethernet (PoE) voltage: 54 V

Power cord included: yes

Easy to install: yes

Number of products included: 1 Stück(e)

Operating relative humidity (H-H): 10 - 95 %

Storage temperature (T-T): -40 - 70 °C

Plug and Play: yes

Surge protection: yes

RJ-45 input ports: 1

RJ-45 output ports: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3798933 cudy POE200 CUDY POE200 30W PoE+/PoE Injektor Gigabi PoE injector

Description

Reliable PoE for uninterrupted 24/7 operation

IEEE 802.3at/AF Maximum output power 30 W.

Delivers up to 30 W power in the standard PoE protocol 802.3at/AF and is suitable for power supply for access points, surveillance cameras and other PoE clients.

Speeds of 10/100/1000 Mbit/s.

Stream data at full speed for bandwidth-intensive clients such as access points and 4K cameras without loss of performance.

Excellent processing quality for stable operation

Protect your customers with outstanding EMC.

The rugged EMC design protects the device and the customer from overvoltages and electrostatic discharge.

ESD: Contact 6 kV; air 8 kV
Overvoltage protection: Power supply DM 4 kV, CM 4 kV; RJ45 CM 4 kV

Designed for longer durability due to high-quality capacitors

Equipped with high-quality capacitors, which have a 1.6-times longer life span than the industry average, the PoE-adapter is more resistant to aging and wear.

Easy to Use Plug and play

Automatic negotiation of the required performance

Connect power, switches/routers and clients - the adapter automatically detects the required power and supplies it accordingly.

Wall mounting possible

Equipped with two mounting angles which enable a firm mounting on the wall.

This text is machine translated.
