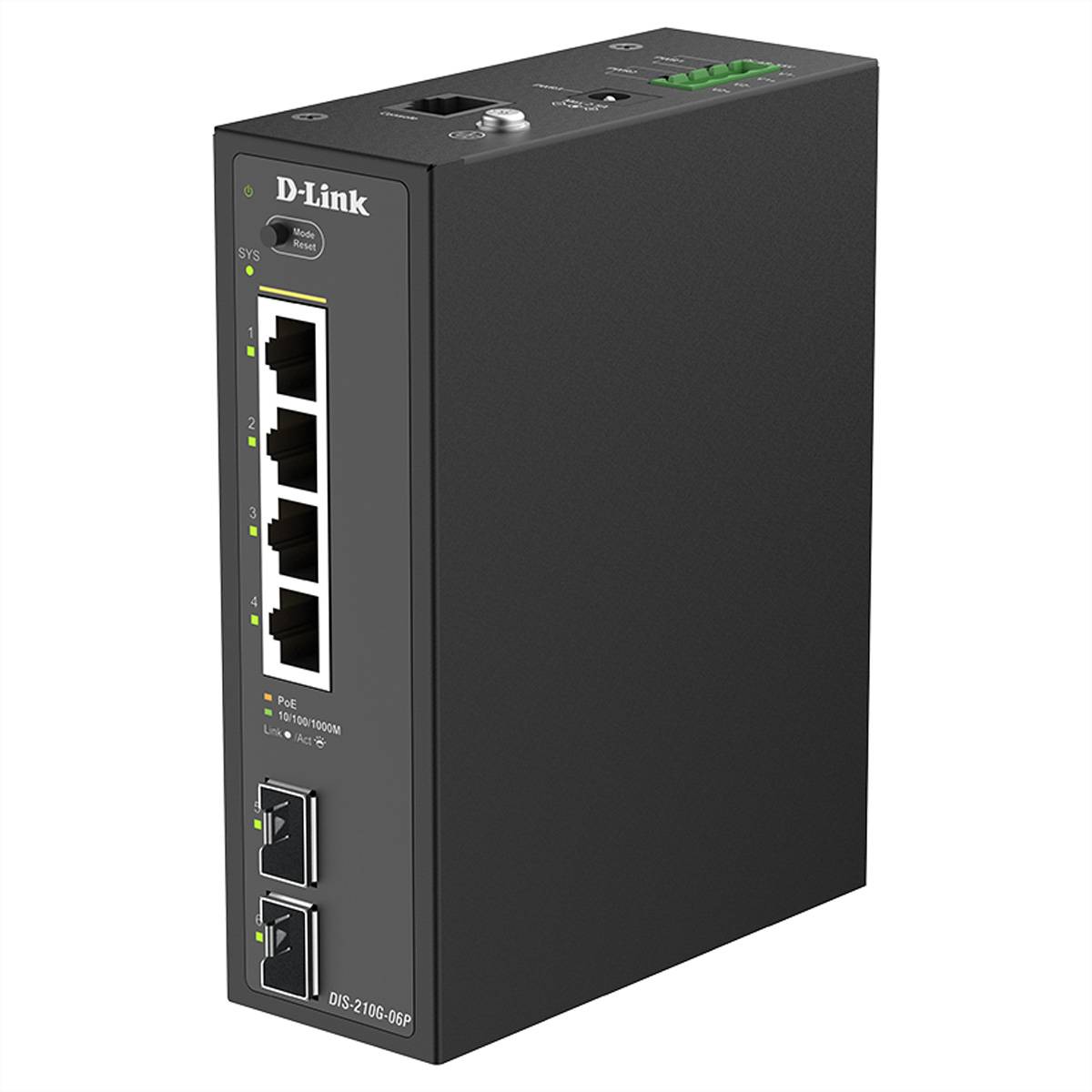

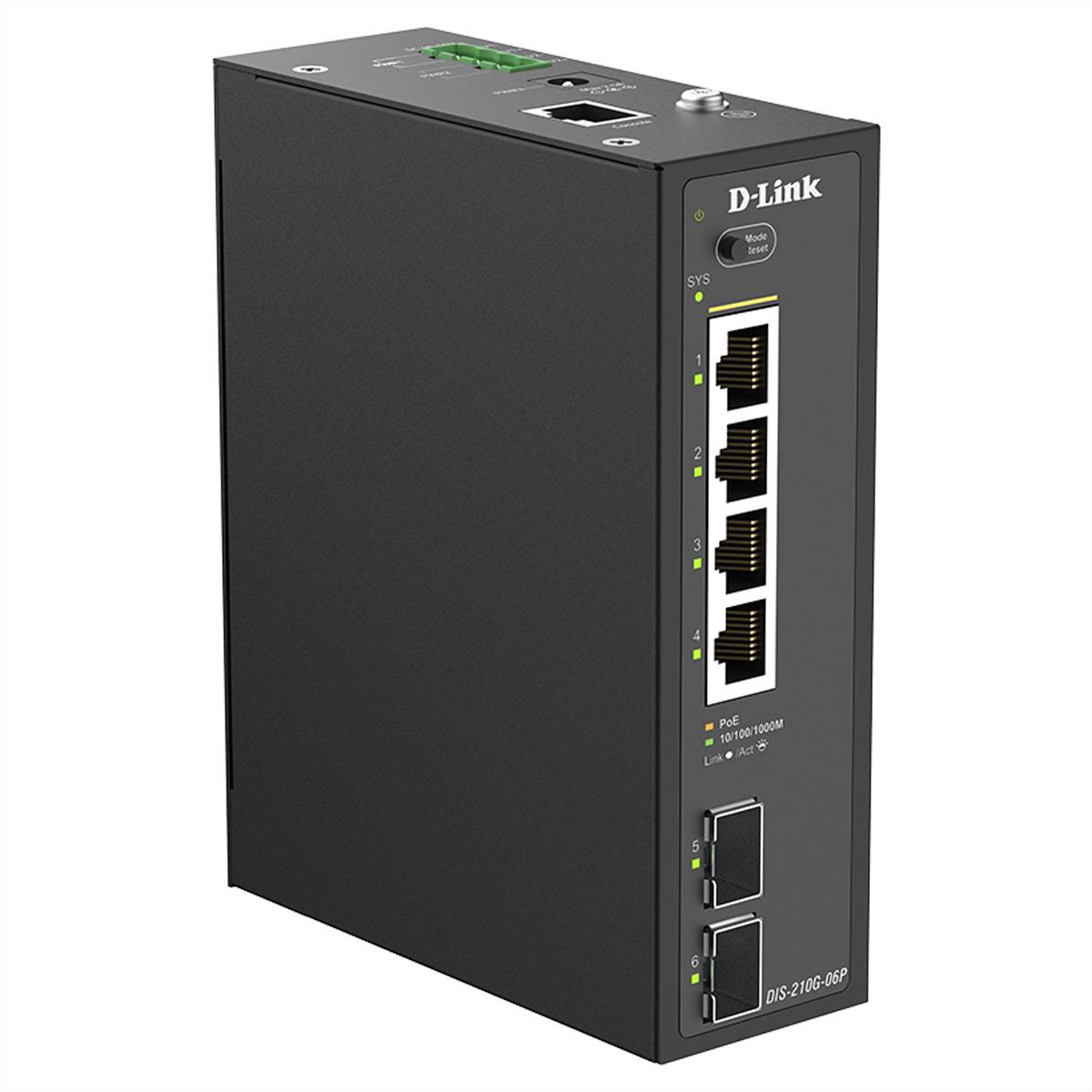

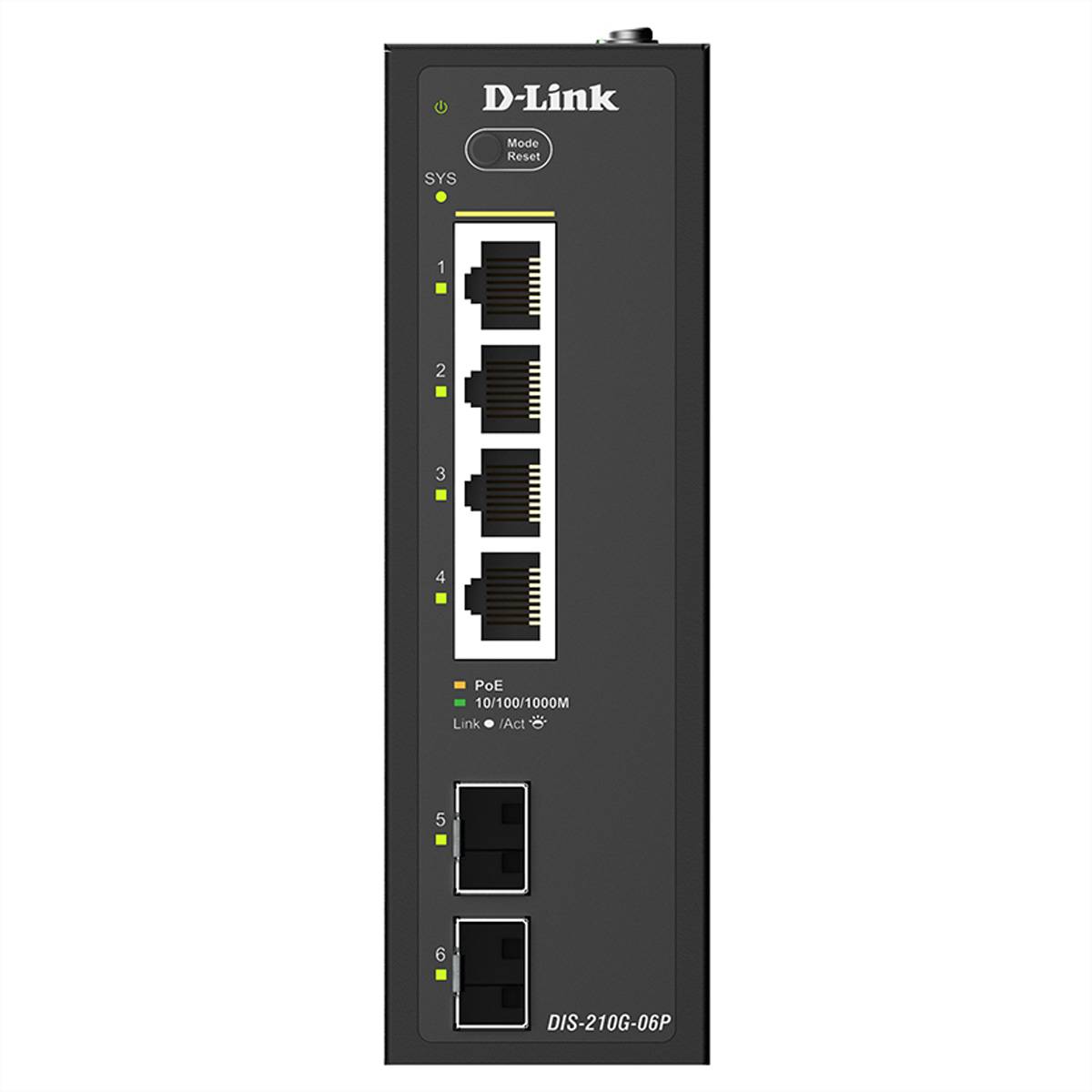

Name: D-Link DIS-210G-06P 6-port switch, Smart managed gigabit PoE industrial
Brand: D-Link
SKU: 3798661

D-Link DIS-210G-06P 6-port switch, Smart managed gigabit PoE industrial-0

D-Link DIS-210G-06P 6-port switch, Smart managed gigabit PoE industrial-1

D-Link DIS-210G-06P 6-port switch, Smart managed gigabit PoE industrial-2

D-Link DIS-210G-06P 6-port switch, Smart managed gigabit PoE industrial-3

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

D-Link DIS-210G-06P network switch managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail black

Managed L2/L3
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 4
MAC address table: 8000 entries Routing/switching capacity: 12 Gb/s.
DIN rail;
DC power supply includes Power over Ethernet (PoE)

Technical specifications

Form factor DIN rail
Power source: Direct current

Product type: Network switch

Weight: 630 g

Width: 44 mm

Height: 138 mm

Depth: 108 mm

Type: D-Link DIS-210G-06P 6-Port Switch, Smart

: IP40

Factory colour: Black

Cable length: 0 cm

Keyboard layout: German, QWERTZ

Safety: SNMP
SNMPv2
SNMPv3

UKCA: yes

DIN rail mounting: yes

Operating temperature (T-T): -40 - 75 °C

Power over Ethernet plus (PoE+) ports quantity: 4

Basic switching RJ-45 Ethernet ports quantity: 4

Total Power over Ethernet (PoE) budget: 120 W

Switching capacity: 12 Gbit/s

Jumbo frames: 9000

Power over Ethernet (PoE) power per port: 30 W

SFP module slots quantity: 2

Power over Ethernet (PoE): yes

MAC address filtering: yes

Quality of Service (QoS) support: yes

Link aggregation: yes

Jumbo frames support: yes

MAC address table: 8000 Eintragungen

Number of VLANs: 4000

Operating relative humidity (H-H): 5 - 95 %

VLAN support: yes

10G support: no

Forwarding rate: 8.92 Mpps

Power consumption (max): 123.2 W

Power supply included: yes

Documents & Downloads

Datasheet

Datasheet 3798661 D-Link DIS-210G-06P 6-port switch, Smart managed gigabit PoE industrial

User & Safety Instructions

User & Safety Instructions 3798661 D-Link DIS-210G-06P 6-port switch, Smart managed gigabit PoE industrial

Description

The DIS-210G-06P has a robust and durable design that is suitable for Ideal for harsh environments such as outdoor installations, non-air-conditioned production areas and remote locations. The DIS-210G-06P is equipped with four PoE ports that meet the IEEE 802.3af/at standards and transfer data and power over a single Ethernet cable. With a total power budget of up to 120W, each PoE port can deliver up to 30W and Ideal is suitable for supplying surveillance cameras, IP phones, wireless access points and IoT sensors. 2x 1G SFP ports for aggregate data throughput. 4x Gigabit ports for fast data transfer. IEEE 802.3af/at with 120W PoE power budget. Two power inputs for redundant power supply. Operation from -40 °C to 75 °C for harsh environments. 6 kV surge protection at the gigabit Ethernet ports. Fanless design and IP40-certified casing enhance the reliability. Support for Ethernet Ring Protection Switching (ERPS). Support for L2 management and static IP routing. Proactive OAM to Y.1731, 802.1ag and 802.3ah
