Buy Datataker 9998403874 DT-82E Multi-channel data logger | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

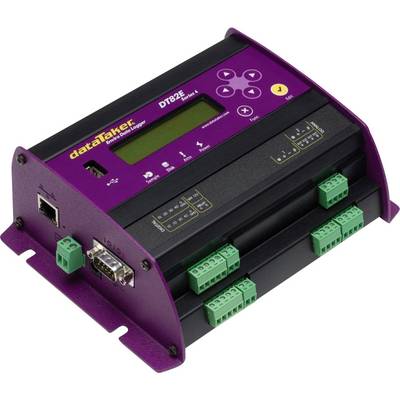

'dataTaker DT82E' data logger with ports for connectivity and digital display, used for data acquisition in industrial applications.

'dataTaker DT82E' data logger with ports for connectivity and digital display, used for data acquisition in industrial applications.

Datataker

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2,419.00 / piece)

€ 2,419.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Datataker 9998403874 DT-82E Multi-channel data logger

18 bit resolution, up to 6 analogueue (±50V) sensor inputs
Support for: Thermocouples, RTDs, thermistors, semiconductor sensors, etc.
4 digital channels, relay output, counter
1 serial 'Smart Sensor' connections
SDI-12, programmable analogue output
Model bus for SCADA connection
Communication via RS-232, USB or Ethernet
Protocols: ASCII, FTP, Web, E-mail, Dynamic DNS
Opt. Can bus interface (CANgate) and channel extension (CEM20)
DT remote app, LabVIEW support
Dual channel isolation technology
This text is machine translated.

Technical specifications

Product type: Multi-channel data logger

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 137 x 180 x 65 mm

Weight: 0.9 kg

Channels: 6

Width: 180 mm

Height: 65 mm

Length: 137 mm

Power supply: 12 - 24V / DC

Type: DT-82E

Documents & Downloads

Datasheet

Datasheet 2114722 Datataker 9998403874 DT-82E Multi-channel data logger

User & Safety Instructions

User & Safety Instructions 2114722 Datataker 9998403874 DT-82E Multi-channel data logger

Information

Information 2114722 Datataker 9998403874 DT-82E Multi-channel data logger

Description

The dataTaker DT80-series enables the independant acquisition and evaluation of measurement data. The intelligent logger has a wide range of connection types for various sensor types. The logger can be extended via an additional module and can therefore be adapted precisely to the respective application. A comprehensive communication capability (interfaces, web interface, FTP, web, e-mail, Dynamic DNS, …) makes the logger a good choice, even in harsh environments.

This text is machine translated.

Description

The dataTaker DT80-series enables the independant acquisition and evaluation of measurement data. The intelligent logger has a wide range of connection types for various sensor types. The logger can be extended via an additional module and can therefore be adapted precisely to the respective application. A comprehensive communication capability (interfaces, web interface, FTP, web, e-mail, Dynamic DNS, …) makes the logger a good choice, even in harsh environments.

This text is machine translated.
