VOLTCRAFT DL-111K Temperature data logger Unit of measurement Temperature -200 up to 1370 °C
EAN:
Part number:
Item no:
38 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 42.01 / piece)
€
Highlights & Details
VOLTCRAFT DL-111K Temperature data logger Unit of measurement Temperature -200 up to 1370 °C
- 32,000 measured values can be stored
- Measuring range -200 up to +1370 ℃
- USB Stick-type
Technical specifications
- Temperature measurement range of the K-Type Temperature sensor -50 to +250°C.
- Sampling interval
2 s - 24 h
- Power supply (details)
3.6 V lithium battery (1/2 AA)
- Battery life
>1000 h
- Sensor
K-type
- Dim
(L x W x H) 101 x 25 x 23 mm
- Weight
175 g
- Height
23 mm
- Length
101 mm
- Width
25 mm
- Temperature reading range
-200 up to 1370 °C
- Memory (readings)
32000
Manufacturer's standards (no certificate)
- Unit of measurement
Temperature
- Type
DL-111K
- Sample rate (max.)
24 h
- Sample rate (min.)
2 s
- Temperature reading range (max.)
1370 °C
- Temperature reading range (min.)
-200 °C
- Temperature accuarcy (details)
±2 °C
- Resolution
0.1 °C
- Power supply
Li battery (1/2 AA)
- Plastic free packaging
Plastic-free packaging
- Product type
Temperature data logger
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2179618 VOLTCRAFT DL-111K Temperature data logger Unit of measurement Temperature -200 up to 1370 °C
Information
Test Summary Report 2179618 VOLTCRAFT DL-111K Temperature data logger Unit of measurement Temperature -200 up to 1370 °C
Security datasheet
Security datasheet 2179618 VOLTCRAFT DL-111K Temperature data logger Unit of measurement Temperature -200 up to 1370 °C
Warranty Terms
Warranty Terms 2179618 VOLTCRAFT DL-111K Temperature data logger Unit of measurement Temperature -200 up to 1370 °C
Download
Download 2179618 VOLTCRAFT DL-111K Temperature data logger Unit of measurement Temperature -200 up to 1370 °C
Download 2179618 VOLTCRAFT DL-111K Temperature data logger Unit of measurement Temperature -200 up to 1370 °C
Description

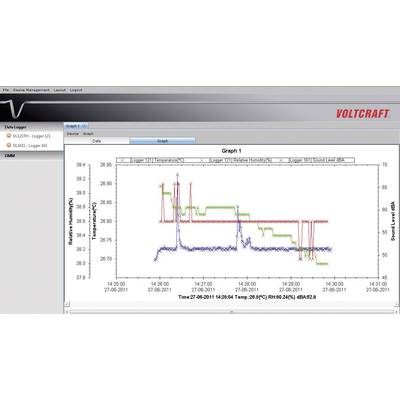

Compact data logger with a lithium battery for the recording of 32,000 temperature readings. The stored data can be read via the USB interface and software supplied with the graphic analysis, or for further processing with other programs to be exported.
Features
- Recording interval of 2 s to 24 h
- External K-type sensor.
Scope of delivery
- K-type sensor
- Evaluation Software
- Lithium Battery
- USB cap
- Wall bracket
- Operating instructions.
Hints
The temperature sensor supplied is suitable for a measuring range from -50 to +250ºC. In order to be able to use the full range of the data logger, you will need a separately available temperature sensor with a larger measurement range.
You can obtain the latest version of software free under Download documents.
Free to download on the product page at www.produktinfo.conrad.com.
