Name: DeepCool CH370 Microtower PC casing White Built-in fan
Brand: DeepCool
SKU: 2996566
Availability: SoldOut

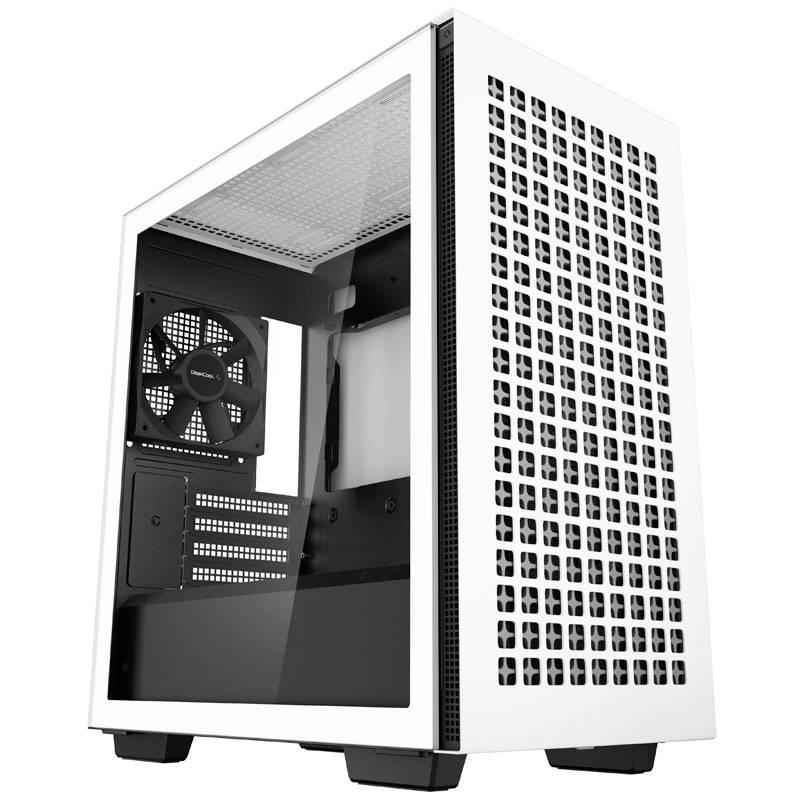

White computer case with large ventilation openings and a side glass door, with a fan visible at the rear.

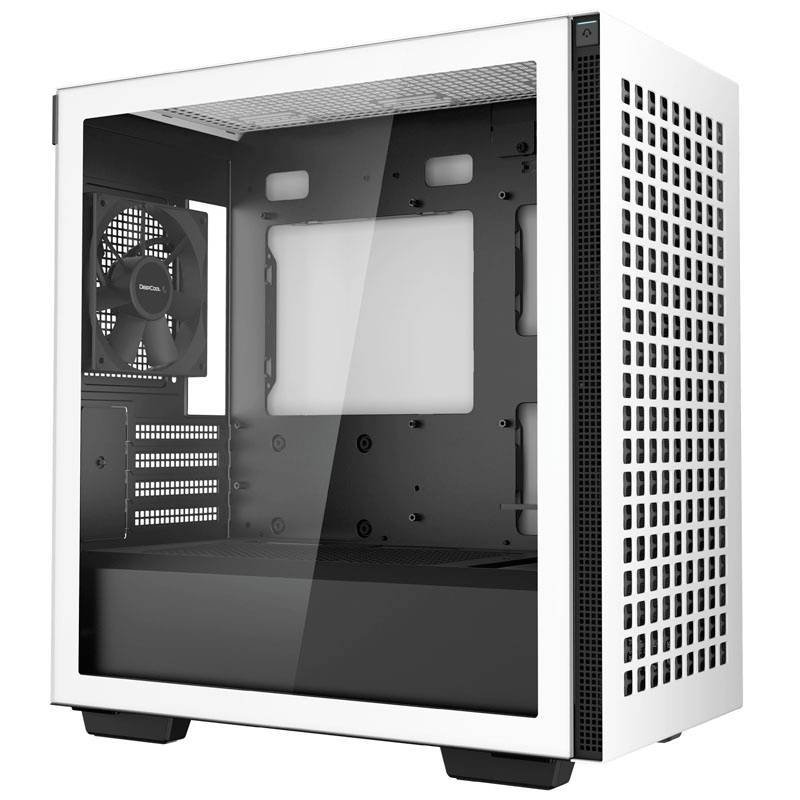

The image shows a white computer case with a transparent side panel. Inside, fans and mounting brackets for hardware are visible.

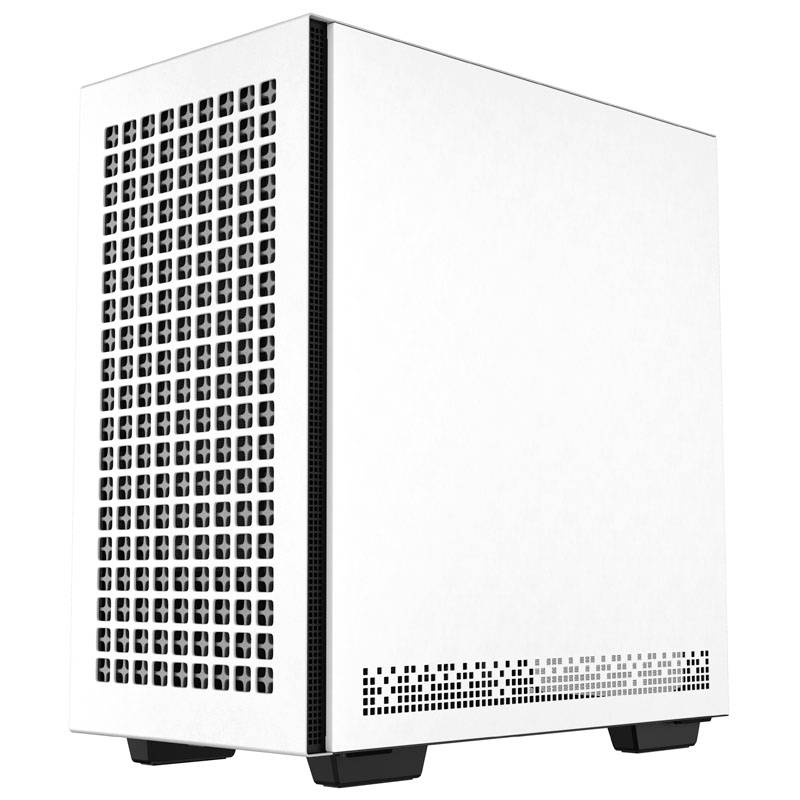

A white computer case with a black mesh front and side panel, standing on black feet, suitable for a desktop PC.

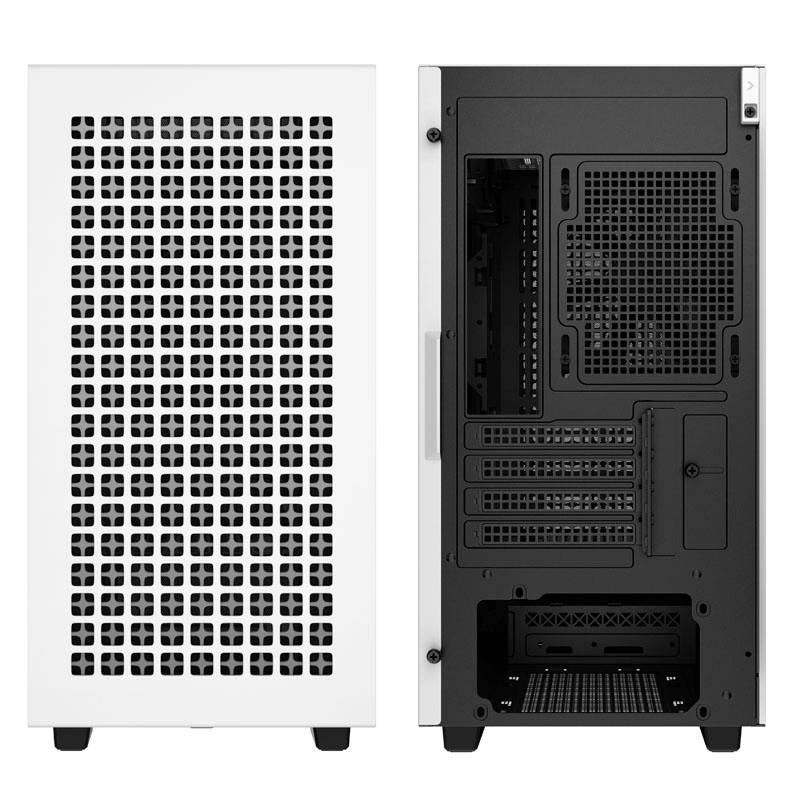

A white computer case viewed from the front and back. The front has a rectangular ventilation grille, and the back shows expandable expansion slots.

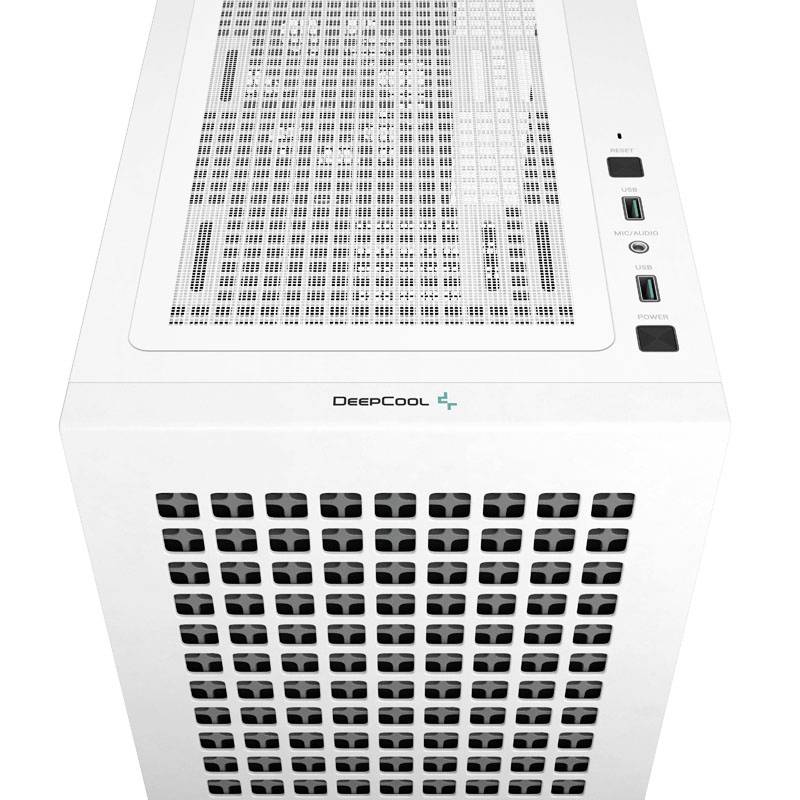

White computer cases with mesh design, vertical USB and audio ports on the front; marked with 'DeepCool'.

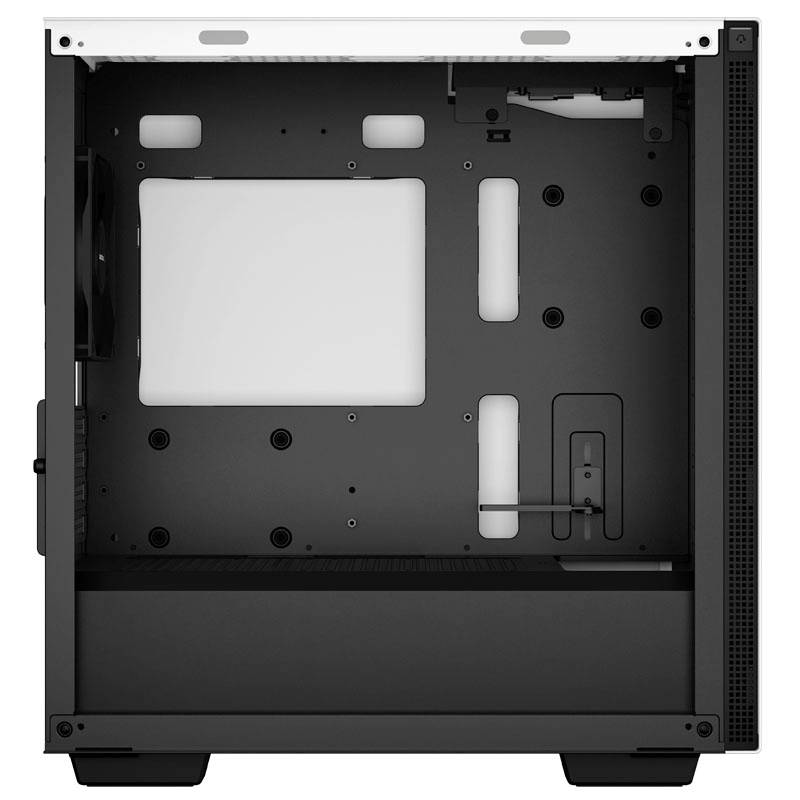

An open computer case, black with white accents, reveals an empty interior. Suitable for installing PC components.

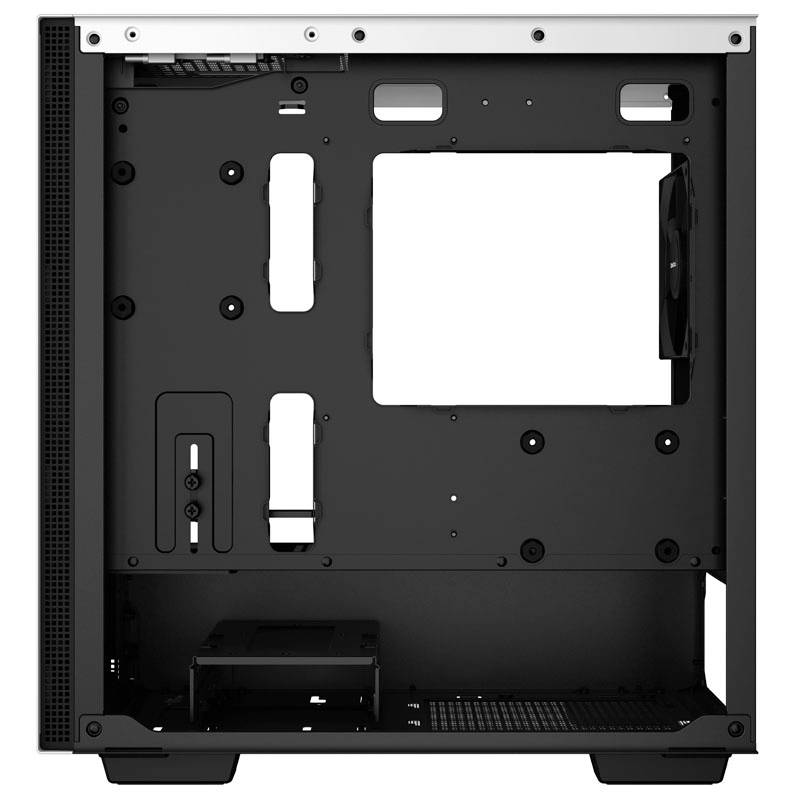

Open computer chassis with space for motherboard and fans, showing various mounting positions for PC components.

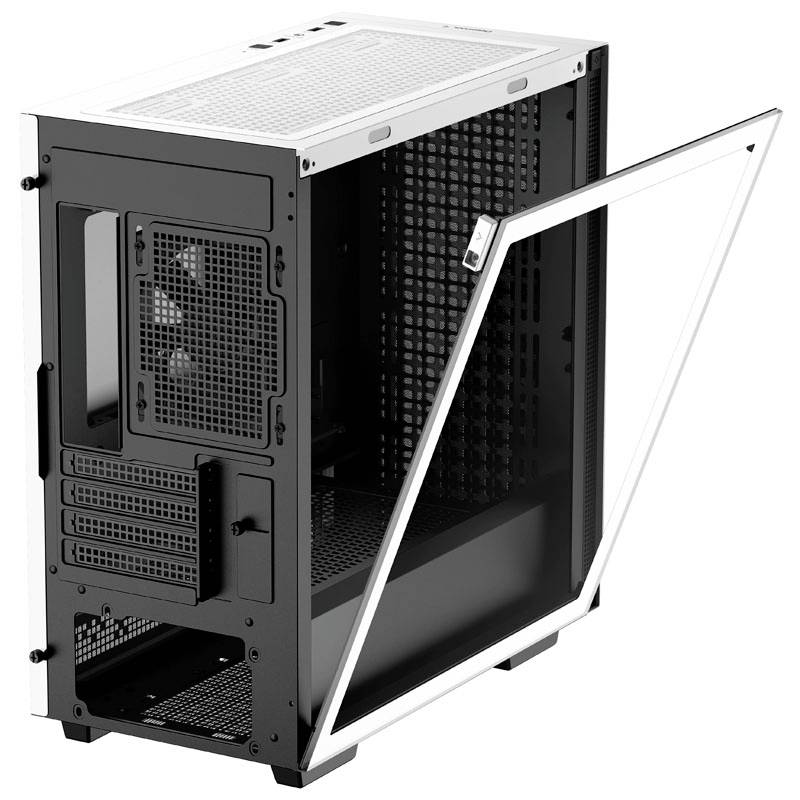

An open computer case in black and white. The internal structure with multiple ventilation slots is visible, along with the opened side panel in a glass-like finish.

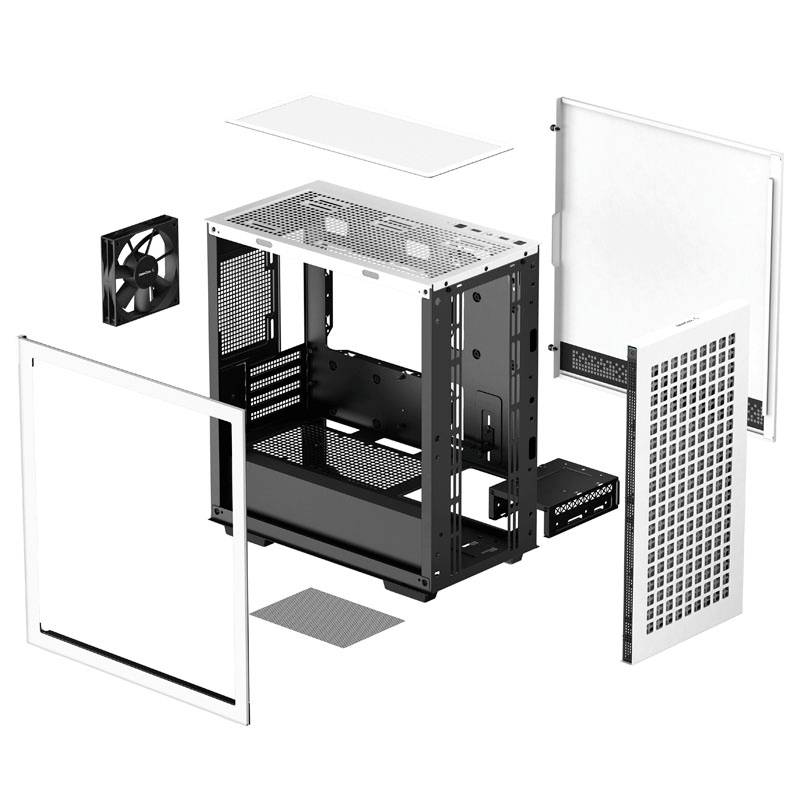

Dismantled computer case with removed side panels and fans. Main structure in the centre, surrounded by panels and fans.

1/9

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 69.99 / piece)

€ 69.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DeepCool CH370 Microtower PC casing

Micro ATX casing with an integrated fan
Side plate made of tempered glass
Cover, base and front with ventilation holes
Optimal cooling thanks to space for up to eight fans
360 mm radiators on the front possible
Graphics cards up to a length of 320 mm
Maximum CPU-cooler height of 165 mm

Technical specifications

Material: Steel, tempered glass
Total fans possible: 3x 120 mm / 2 x 140 mm (front), 2x 120 mm / 140 mm (lid), 1x 120 mm / 140 mm (rear side), 2x 120 mm (power supply cover)
Pre-installed fan: 1x 120 mm fan (rear side)
Radiator-Mountings: 1x max. 360 mm (front), 1x max. 240 mm (lid), 1x max. 140 mm (rear-side)
Drive bays: 2x 2.5", 2x 3.5"
Power supply 1x ATX PS2
Extension slots 7
I/O-Panel: 1x Power button, 2x USB 3.0 (type A, USB 3.2 Gen 1, max. 5 Gbit/s), 1x 3.5 mm combo connection
Maximum graphics card length 320 mm
Maximum CPU-cooler height 165 mm

Product type: PC casing

Case type: Microtower

Factory colour: White

Interfaces (front): Headphone/mic combo jack (3.5 mm)
USB A (USB 3.2 1st gen)

6.4 cm (2.5") internal slots: 2

8.9 cm (3.5") internal slots: 2

Width: 413 mm

Height: 215 mm

Depth: 431 mm

Weight: 5300 g

Form factor: Micro-ATX
Mini-ATX

No. of USB type A 3.0 ports: 2 x

Wireless charging: No

Dim: (W x H x D) 413 x 215 x 431 mm

Features: Built-in fan

Keyboard layout: German, QWERTZ

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2996566 DeepCool CH370 Microtower PC casing White Built-in fan

Description

Micro ATX housing with Tempered Glass and good air flow
With the DeepCool CH370 Micro ATX casing you are not making any compromises when it comes to the aesthetics and the cooling of your gaming PC.

The side part is made of tempered glass and enables an excellent view of your installed components. The front consists of a continuous front with air holes for a good fresh air supply.

Good airflow thanks to perforated front
The DeepCool CH370 comes up with good airflow for high-end hardware. There are ventilation holes on the underside and front to ensure enough cool fresh air is held in place. In addition, the lid of the casing is perforated and thus transports the heated air reliably out of the casing. The pre-installed fans thereby provide for a proper passage.

In addition, you have the possibility to house a total of eight 120 mm or five 140 mm fans in the CH370 and thus provide continuous effective cooling. The front offers space for three 120 mm or two 140 mm fans, the lid allows two 120 mm or two 140 mm fans, the power supply cover two 120 mm fans and the rear side leaves space for a 120 or 40 mm fan.

Many mounting options for radiators
If you plan to add water to your system, then the DeepCool CH370 is well positioned despite its size. You can accommodate a 360 mm radiator in the front. In addition, the cover offers place for a 240-mm radiator. In addition, you can also install a 120 mm radiator on the rear side, in case you want to use a small AiO-water cooling for cooling your CPU.

Plenty of space for your gaming hardware
Two 3.5-inch data carriers can be stored in the power supply bay. There are additional two holders at the back of the mainboard tray for two 2.5 inch data carriers.

In addition, graphic cards up to a length of 320 mm and CPU-cooler can be installed up to a height of 165 mm.

Well-equipped I/O-panel
The I/O panel provides power button, HD audio and microphone connector, and two USB 3.0 Type A ports for faster file transfer.

This text is machine translated.
