Name: DeepCool CH560 Digital WH Midi tower PC casing White 4 built-in fans
Brand: DeepCool
SKU: 2996575
Availability: SoldOut

White computer case with side window, showcasing colourful fans and digital display. Suitable for gaming setups.

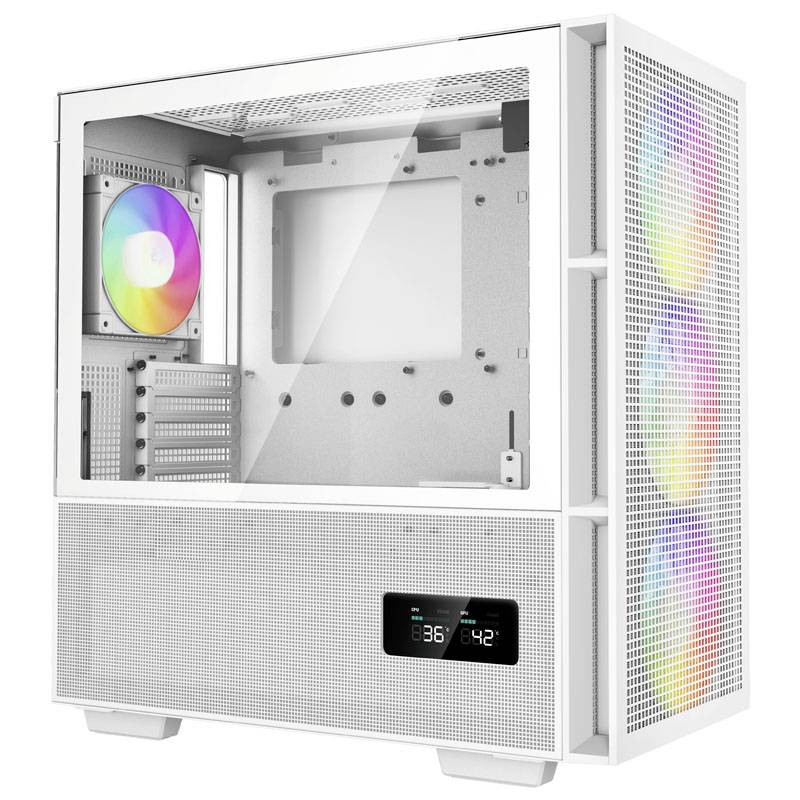

White PC case with RGB fans and a transparent side window. A digital temperature display shows 36 and 42 degrees.

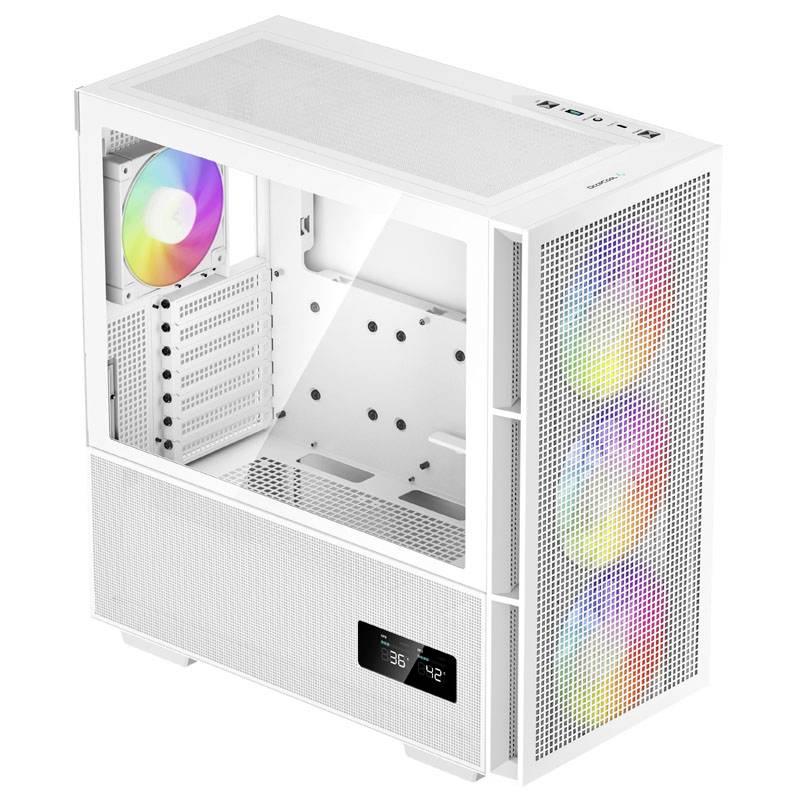

A white computer case with a transparent side panel. It shows colourful, illuminated fans at the front and inside.

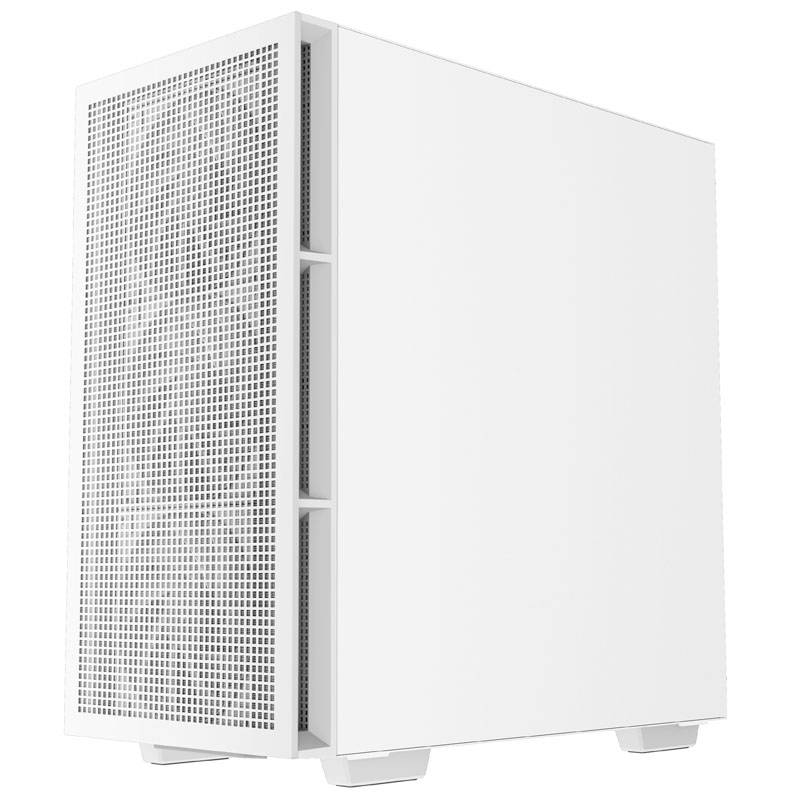

A white computer case with a mesh front panel, designed in a minimalist and modern style.

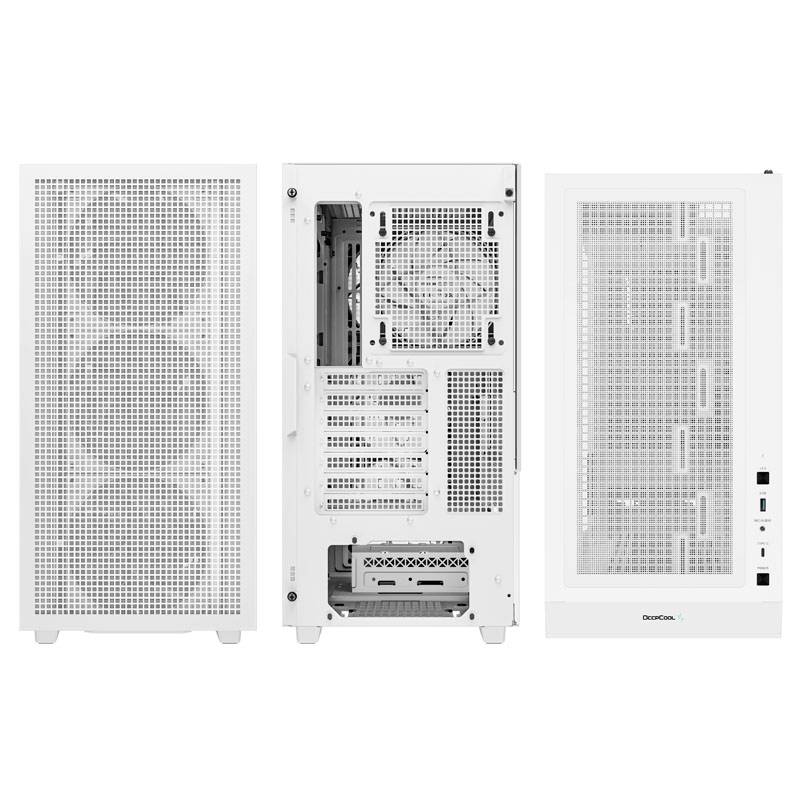

A white computer case with a mesh front and top, showing three fans at the front, open rear view with multiple expansion slots.

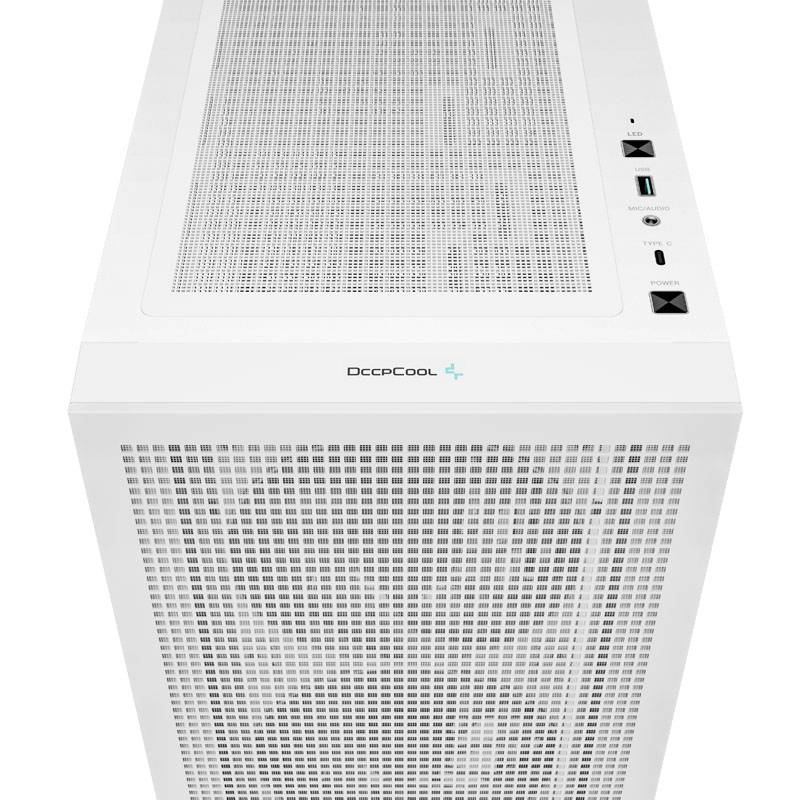

A white DeepCool PC case with a perforated design for improved ventilation, showing connections on the front.

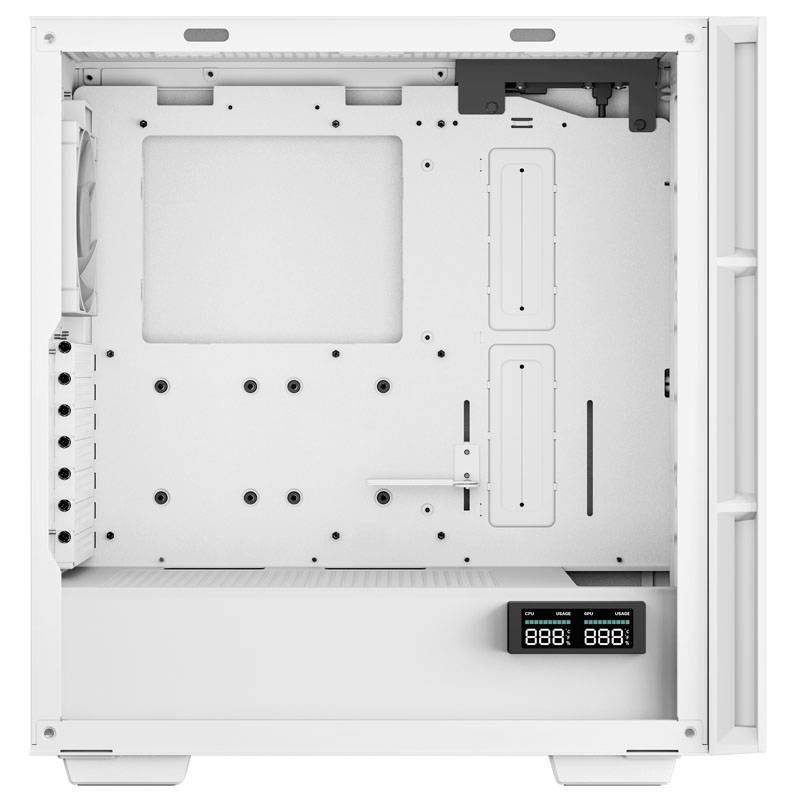

A blank, white computer tower with an open side panel. The interior reveals mounting points and a digital display located in the bottom right corner.

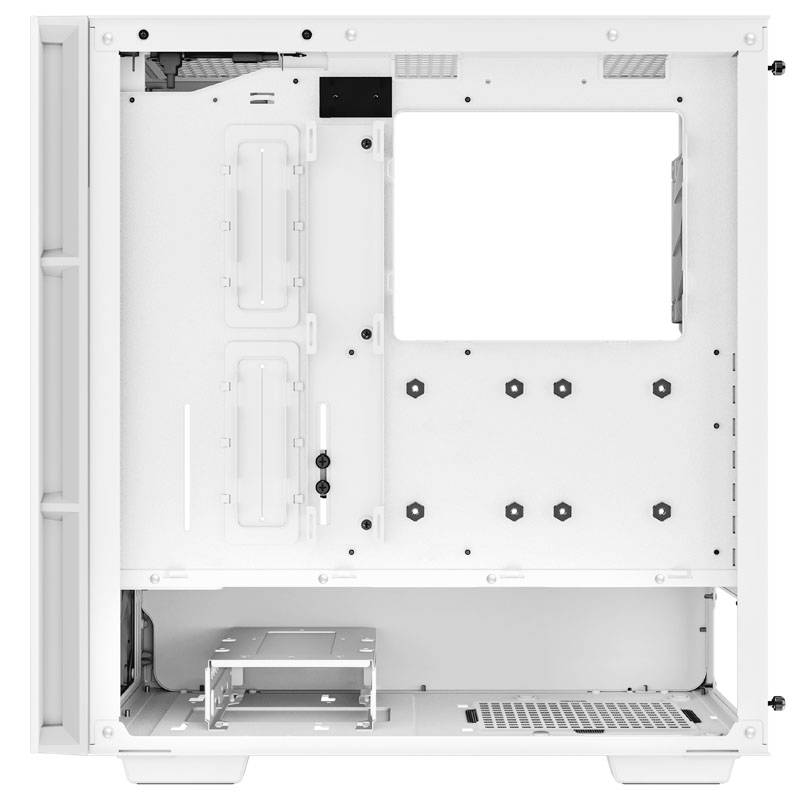

A white PC case from the inside, showing space for components, cable management slots, and a fan bay in the upper area.

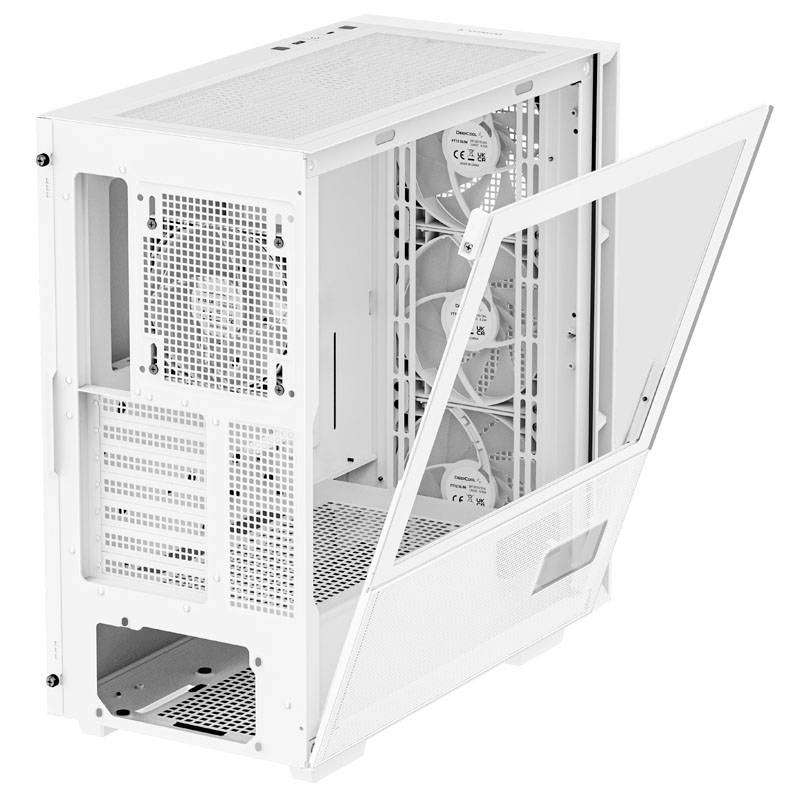

White computer case with open side panel, revealing fans and internal structure. Suitable for PC building and airflow optimisation.

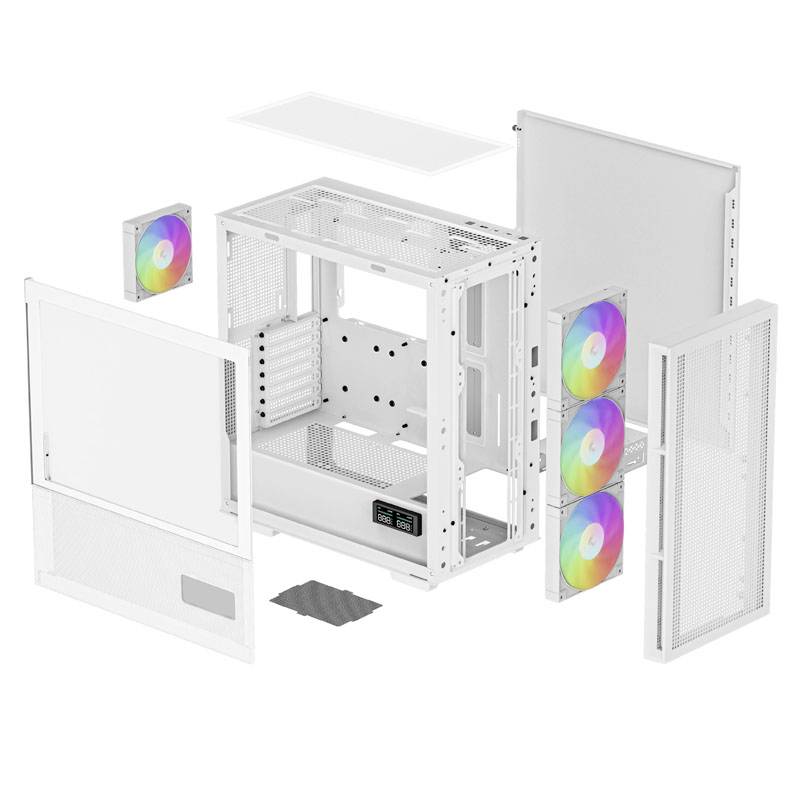

Dismantled white PC tower with RGB fans and removable panels, revealing its internal components and layout.

1/10

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 139.99 / piece)

€ 139.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Deepcool CH560 digital WH Midi tower - white

Midi tower with four integrated RGB fans
Side plate made of tempered glass
Temperature display on the side
Cover, base and front with ventilation holes
Optimum cooling thanks to space for up to six fans
360 mm radiators on the front possible
Graphics cards up to a length of 370 mm possible
Maximum CPU-cooler height of 163 mm

Technical specifications

Material: Steel, tempered glass
Total fans possible: 3x 120 mm / 3x 140 mm (front), 3x 120 mm or 2x 140 mm (lid), 1x 120 mm or 140 mm (rear side) 2x 140 mm (power-supply shaft)
Pre-installed fan: 3x 140 mm fan (front), 1x 110 mm fan (rear)
Radiator-Mountings: 1x max. 360 mm, 1x max. 360 mm, 1x max. 140 mm (rear-side)
Drive bays: 2x 2.5" (HDD cage), 2x 3.5" (PSU bay)
Mains adapter 1x Standard ATX
Extension slots 7
I/O-Panel: 1x Power button, 1x USB 3.0 (type A, USB 3.2 Gen 1, max. 5 Gbps), 1x USB 3.0 (type C, max. 5 Gbps), 1x 3.5 mm combo port
Maximum graphics card length 380 mm
Maximum CPU-cooler height 175 mm

Product type: PC casing

Case type: Midi tower

Factory colour: White

Interfaces (front): Headphone/mic combo jack (3.5 mm)
USB A (USB 3.1 1st gen)
USB A (USB 3.2 1st gen)

6.4 cm (2.5") internal slots: 2

8.9 cm (3.5") internal slots: 2

Width: 230 mm

Height: 471 mm

Depth: 458 mm

Weight: 7500 g

Form factor: Micro-ATX
Mini-ITX
ATX
E-ATX

No. of USB type A 3.0 ports: 1 x

No. of USB 3.0 ports: 1 x

Wireless charging: No

Dim: (W x H x D) 230 x 471 x 458 mm

Features: 4 built-in fans

Keyboard layout: German, QWERTZ

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2996575 DeepCool CH560 Digital WH Midi tower PC casing White 4 built-in fans

Description

Midi tower with tempered glass, RGB fans, temperature display and good airflow
With the DeepCool CH560 Midi-Tower you are making no compromises when it comes to the aesthetics and the cooling of your gaming PC. A total of four pre-installed RGB fans provide good airflow and breathtaking light effects.

The side part is made of tempered glass and enables an excellent view of your installed components. The front side consists of a perforated front for a good fresh air supply. The side part also has an integrated temperature display. Reading temperatures has never been easier.

Good airflow thanks to perforated front
The DeepCool CH560 offers good airflow for high-end hardware. There are ventilation holes on the underside and front to ensure enough cool fresh air is held in place. In addition, the lid of the casing is perforated and thus transports the heated air reliably out of the casing.

In addition, you have the option to fit nine 120 mm or six 140 mm fans in the CH560 to provide continuous effective cooling. The front offers space for three 120 mm or 140 mm fans, the lid allows three 120 mm or two 140 mm fans and the rear side has space for a 120 or 40-series fan. In addition, two more 120-mm fans can be attached on the power supply shaft.

Many mounting options for radiators
If you plan to add water to your system, then you are well placed with the DeepCool CH560. You can accommodate a 360 mm radiator in the front and a 360 mm radiator in the lid. In addition, you can also install a 140 mm radiator on the rear side, in case you want to use a small AiO-water cooling for cooling your CPU.

Plenty of space for your gaming hardware
Two 3.5-inch data carriers can be stored in the power supply bay. There are additional two holders at the back of the mainboard tray for two 2.5 inch data carriers.

In addition, graphic cards up to a length of 380 mm and CPU-cooler can be installed up to a height of 175 mm.

Well-equipped I/O-panel
The I/O panel provides a power button, HD audio and microphone connector, a USB 3.0 type A connector and a USB 2.0 type A connector for faster file transfer.
