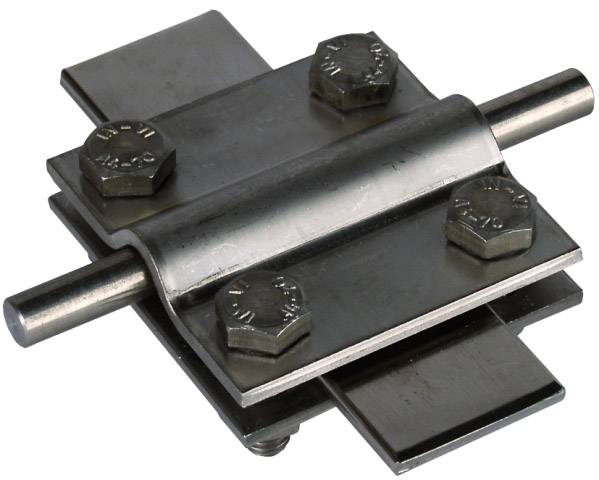

DEHN 318209 KS 8.10 FL30 V4A X piece 7.4 kA
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Clamping range Rd/Fl: 8-10/30 mm
- Clamping range fl/Fl: 30 / 30 mm
- Clamping range multi-wired/rope: 50 - 70 mm²
- Product type
X piece
- Leakage current
7.4 kA
- Manufacturer part #
318209
- Factory colour
Multicolour
- Standards
DIN EN 62561-1
- Dim
(L x W) 60 mm x 60 mm
- Length
60 mm
- Width
60 mm
- Content
1 pc(s)
- Connection type
DIN connector
- Weight
0.25
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1967996 DEHN 318209 KS 8.10 FL30 V4A X piece 7.4 kA
User & Safety Instructions
User & Safety Instructions 1967996 DEHN 318209 KS 8.10 FL30 V4A X piece 7.4 kA
Description
Cross pieces according to DIN EN 62561-1, for upper and underground connection of round and flat cables. Design without intermediate plate with screws M8.
