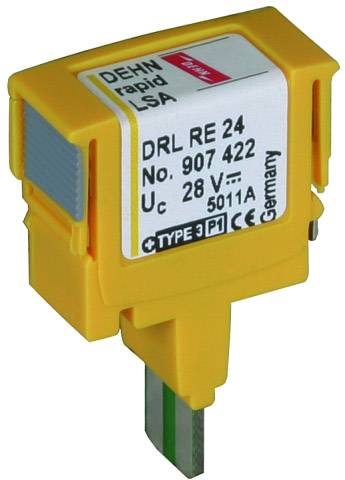

DEHN 907422 DRL RE 24 Surge arrester Surge protection for: Switchboards 10 kA 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
DEHN + SONS STRAIN 907422 surge suppressor strain rapid S DRL RE 24
- Low voltage protection level for devices protection
- Energy-coordinated to S DRL plug-in magazine
- Can be used after the lightning protection zones concept at the interfaces 1 - 2 and higher
Technical specifications
- Product type
Surge arrester
- Surge protection for
Switchboards
- Leakage current
10 kA
- Nominal voltage
24 V
- Operating temperature
-40 °C - +80 °C
IP20 (when connected)
- Manufacturer part #
907422
- Type
3
- Dim
(W x H x D) 9.4 x 22 x 33.4 mm
- Width
9.4 mm
- Height
22 mm
- Depth
33.4 mm
- Content
1 pc(s)
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1967868 DEHN 907422 DRL RE 24 Surge arrester Surge protection for: Switchboards 10 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1967868 DEHN 907422 DRL RE 24 Surge arrester Surge protection for: Switchboards 10 kA 1 pc(s)
Description
Protection plug 1DA energetically coordinates to S DRL plug-magazine as a single-stage terminals protection with decoupling impedances. Particularly suitable for signal circuits with a common reference potential. Grounding via EF 10 S DRL. Only for separating strips or S DRL plug-magazine.
This text is machine translated.
