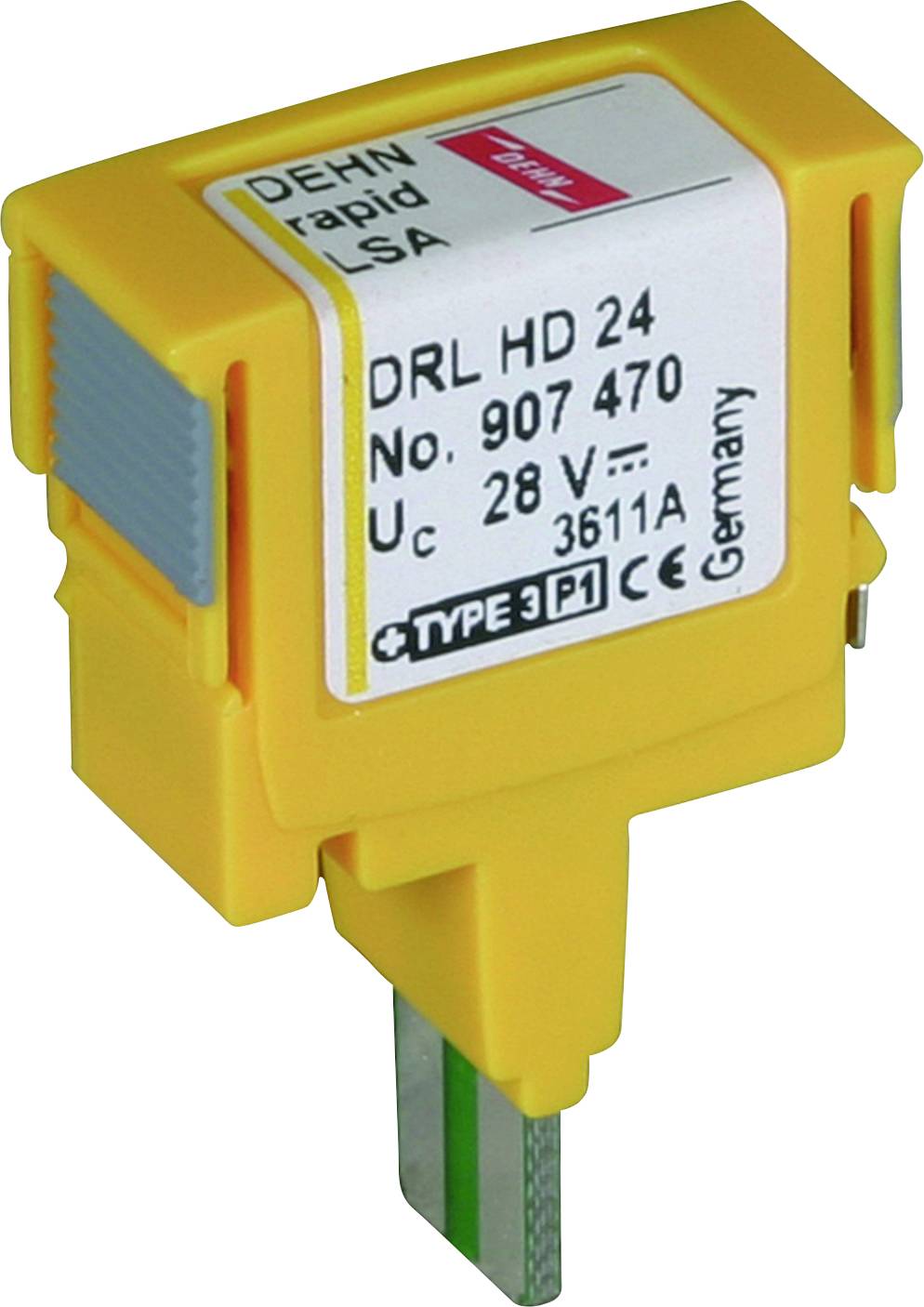

DEHN 907470 DRL HD 24 Surge protection plug 10 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Cut-off frequency 94 MHz
- Maximum continuous voltage AC 19.5 V.
- Highest continuous voltage DC 28 V
- With remote signaling contact: No.
- Mounting type: LSA-Plus plug-in
- Nominal load current 0.4 A.
- Protection level wire/wire 46 V
- Product type
Surge protection plug
- Leakage current
10 kA
- Nominal voltage
24 V DC
- Manufacturer part #
907470
- Compatible with (details)
Information/MSR technology
- Content
1 pc(s)
LSA-plus plug-in
FALSE
IP20
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2302939 DEHN 907470 DRL HD 24 Surge protection plug 10 kA 1 pc(s)
