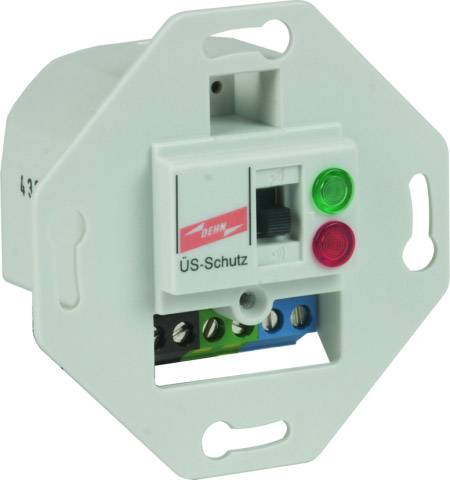

DEHN 924370 DSA 230 LA Surge protection (built-in) 5 kA 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
DEHN + SONS STRAIN 924370 surge suppressor strain safe DSA 230 LA
- For use in device installation sockets and in cable channels
- Optical multiple operating display
- Programmable acoustic function
Technical specifications
- Product type
Surge protection (built-in)
- Leakage current
5 kA
- Nominal voltage
230 V
- Pick-up time (details)
100 ns
- Operating temperature
-25 °C to 40°C °C
IP20
- Manufacturer part #
924370
- Type
3
- Factory colour
Multicolour
- Dim
(W x H x D) 70 x 70 x 31 mm
- Width
70 mm
- Height
70 mm
- Depth
31 mm
- Content
1 pc(s)
- Weight
90 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1967975 DEHN 924370 DSA 230 LA Surge protection (built-in) 5 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1967975 DEHN 924370 DSA 230 LA Surge protection (built-in) 5 kA 1 pc(s)
Description
Surge suppressor type 3 according to EN 61643, safety deposit box 230 LA stretching with monitoring equipment and Disconnection device disconnects. Increased security by confusion secure Y-protective circuit. For the protection of electronic devices from surges. For installation in electrical installation systems, such as Cable channels and device installation sockets. For use in lightning protection zones concept at the interfaces 1 - 2 and higher.
