DEHN 924389 DFL A 255 Surge protection (built-in) 5 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

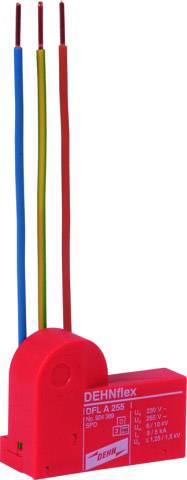

DEHN + SONS STRAIN 924389 surge suppressor strain FLEX DFL A255
- Acoustic defect display
- Compact design
Technical specifications
- Product type
Surge protection (built-in)
- Leakage current
5 kA
- Nominal voltage
230 V
- Pick-up time (details)
<100 ns
- Operating temperature
-25 °C - + 40 °C
IP20
- Manufacturer part #
924389
- Type
3
- Dim
(L x W x H) 46 x 36 x 19 mm
- Length
46 mm
- Width
36 mm
- Height
19 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1967860 DEHN 924389 DFL A 255 Surge protection (built-in) 5 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1967860 DEHN 924389 DFL A 255 Surge protection (built-in) 5 kA 1 pc(s)
Description
Two-pole surge arresters, type 3 according to EN 61643, stretching flex with monitoring equipment and Disconnection device disconnects. Increased security by confusion secure Y-protective circuit. For the protection of electronic devices from surges. For installation in electrical installation systems, such as Under floor systems. For use in lightning protection zones concept at the interfaces 1 - 2 and higher.
This text is machine translated.
This text is machine translated.
