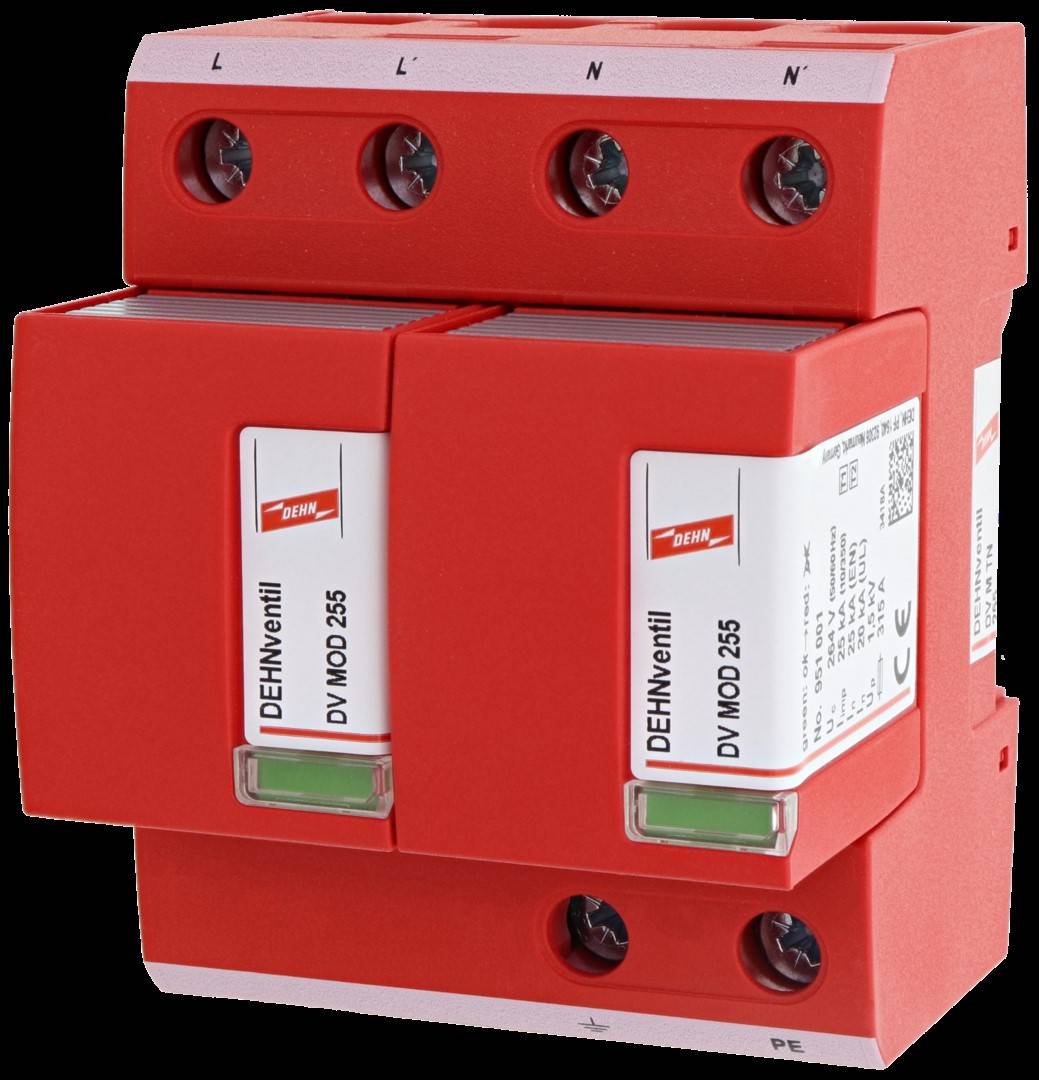

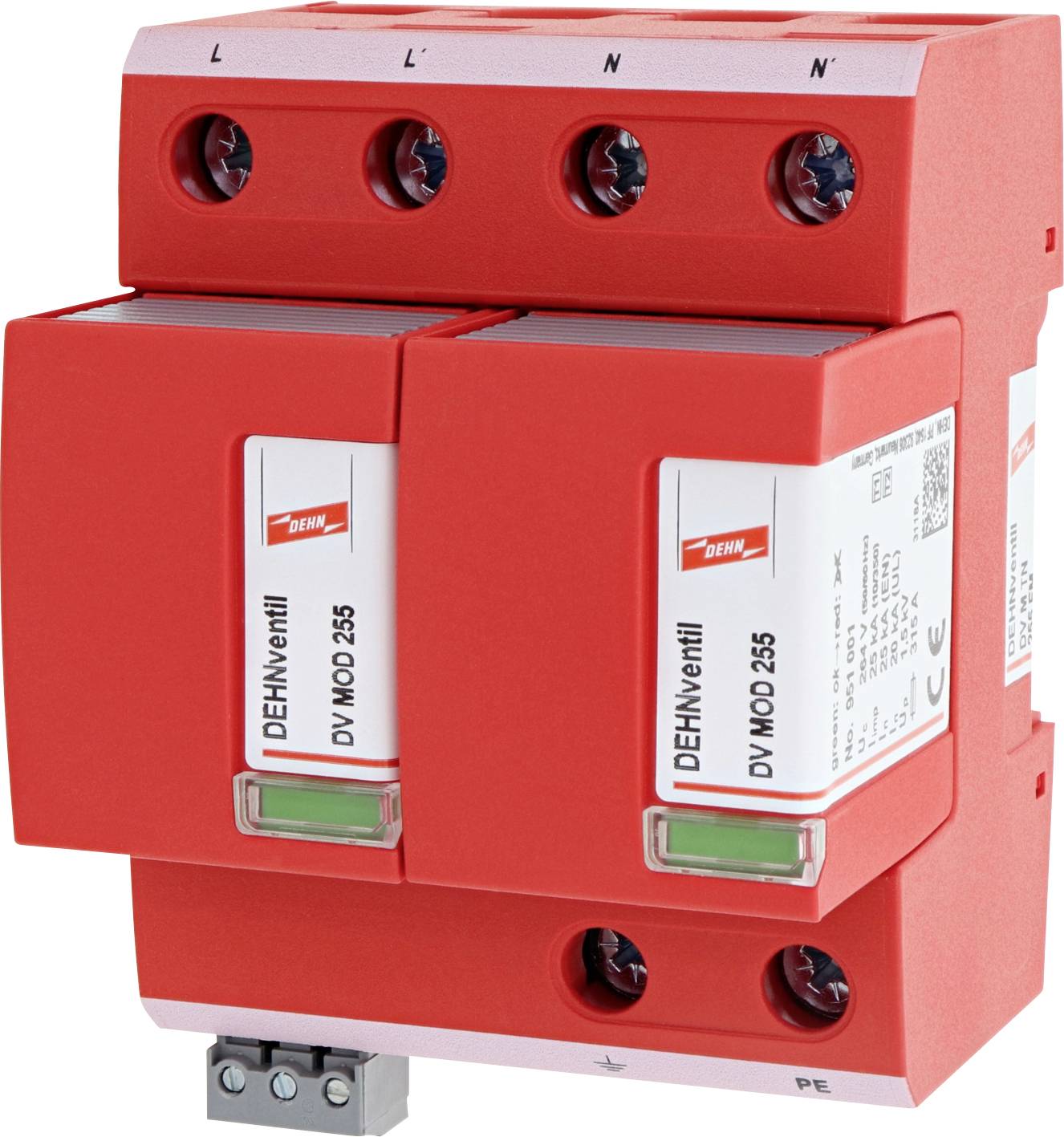

DEHN 951205 DV M TN 255 FM Lightning conductor Piece 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Size: 4 HP
- Surge current 50 kA
- Energy-coordinated protective effect to the terminal: Yes
- Remote signaling: Yes
- Subsequent current erasability: 50 kA
- Highest continuous voltage: 264 V AC
- Integrated fuse: No.
- Max. Conductor cross-section flexible fine strand 35 mm²
- Max. Conductor cross-section rigid single/multi-wire: 50 mm²
- Mounting type: DIN rail 35 mm
- Mains form: TN
- Protection level 1.5 kV
- Protection level N-PE: 1.5 kV
- Signaling on the device: Optical
- Specific energy 625 kJ/ohm
- Product type
Lightning conductor
- Nominal voltage
230 V AC
- Operating temperature
-40 to 80 °C
- Manufacturer part #
951205
- Type
1 + 2
- Compatible with (details)
Energy Engineering
- Standards
EN 61643-11
- Content
1 pc(s)
- Packaging type
Piece
- Number of pins
2
- UKCA
yes
