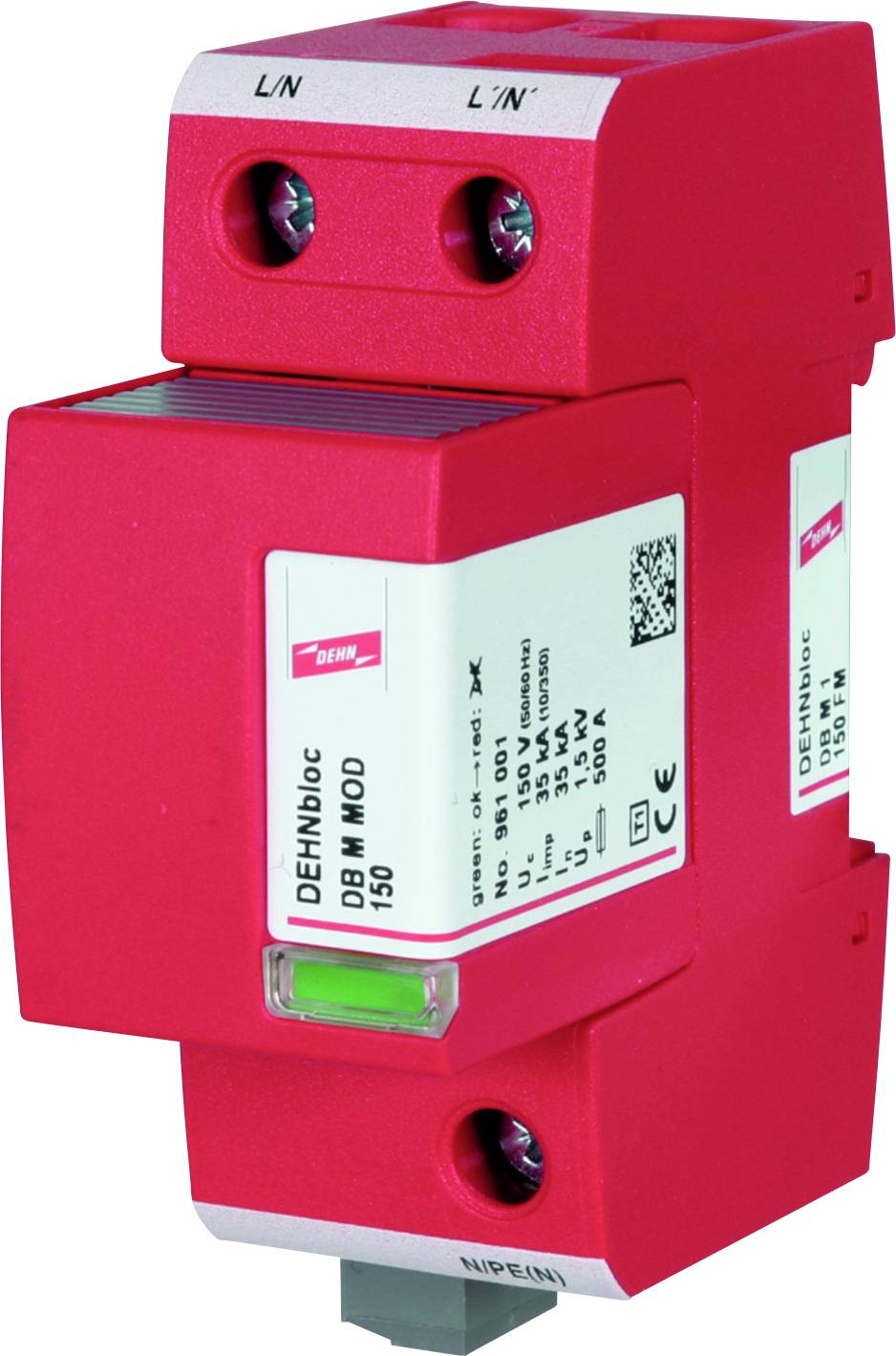

DEHN 961115 DB M 1 150 FM Surge arrester Piece 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design of the poles: 1
- Size: 2 HP
- Surge current 35 kA
- Subsequent current erasability: 35 kA
- Maximum continuous voltage AC 150 V.
- Integrated fuse: No.
- Max. Conductor cross-section flexible fine strand 35 mm²
- Max. Conductor cross-section rigid single/multi-wire: 50 mm²
- With remote signaling contact: Yes
- Mounting type: DIN rail 35 mm
- Protection level 1.5 kV
- Signaling on the device: Optical
- Specific energy: 306.25 kJ/ohm
- Product type
Surge arrester
- Nominal voltage
120 V AC
- Manufacturer part #
961115
- Type
1
- Compatible with (details)
Energy Engineering
- Standards
EN 61643-11
- Content
1 pc(s)
- Packaging type
Piece
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2303283 DEHN 961115 DB M 1 150 FM Surge arrester Piece 1 pc(s)
