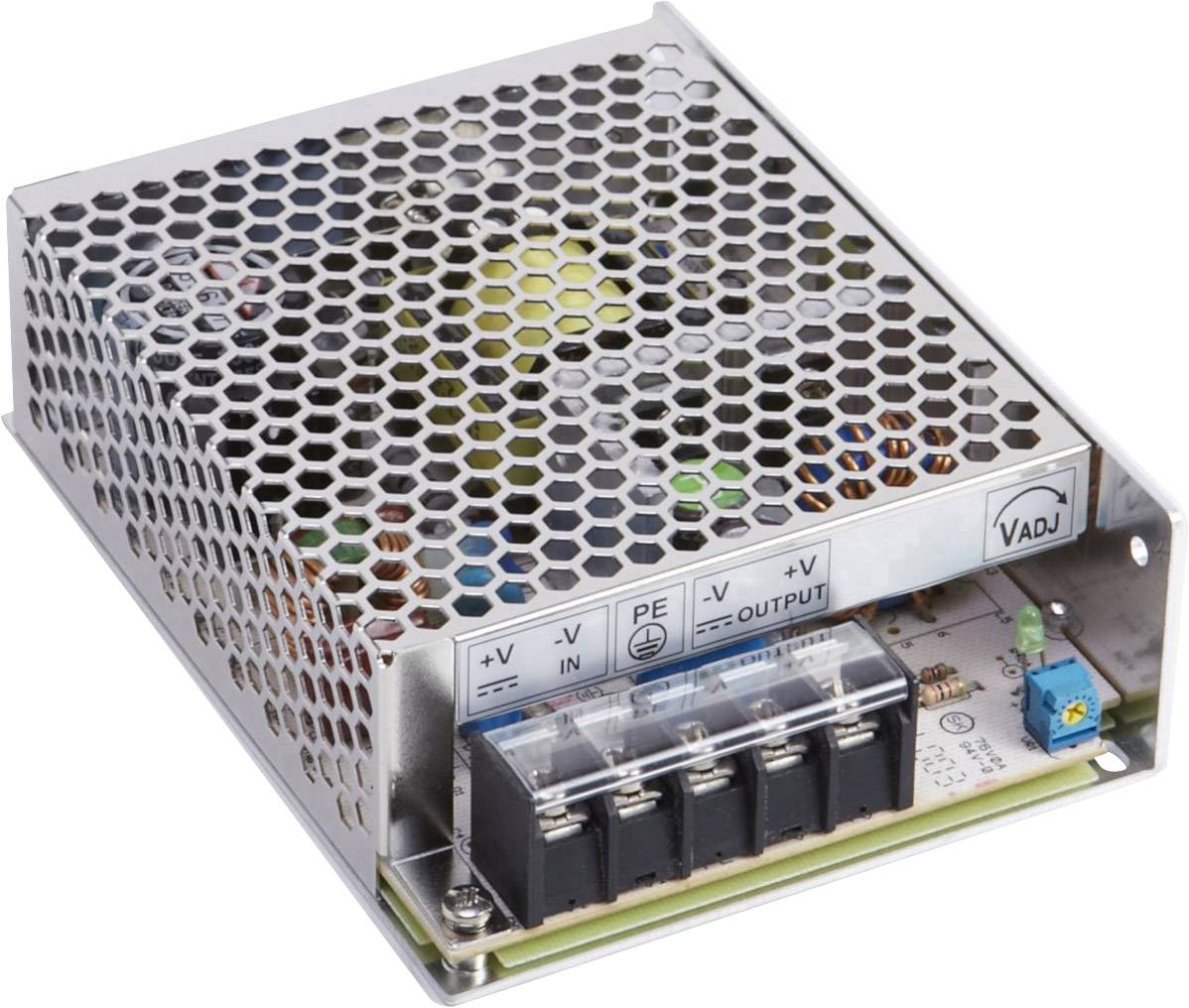

Dehner Elektronik SDS 075L-12 DC/DC converter 6 A 72 W Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 109.99 / piece)
€ 109.99
incl. VAT
Only 2 Piece(s) available
Highlights & Details
SunPower DC/DC built-in power supply 6 A 72 W 12 V/DC stabilized
- DC/DC switching power supply with wide-range input 9.5VDC to 36VDC
- This text is machine translated.
Technical specifications
- Product type
DC/DC converter
- Type
SDS 075L-12
- Min. input voltage
9.5 V DC
- Input voltage (max.)
36 V DC
- Max. output current
6 A
- Output current (max.) - rounded
6 A
72 W
- Connection
Screw terminal
- PSU features
DC-to-DC converter
- Output voltage (max.)
12 V DC
- Weight
400 g
- Content
1 pc(s)
- Max. operating temperature (derating)
70 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2201330 Dehner Elektronik SDS 075L-12 DC/DC converter 6 A 72 W Content 1 pc(s)
Warranty Terms
Warranty Terms 2201330 Dehner Elektronik SDS 075L-12 DC/DC converter 6 A 72 W Content 1 pc(s)
Description
Standard mounting device, thus identical to products of other power supply manufacturers.Very long service life through the installation of high-quality components such as Nippon Chemi-Con capacitors or similar, thus high MTBF rate. Protection measures against overload, overvoltage and short circuit with automatic restart Wide-range DC voltage input. · Increased temperature range of +70 ºC with derating High efficiency through modern switching technology.
This text is machine translated.
This text is machine translated.
