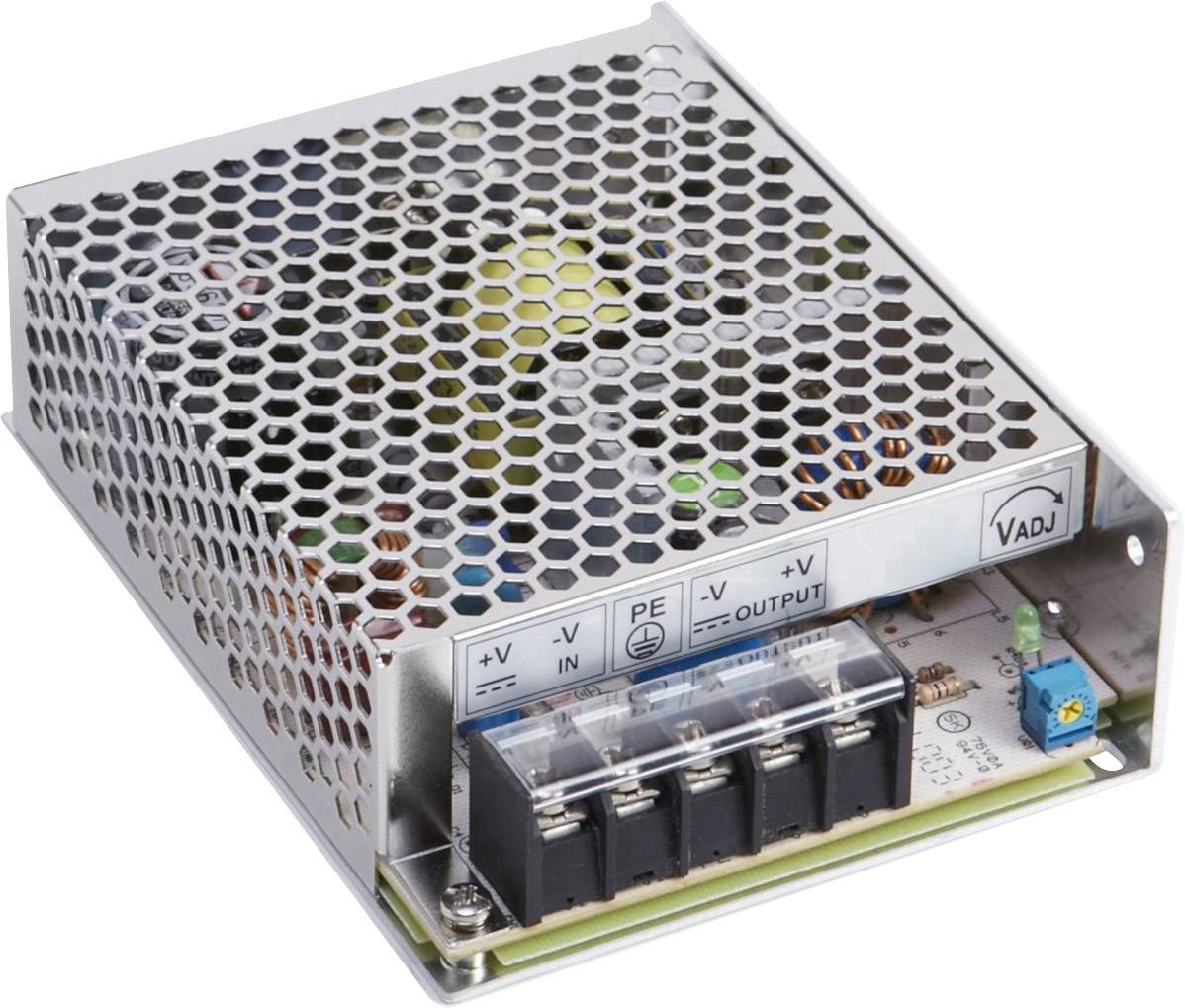

Dehner Elektronik SDS 075M-05 DC/DC converter 12 A 60 W Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 109.99 / piece)
€ 109.99
incl. VAT
Only 3 Piece(s) available
Technical specifications
- Product type
DC/DC converter
- Type
SDS 075M-05
- Min. input voltage
19 V DC
- Input voltage (max.)
75 V DC
- Max. output current
12 A
- Output current (max.) - rounded
12 A
60 W
- Connection
Screw terminal
- PSU features
DC-to-DC converter
- Dim
(L x W x H) 129 x 95 x 38 mm
- Height
38 mm
- Length
129 mm
- Width
95 mm
- Output voltage (max.)
5 V DC
- Weight
400
- Content
1 pc(s)
- Max. operating temperature (derating)
70 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2201315 Dehner Elektronik SDS 075M-05 DC/DC converter 12 A 60 W Content 1 pc(s)
Warranty Terms
Warranty Terms 2201315 Dehner Elektronik SDS 075M-05 DC/DC converter 12 A 60 W Content 1 pc(s)
Description
Standard mounting device, thus identical to products of other power supply manufacturers.Very long service life through the installation of high-quality components such as Nippon Chemi-Con capacitors or similar, thus high MTBF rate. Protection measures against overload, overvoltage and short circuit with automatic restart Wide-range DC voltage input. · Increased temperature range of +70 ºC with derating High efficiency through modern switching technology.
This text is machine translated.
This text is machine translated.
