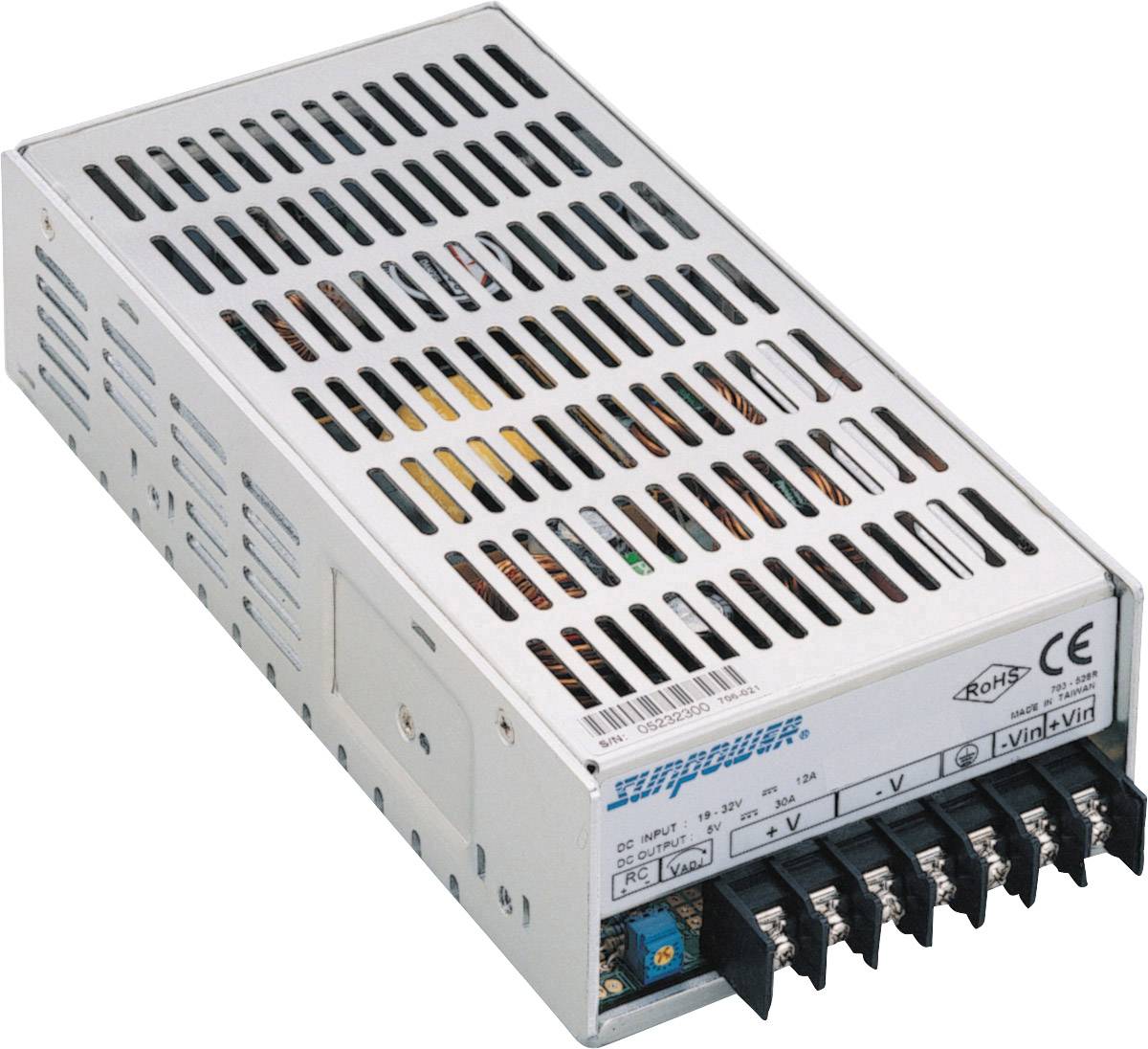

Dehner Elektronik SDS 100M-12 DC/DC converter 8.4 A 100 W Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
Only 9 Piece(s) available
Technical specifications
- Product type
DC/DC converter
- Type
SDS 100M-12
- Min. input voltage
19 V DC
- Input voltage (max.)
72 V DC
- Max. output current
8.4 A
- Output current (max.) - rounded
8.4 A
100 W
- Connection
Screw terminal
- PSU features
DC-to-DC converter
- Dim
(L x W x H) 159 x 95 x 38 mm
- Height
38 mm
- Length
159 mm
- Width
95 mm
- Output voltage (max.)
12 V
- Weight
460 g
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2201319 Dehner Elektronik SDS 100M-12 DC/DC converter 8.4 A 100 W Content 1 pc(s)
Warranty Terms
Warranty Terms 2201319 Dehner Elektronik SDS 100M-12 DC/DC converter 8.4 A 100 W Content 1 pc(s)
Description
Standard mounting device, thus identical to products of other power supply manufacturers.Very long service life through the installation of high-quality components such as Nippon Chemi-Con capacitors or similar, thus high MTBF rate. Protection measures against overload, overvoltage and short circuit with automatic restart Wide-range DC voltage input. · Increased temperature range of +70 ºC with derating High efficiency through modern switching technology.
