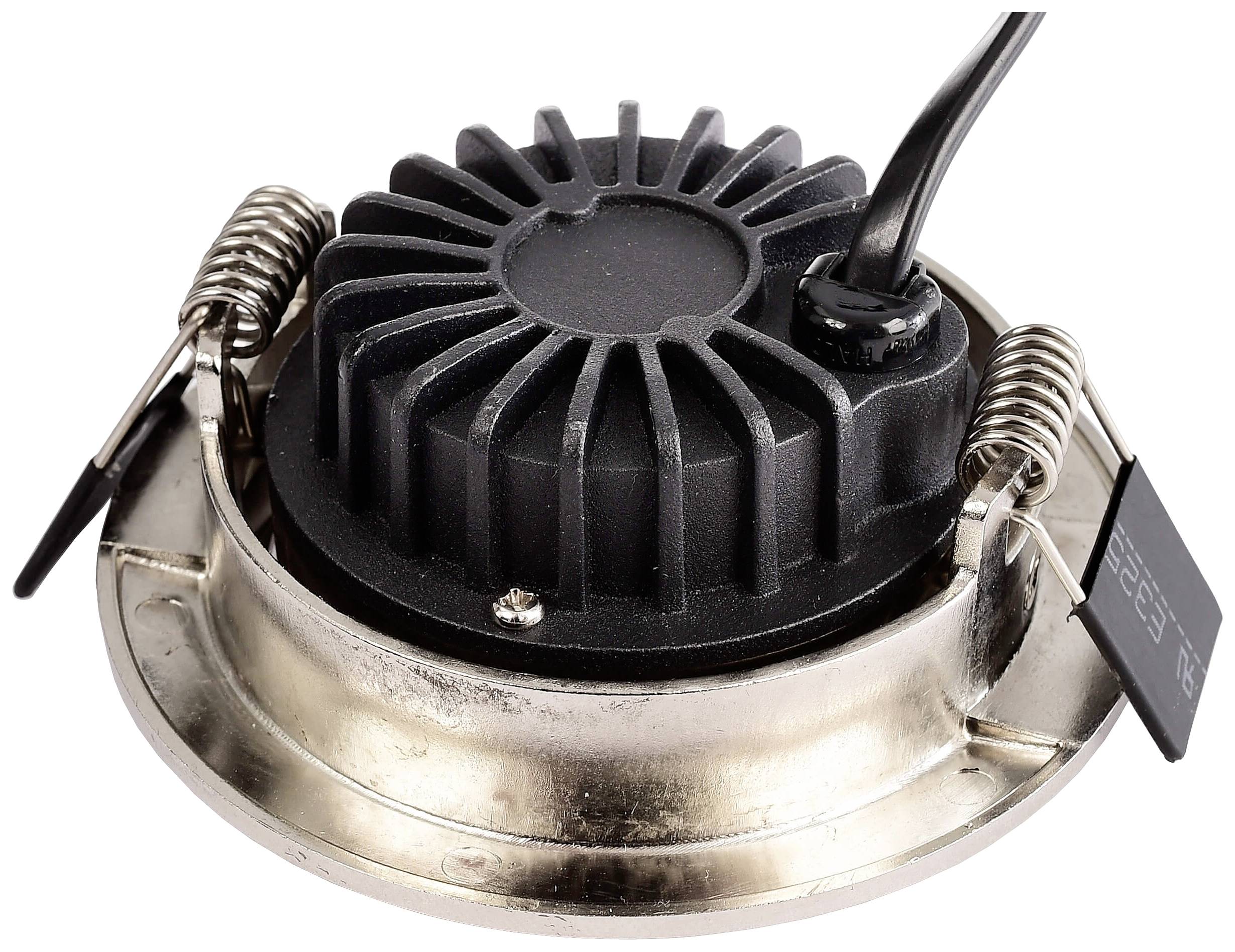

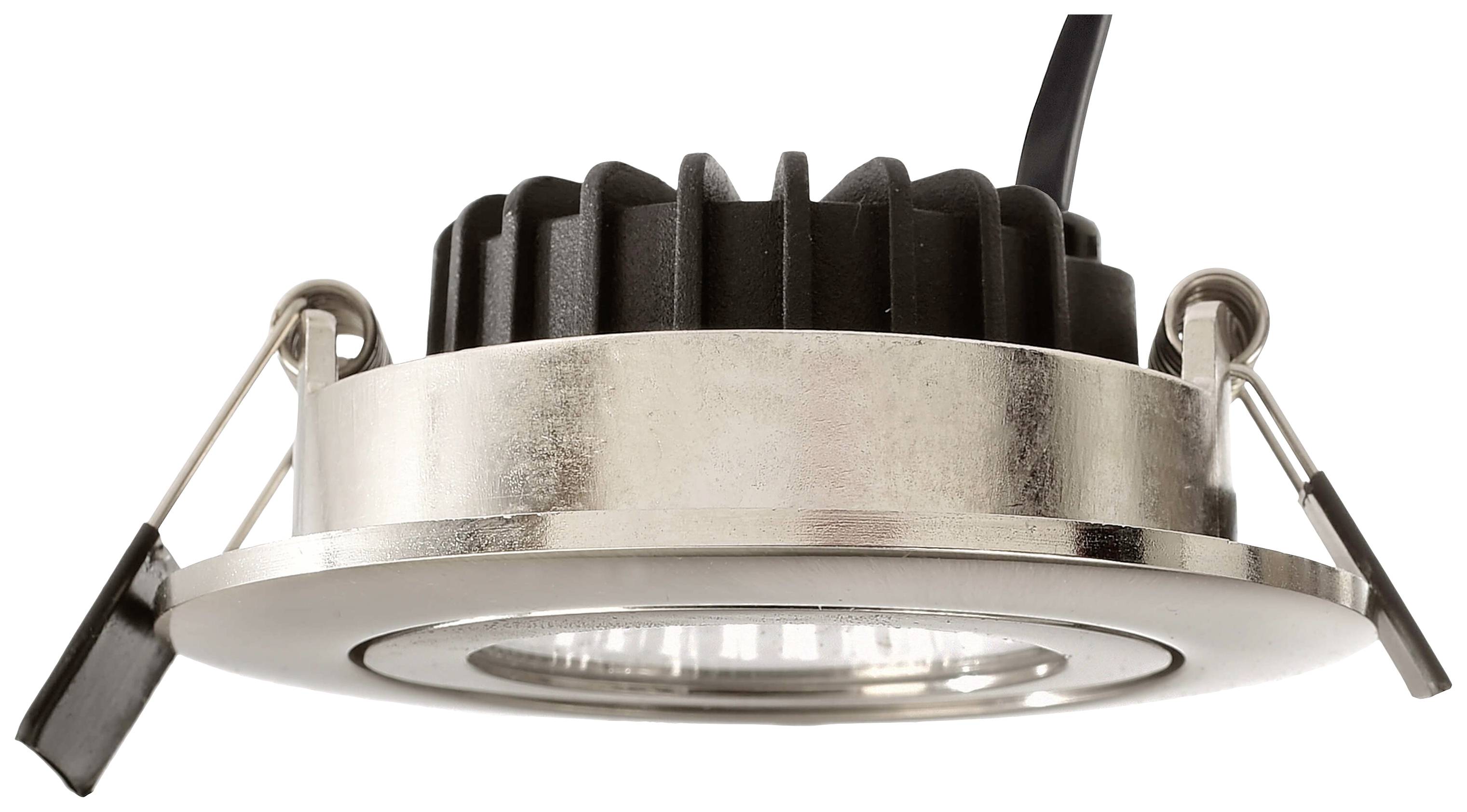

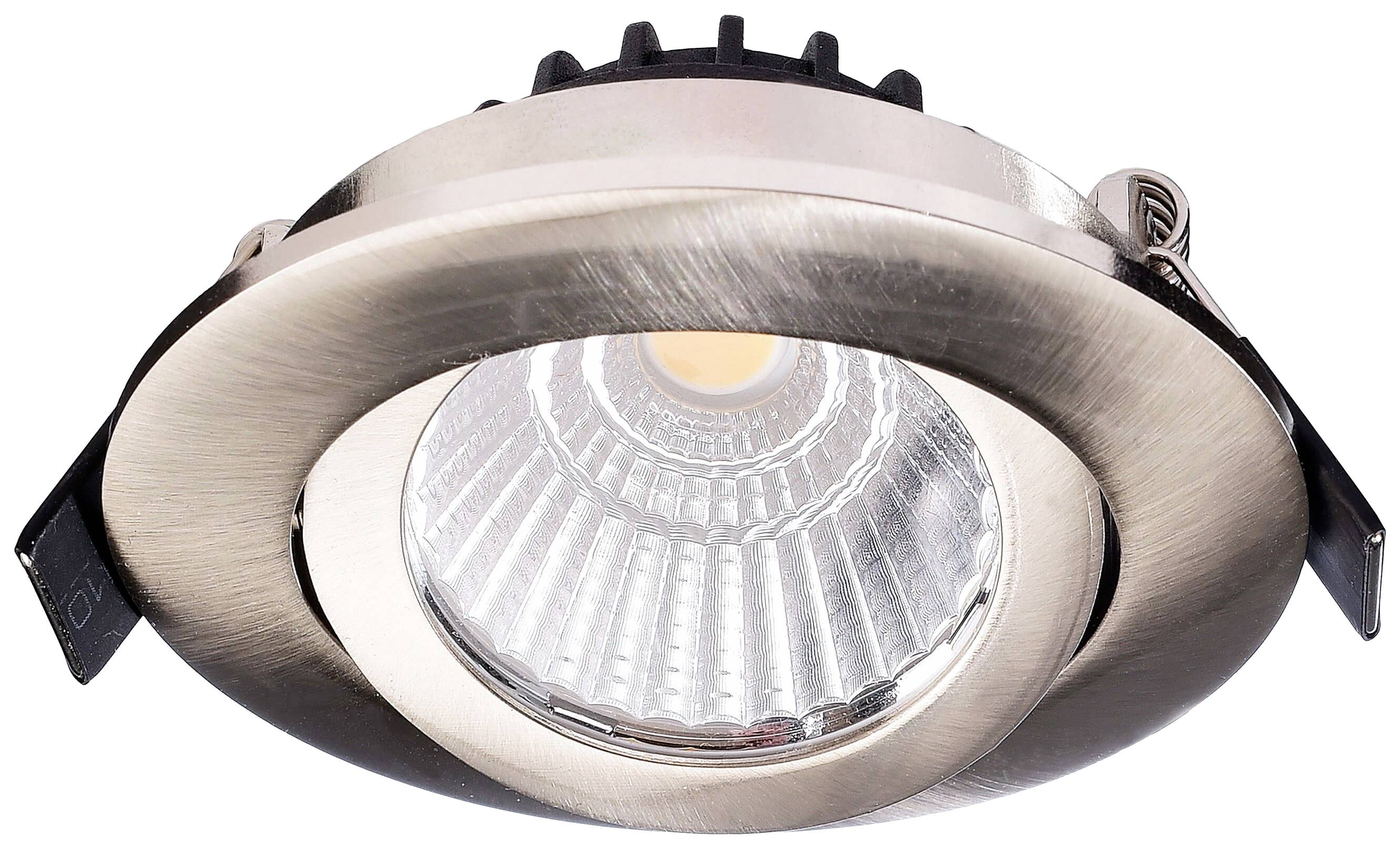

Deko Light 565373 Dione LED recessed light EEC: E (A - G) LED (monochrome) Built-in LED 8.50 W Nickel
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ceiling-mounted light fixture, Dione, 8.5 W, DIM, 4000 K, Nickel, 220-240 V/AC, 50 / 60 Hz
- Power= 8.50 W Total luminous flux= 800 lm Colour temperature= 4000 K Neutral white
Technical specifications
- Input voltage 220-240V AC/50-60Hz
- Activation: Phase-section dimmer
- Colour rendering Ra: 80
- Light intensity 1100 cd
- Switching cycles 25000
- LED type COB
- Terminal connection option
- Including. LED power supply
- Inclination 30°
- Power supply dimensions: 66x35x20 mm
- Dimensions of connection box: 75x39x23 mm
- Ceiling thickness: Max. 13 mm
- Cable length 200 mm
- Product type
LED recessed light
- No. of bulbs
1
Built-in LED
- Bulb type
LED (monochrome)
8.50 W
- Total luminous flux
800 lm
4000 K
- Colour
Neutral white
- Energy consumption
7 kWh/1000h
- Type
Circular
- Radiation angle
36°
- Light features
Swivelling
- Swivel range (max.)
30°
- Recess diameter
68 mm
- Recess depth
38 mm
- Outside Ø
82 mm
IP20
- Protection class
II
- Factory colour
Nickel
- Material
Aluminium
E (A - G)
- Dim
(Ø x H) 82 mm x 41 mm
- Light bulb included
Yes
- Colour temperature range
4000 K
- Height
41 mm
- (Ø)
82 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2998291 Deko Light 565373 Dione LED recessed light EEC: E (A - G) LED (monochrome) Built-in LED 8.50 W Nickel
User & Safety Instructions
User & Safety Instructions 2998291 Deko Light 565373 Dione LED recessed light EEC: E (A - G) LED (monochrome) Built-in LED 8.50 W Nickel
Description

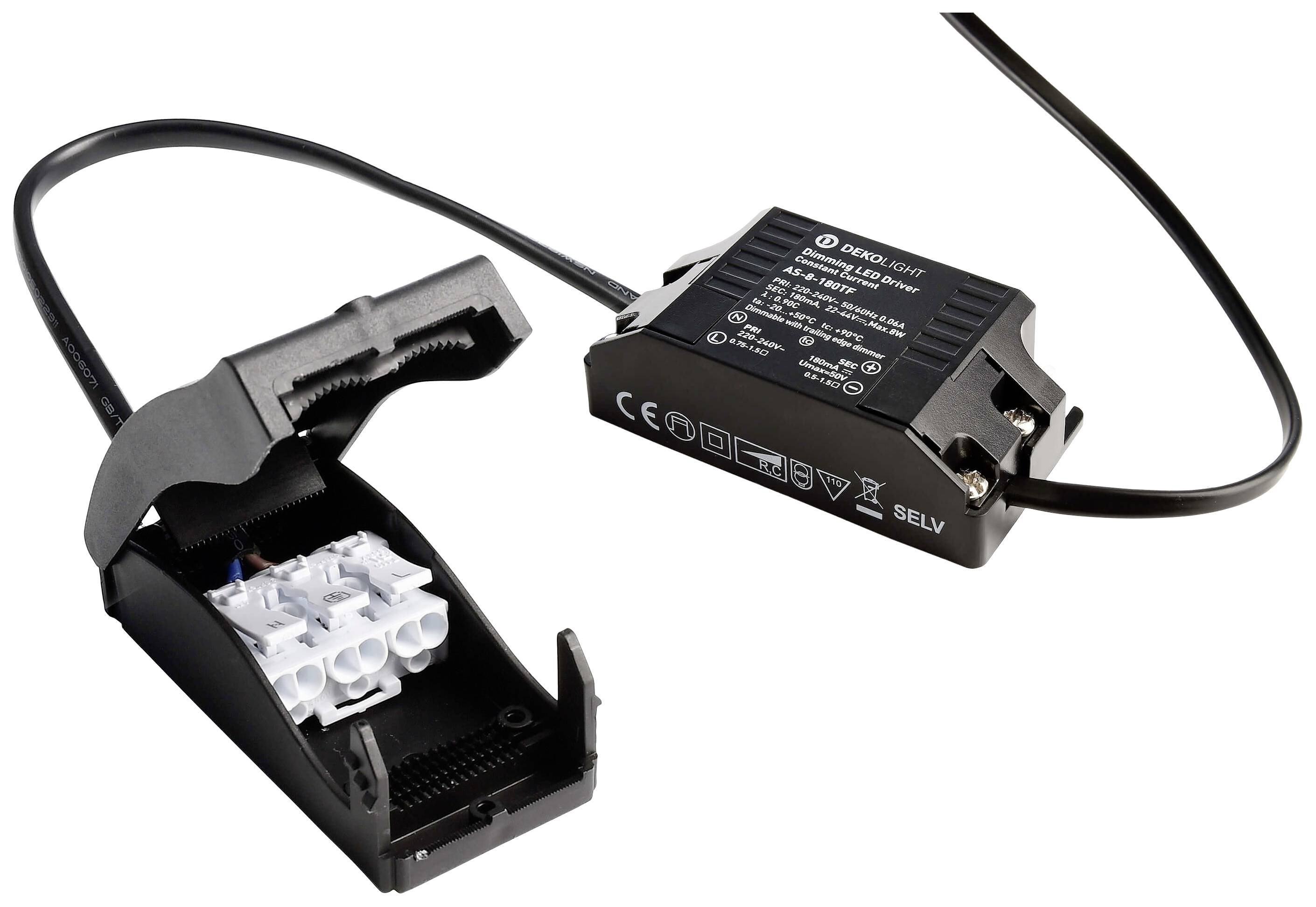

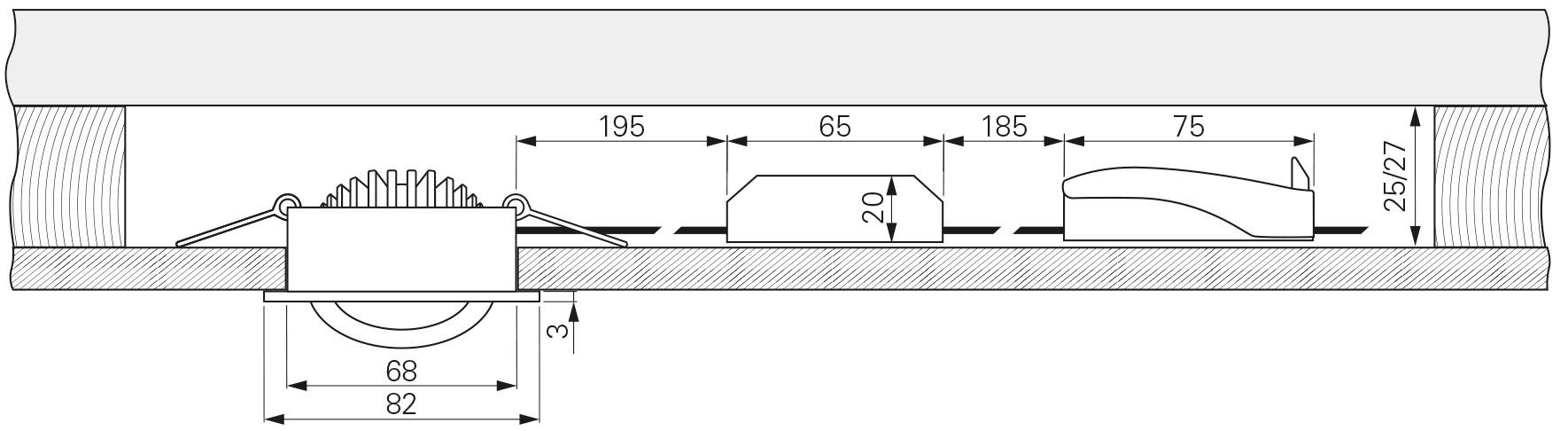

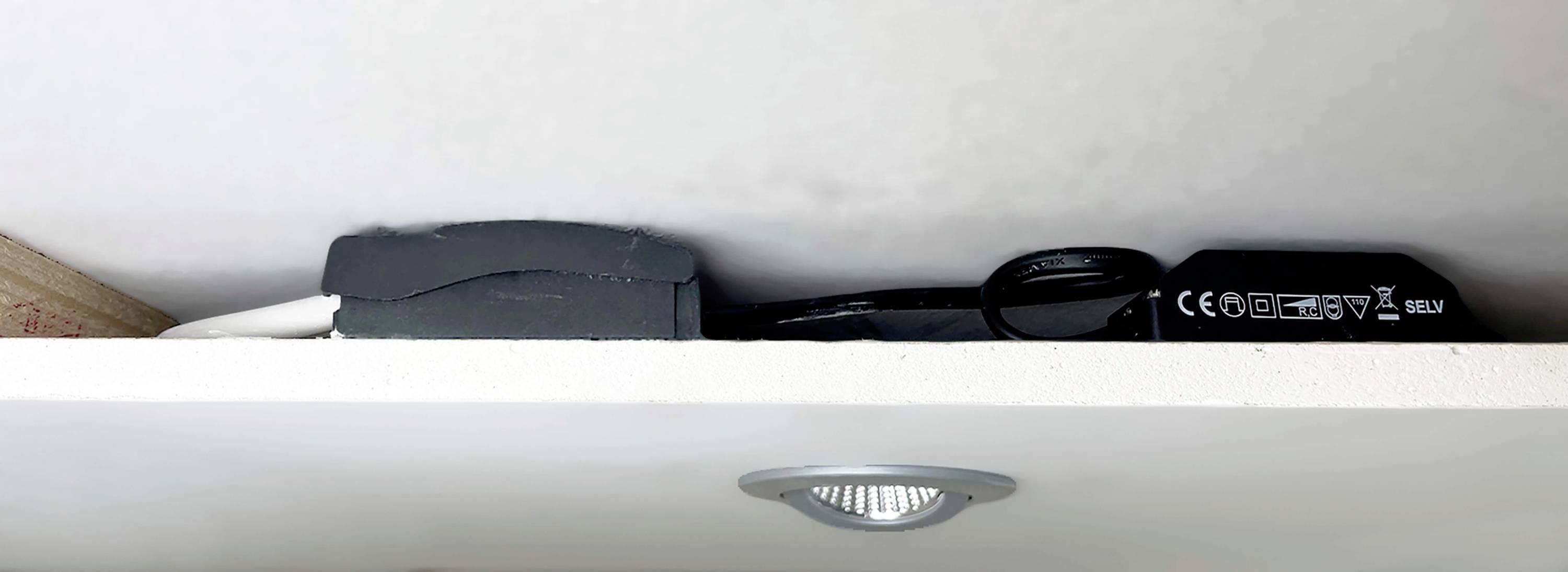

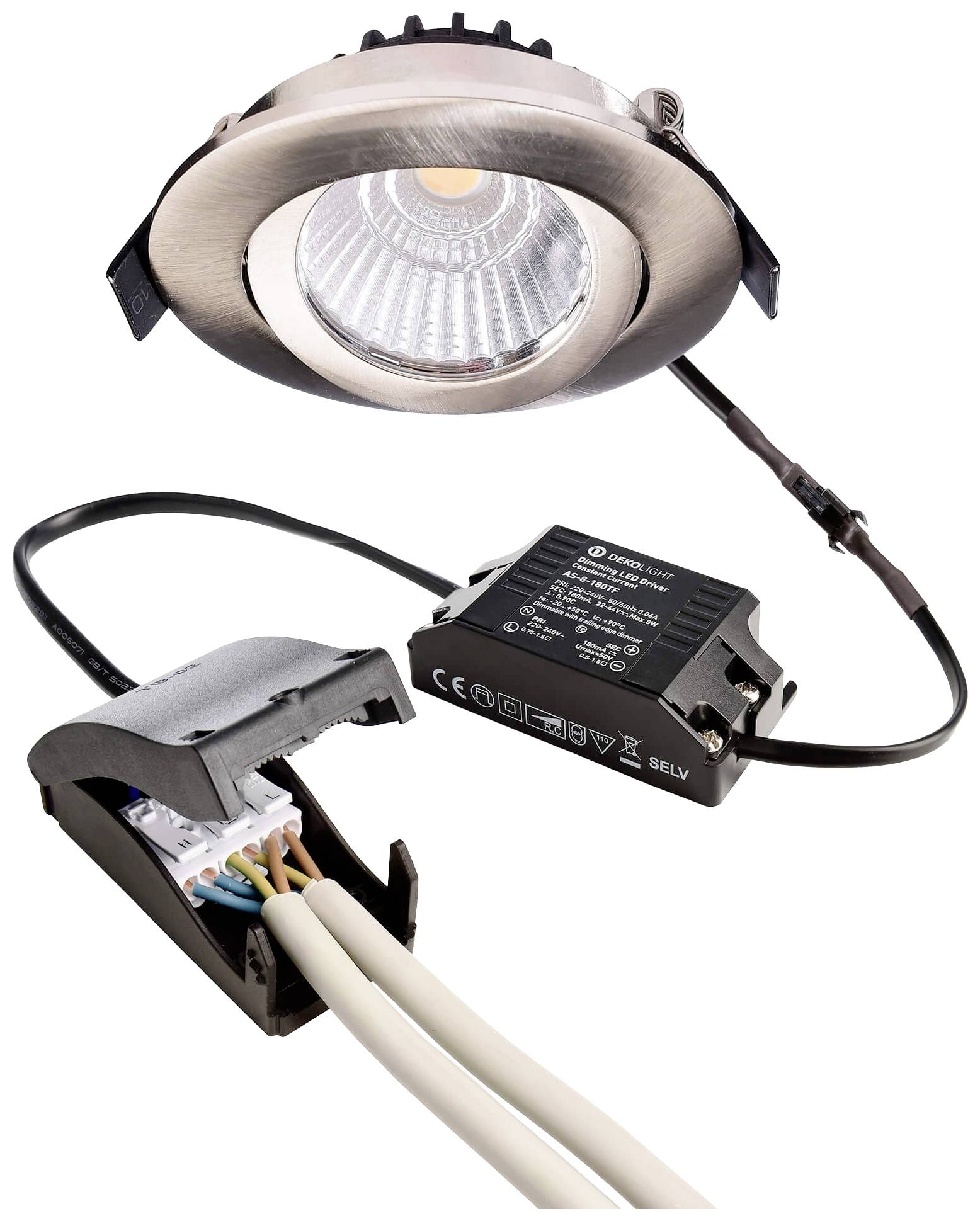

The ceiling mounting spots of the DIONE series impress with their particularly low installation depth. This makes them very space-saving and requires only a ceiling cavity of 25 mm. Also the connection box included in the delivery and the dimmable power supply fit thanks to the compact design into the 68 mm cutout. Since all components for operating the Dione are pre-assembled, a time-saving tool-free installation is possible. The junction box with plug-in terminals enables additional 3-pin through wiring. This makes the DIONE spotlight the ideal solution for retrofitting within a renovation or for new installations with a limited installation space. With the high-quality COB technology, the recessed spotlights can deliver up to 750 lm with an output of 8.5 W. The casing is made of aluminum, the angle of radiation is 36° and the spots are available in the light colors 3,000 K and 4,000 K. The lamp head can be rotated by up to 30°.
This text is machine translated.
This text is machine translated.
Features
- Compact design
- Only 25.5 mm in ceiling hollow space required
- Easy installation with through-wiring
- Tilting
- Cut out dimensions 68 mm
