Deko Light 565751 Downlight - Acrux Pro 145 Flush mount light LED (monochrome) 20 W Traffic white (RAL 9016)

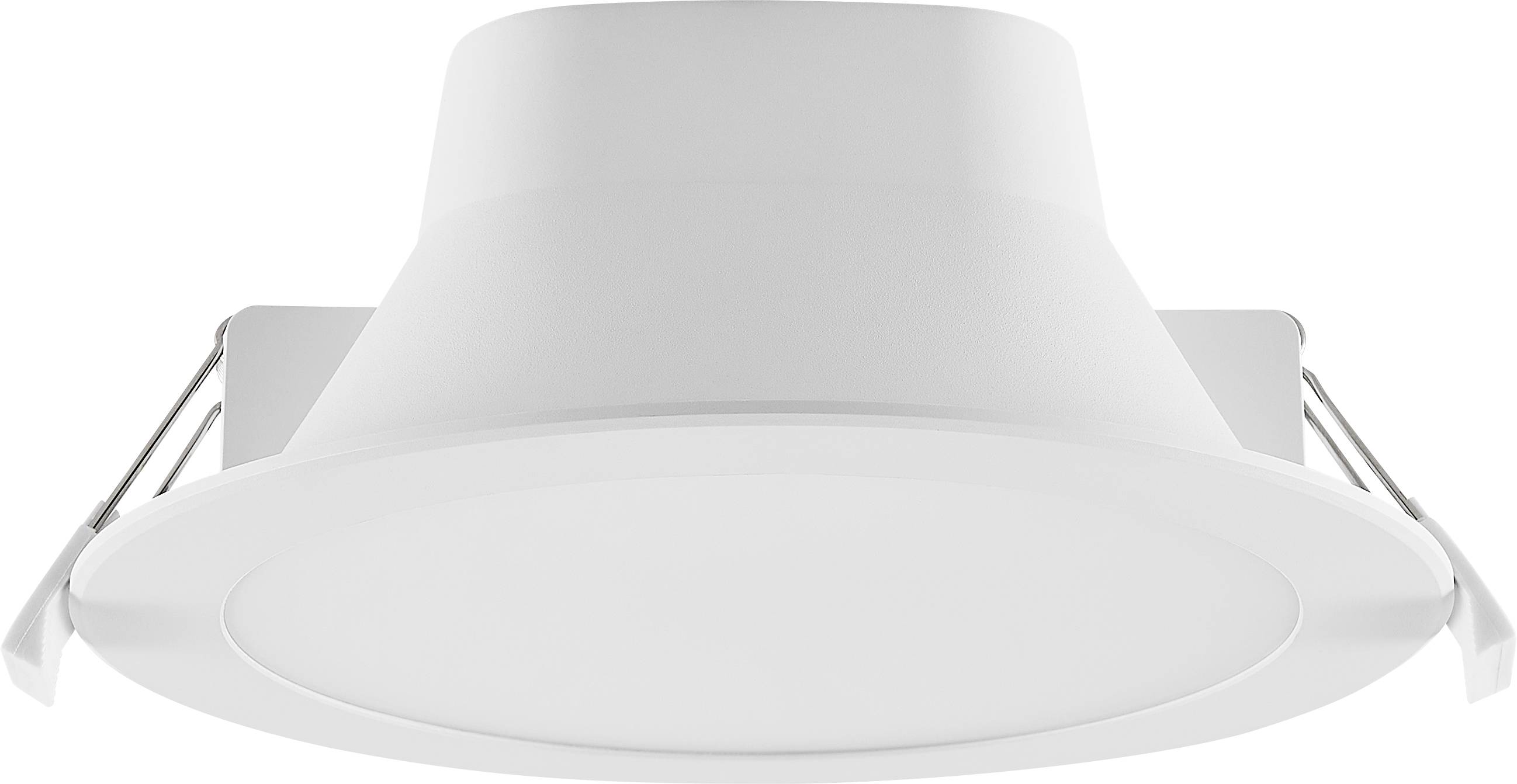

White recessed round LED downlight with spring clips, shown from below on a plain background.

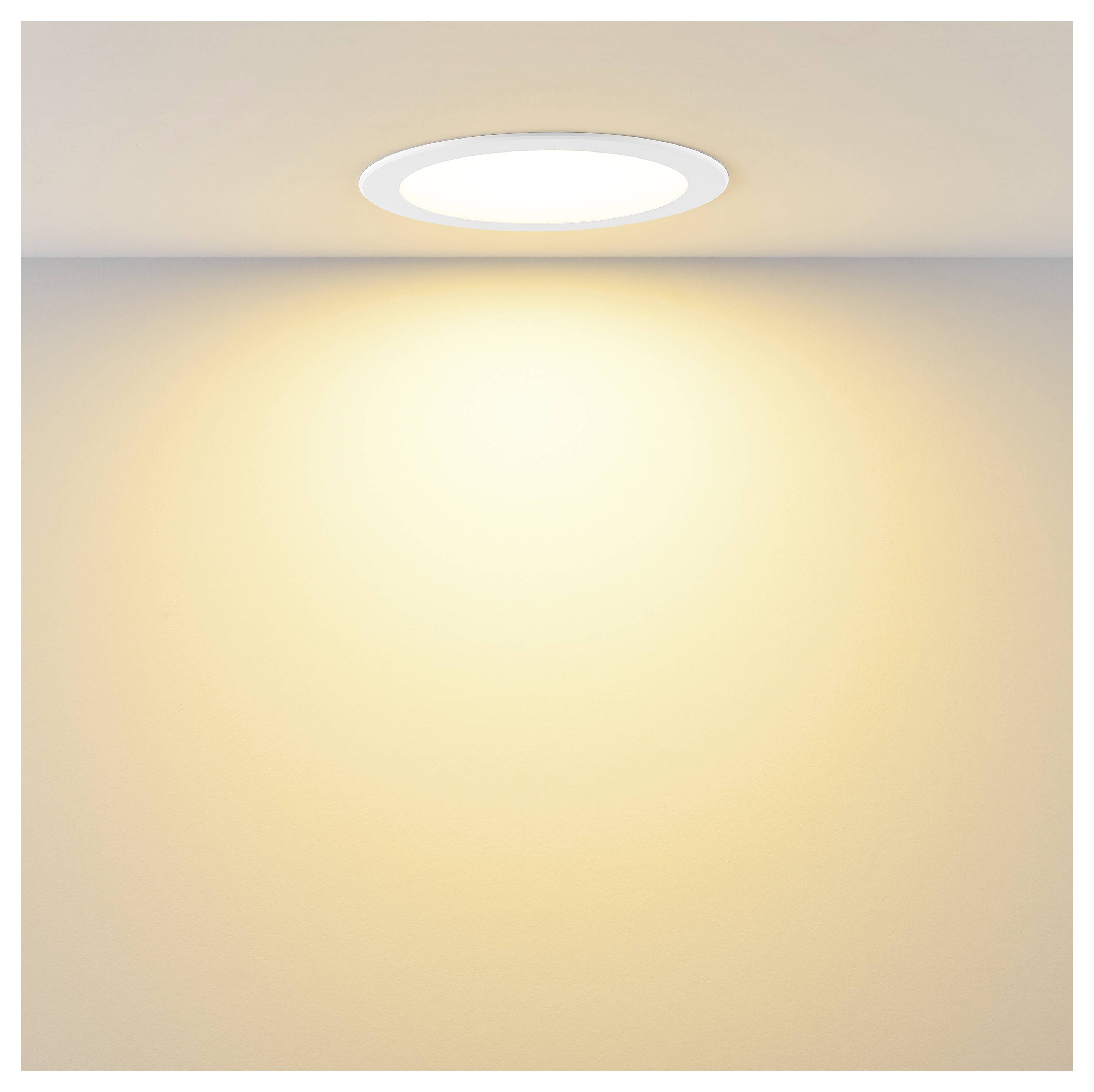

Round recessed ceiling light glowing warmly and casting a soft, bright spotlight on the wall below.

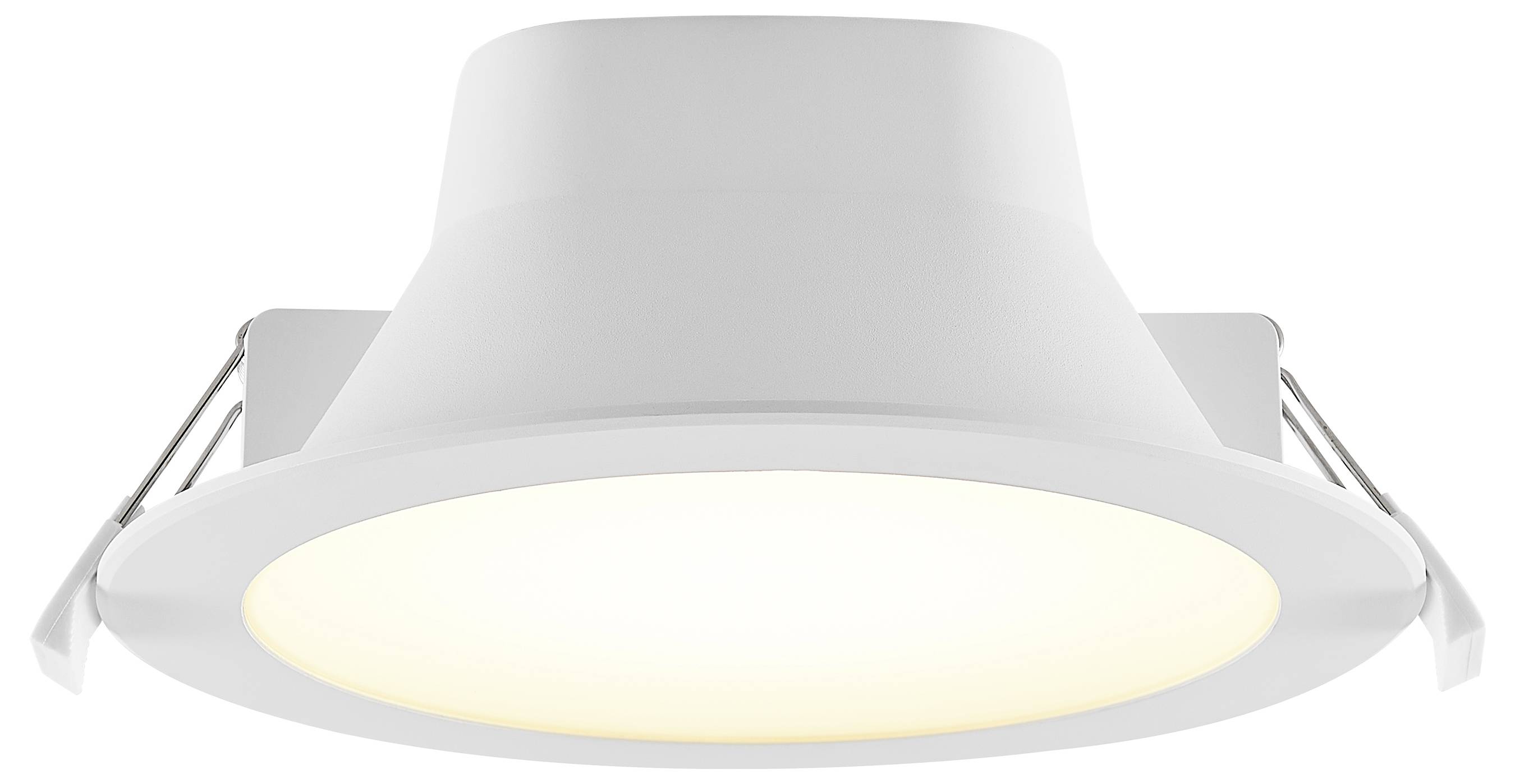

Recessed round LED ceiling light with white trim and glowing diffuser panel.

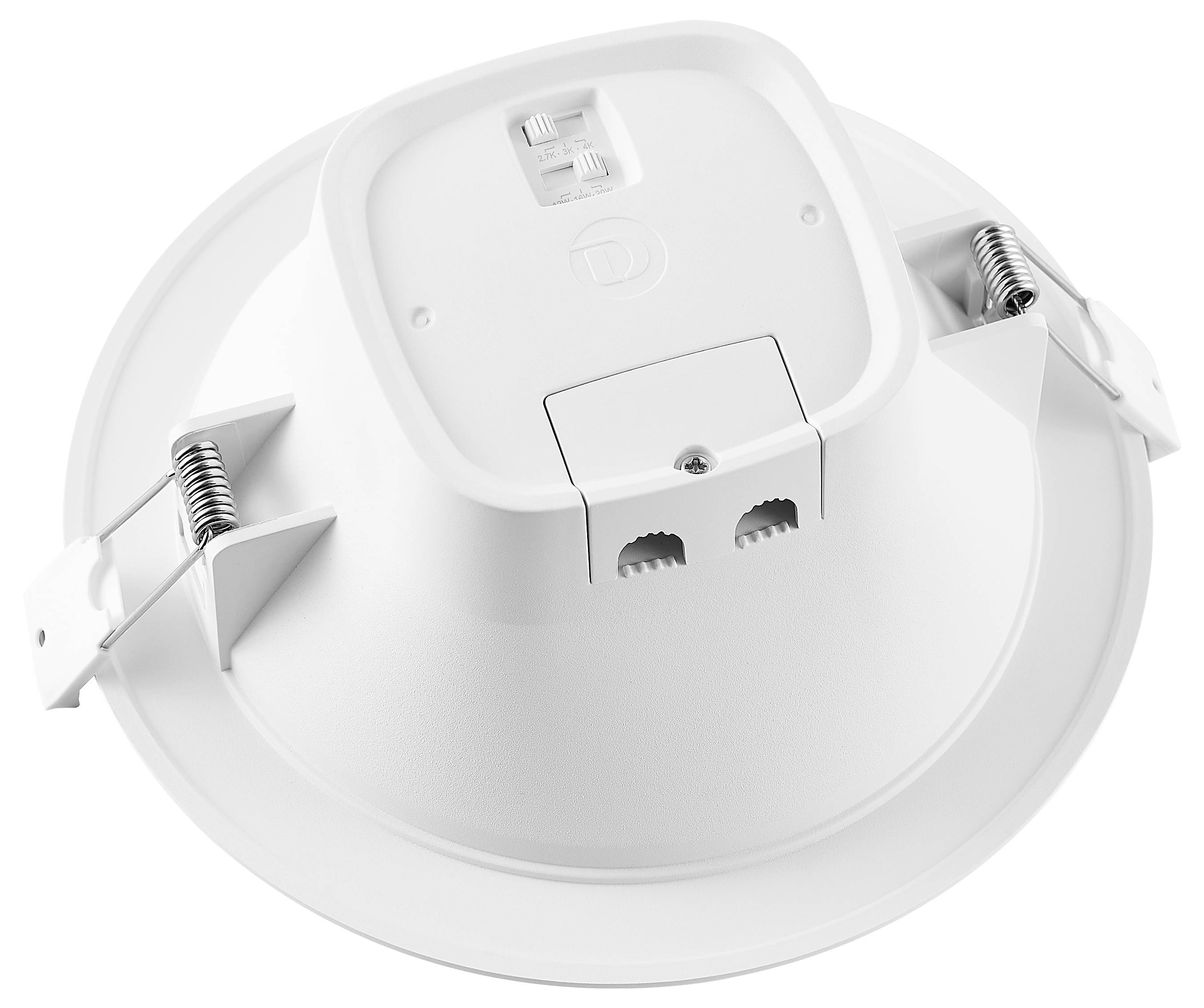

White round recessed ceiling light fixture with spring clips and adjustable metal tabs, shown from below<br>

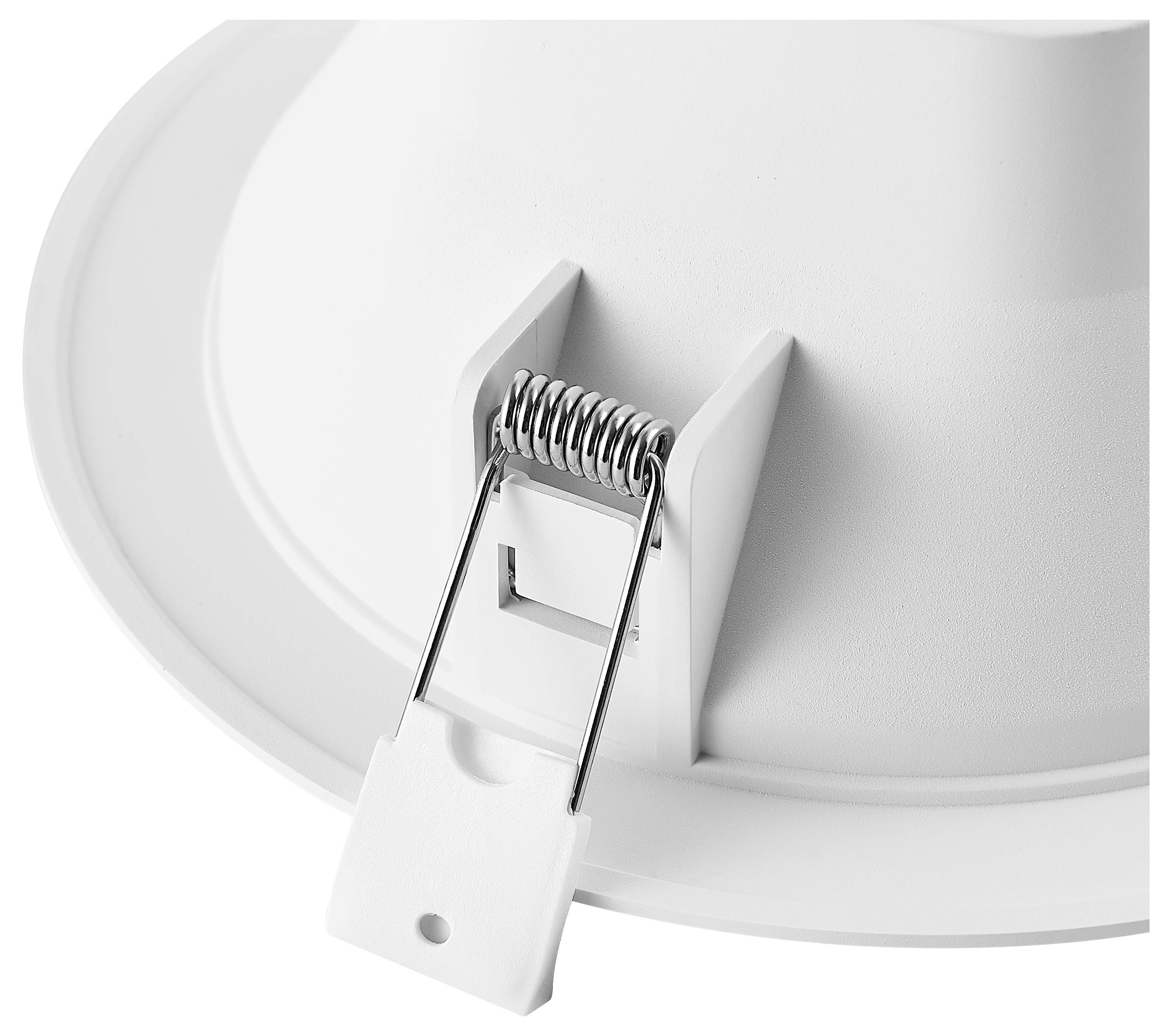

Back view of a recessed round white ceiling light with spring clip mounting hardware visible.

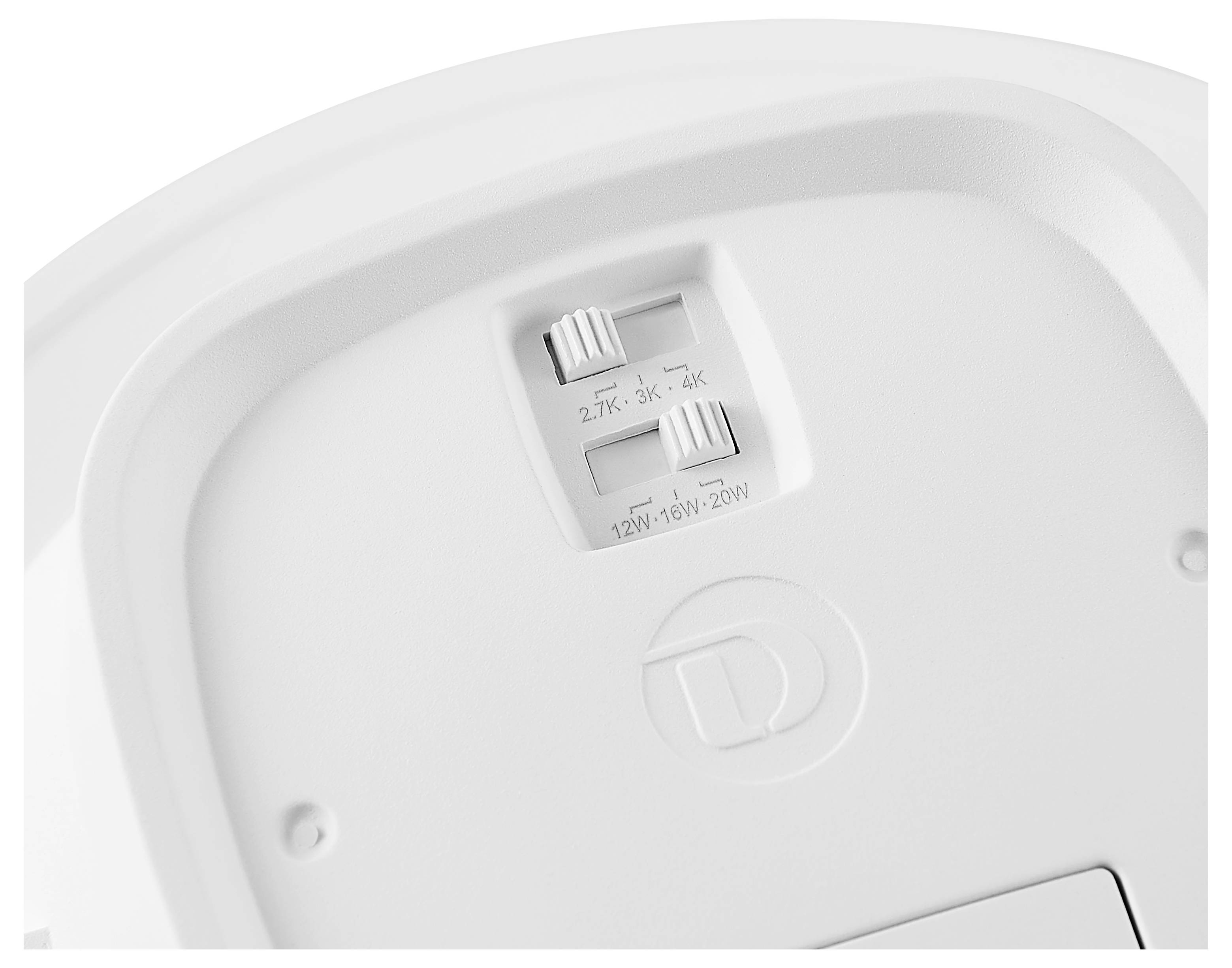

Close-up of a white ceiling light fixture with a control switch labeled '2.7K, 3K, 4K' and '12W-16W-20W' for adjusting color temperature and brightness.

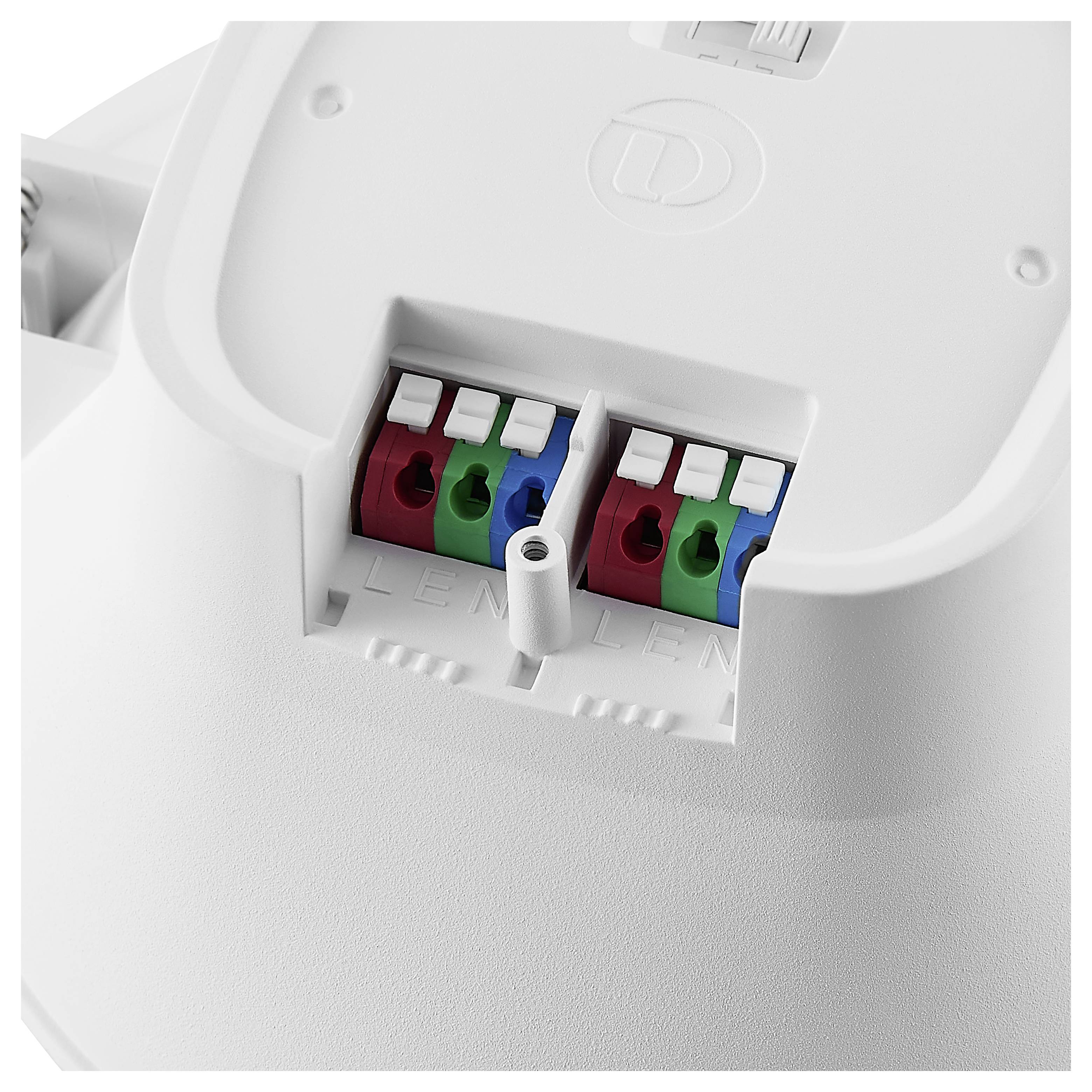

Close-up of a white wall-mounted device with two labeled terminal blocks, each using red, green, and blue wire connectors.

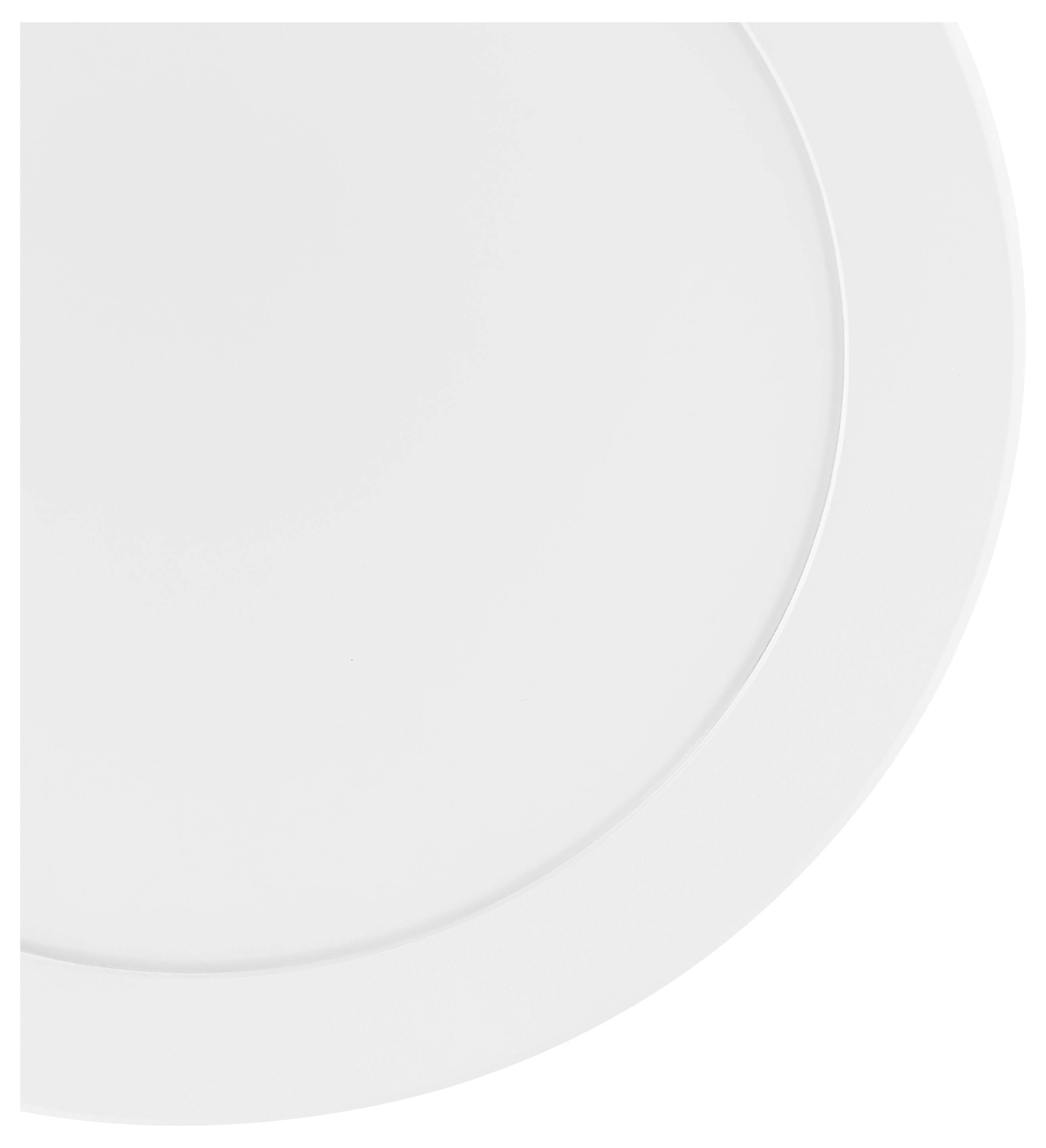

Abstract white circular design with subtle concentric curved rings on a plain background.

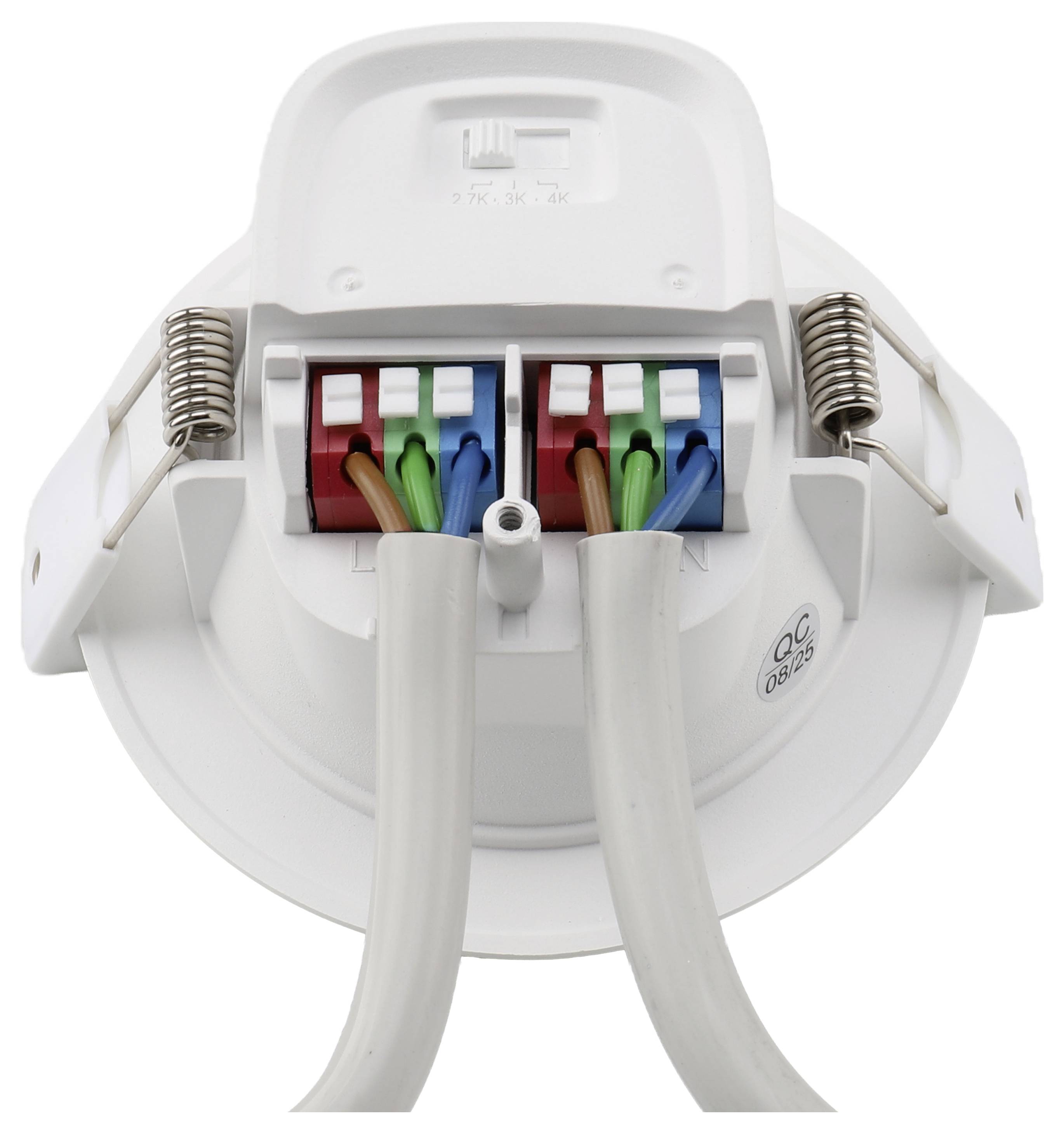

Rear view of a recessed ceiling light fitting with two electrical cables connected to spring-loaded terminal blocks.

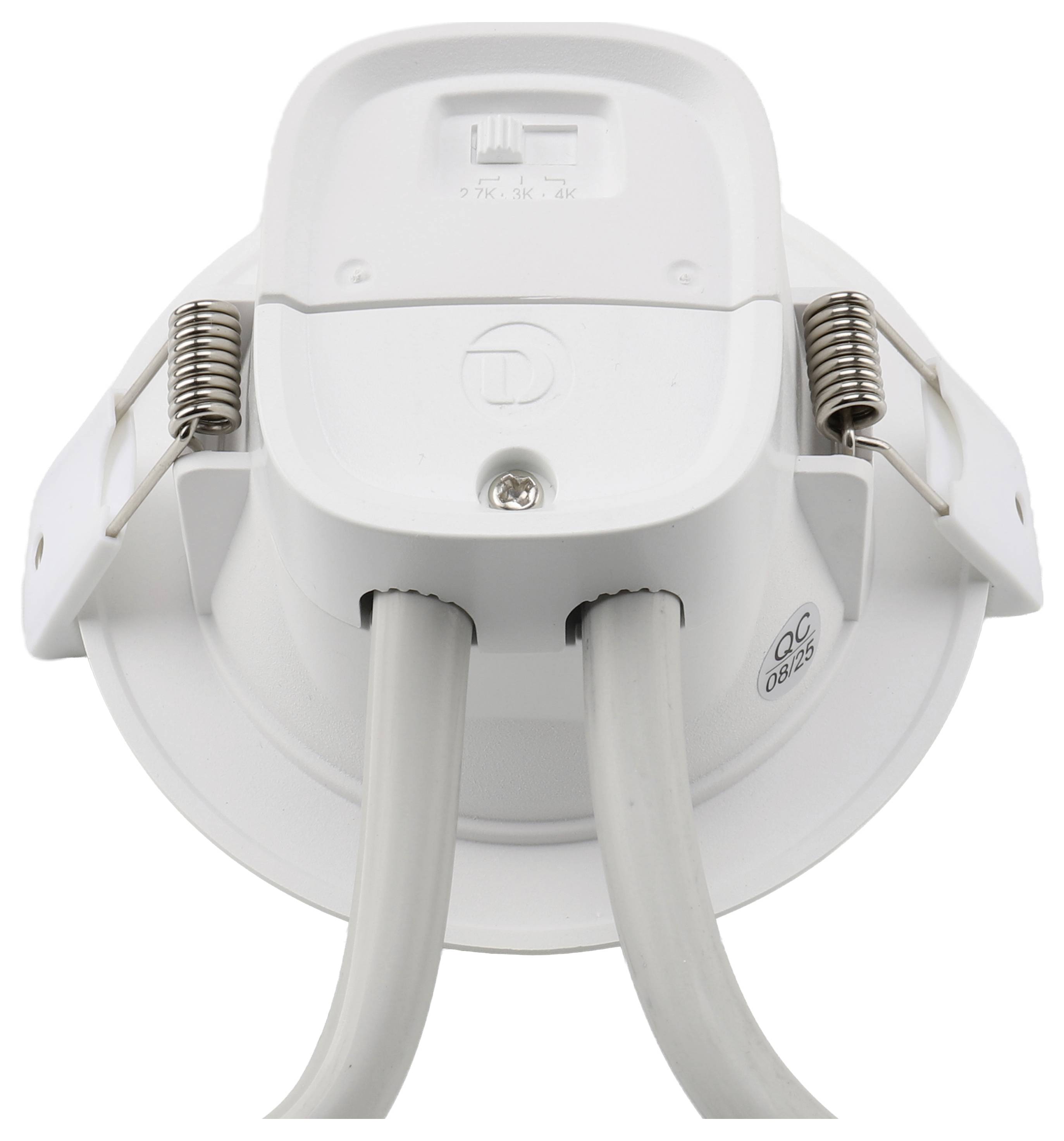

White recessed ceiling light fixture with two spring clips and two gray power wires extending from the back.

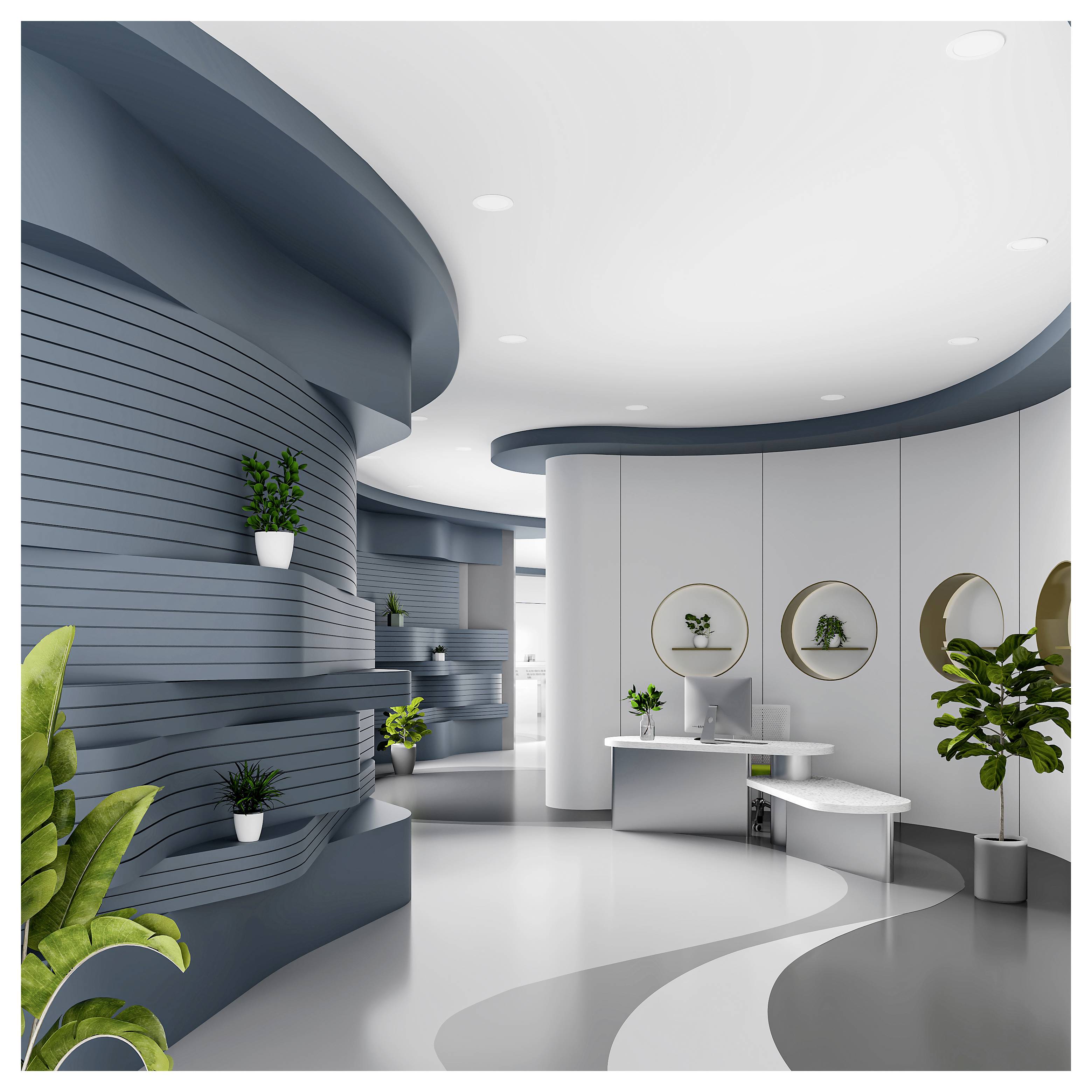

Modern interior reception area with curved gray walls, round wall niches, white desk, benches, and potted plants.

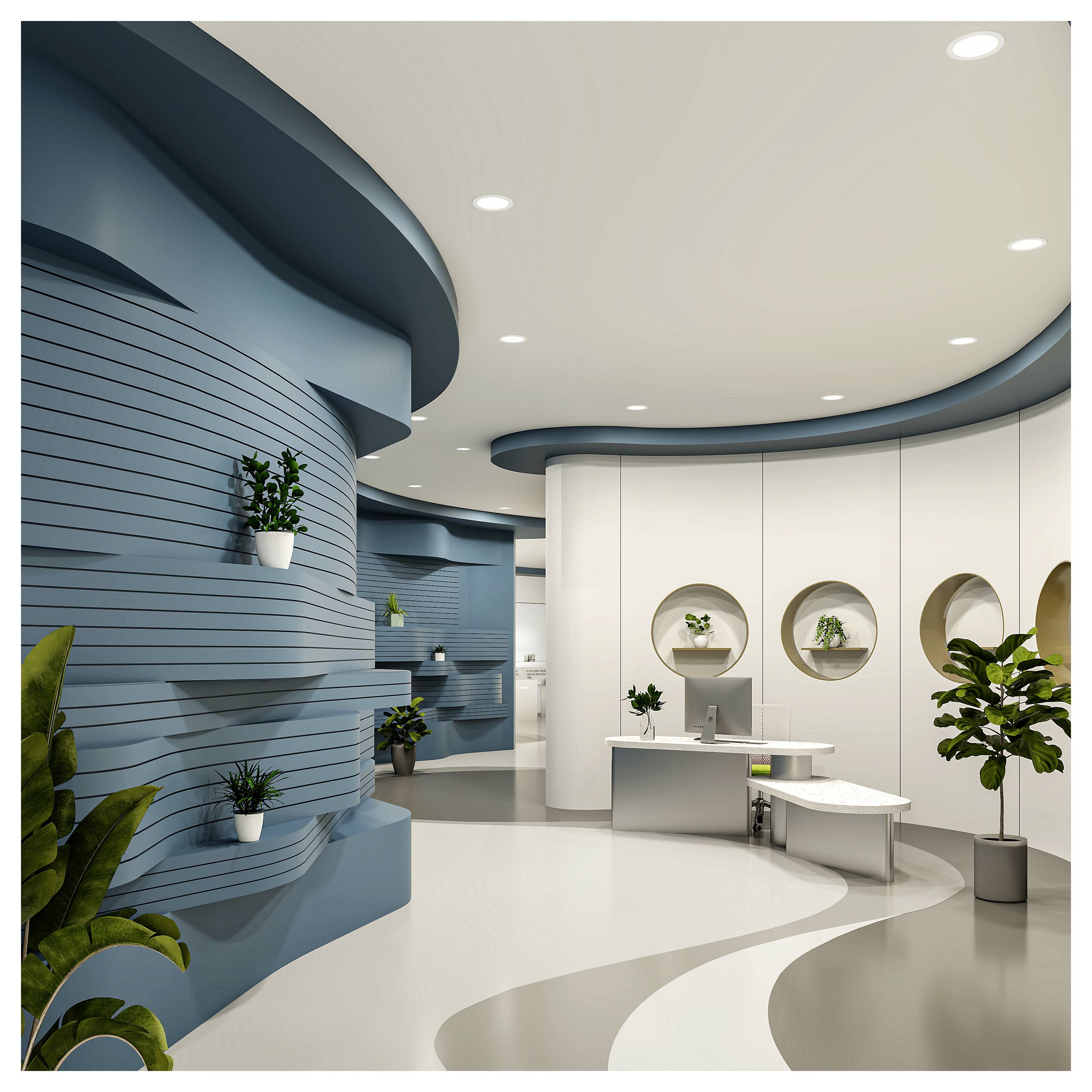

Modern clinic or office reception with curved blue wall, circular cutouts, white desk, and potted plants in a bright, minimalist interior.

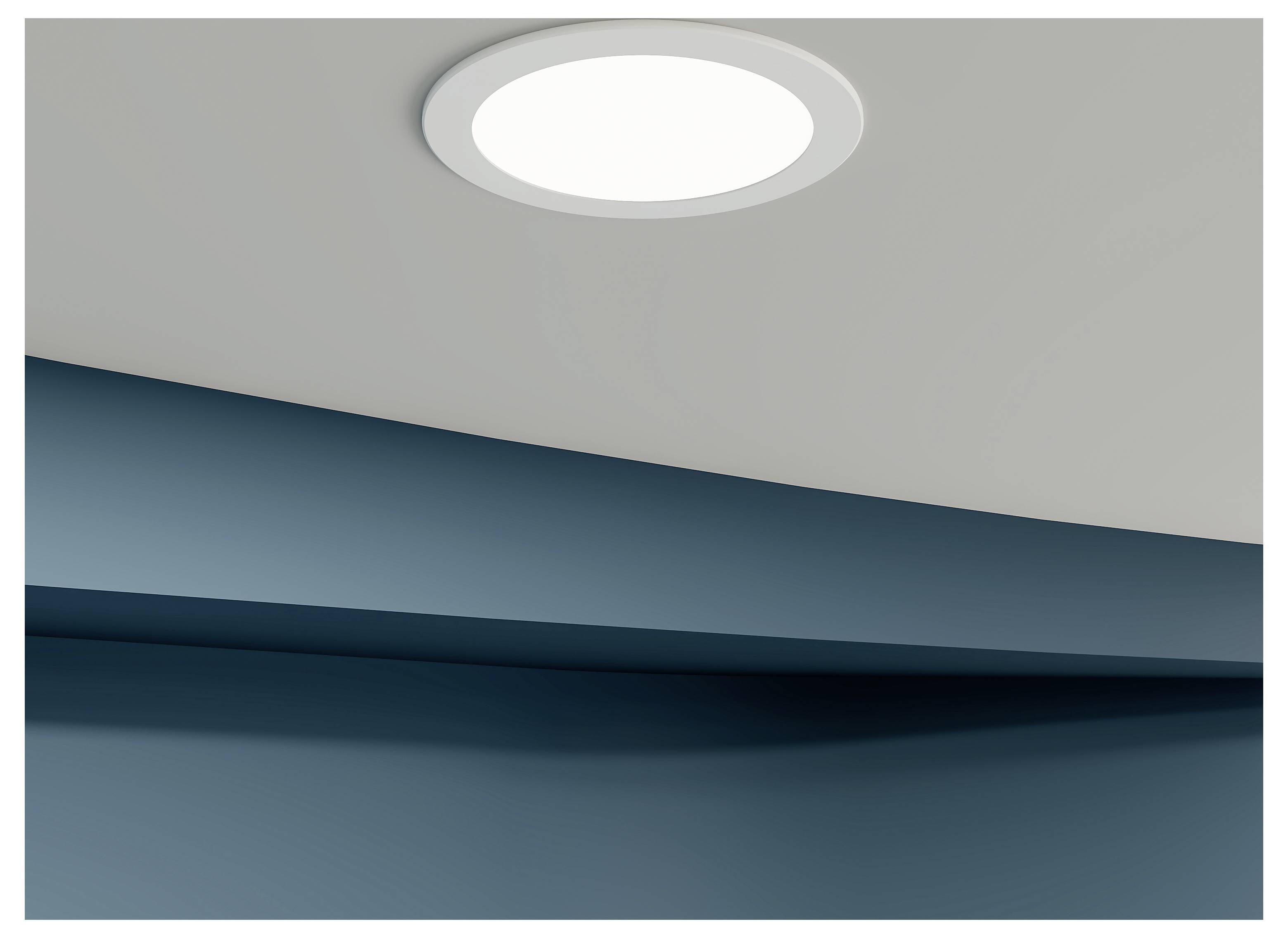

Abstract image of a ceiling with a round recessed light above curved blue and gray architectural surfaces.
1/13
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Deco Light Downlight - Acux Pro 145, 20 W, DIM, 2700/3000/4000 K, white

  • Power= 20 W Total luminous flux= 2500 lm Colour temperature= 4000 K Neutral white, Warm white

Technical specifications

  • Colour consistency 6 SDCM
  • Switching cycles 50000
  • Starting current max. 5 A / 100 µs
  • Power factor 0.9
  • UGR 19
  • Colour temperature 2700/3000/4000 K
  • Colour reproduction (Ra): 90
  • Rated light current 2400/2600/2500 lm
  • Cut-out dimension diameter 145-155 mm
  • Cutting diameter min.: 145 mm
  • Cut diameter max. 155 mm
  • Required mounting depth: 102 mm
  • Product dimension mounting depth 72 mm
Product type

Flush mount light

Operating voltage

240 V AC

Bulb type

LED (monochrome)

20 W

Total luminous flux

2500 lm

4000 K

Colour

Neutral white

Warm white

Type

Circular

Radiation angle

100°

Light features

Dimmable

IP54 (front)

IP20 (back panel)

IK05

Protection class

II

Factory colour

Traffic white (RAL 9016)

Material

Polyamide

Aluminium

Weight

280 g

n.rel.

Dim

(Ø x H) 180 mm x 72 mm

Yes

Light bulb included

Yes

Colour temperature (max.)

4000 K

Colour temperature (min.)

2700 K

Colour temperature range

2700 - 4000 K

Height

72 mm

(Ø)

180 mm

UKCA

yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3766348 Deko Light 565751 Downlight - Acrux Pro 145 Flush mount light LED (monochrome) 20 W Traffic white (RAL 9016)

User & Safety Instructions

User & Safety Instructions 3766348 Deko Light 565751 Downlight - Acrux Pro 145 Flush mount light LED (monochrome) 20 W Traffic white (RAL 9016)

Warranty Terms

Warranty Terms 3766348 Deko Light 565751 Downlight - Acrux Pro 145 Flush mount light LED (monochrome) 20 W Traffic white (RAL 9016)
