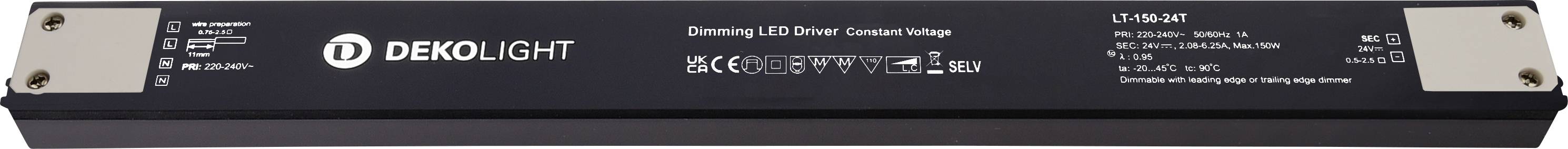

Deko Light 862268 LED transformer Constant voltage 150 W 2080 - 6250 mA 24 V DC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Decorative-Light, dimmable power supply (CV, DC), Long-Flat, DIM, CV, 24V 50-150W, voltage constant, dimmable:
- Constant voltage
- 24 V DC
- 2080 - 6250 mA
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim

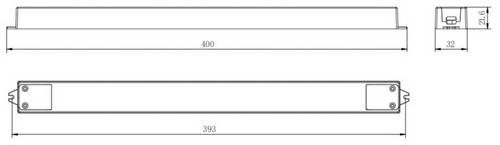

(L x W x H) 400 x 32 x 21.6 mm
- Factory colour
Black
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Max. output current
6250 mA
- Output current (max.) - rounded
6.25 A
- Protection class
II
- LED driver features
dimmable
IP20
- Connection
Clamp
- Max. power
150 W
- No. of outputs
1 x
- Output current (min.)
2080 mA
- Weight
318 g
- Power (min.)
50 W
- Power range
50 up to 150 W
- Width
32 mm
- Height
21.6 mm
- Length
400 mm
- Max. temperature
45 °C
- Min. temperature
-20 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3347631 Deko Light 862268 LED transformer Constant voltage 150 W 2080 - 6250 mA 24 V DC dimmable 1 pc(s)
Warranty Terms
Warranty Terms 3347631 Deko Light 862268 LED transformer Constant voltage 150 W 2080 - 6250 mA 24 V DC dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
