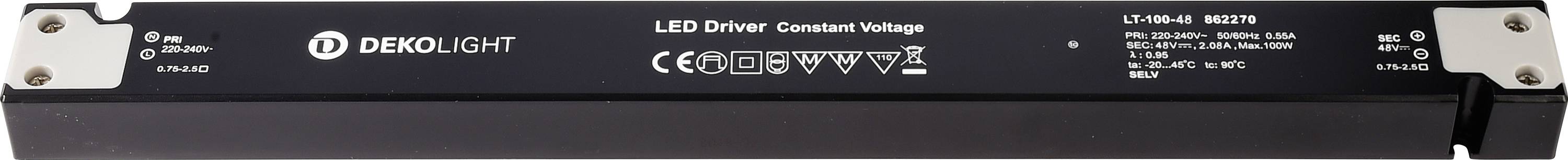

Deko Light 862270 LED transformer Constant voltage 100 W 0 - 2080 mA 48 V DC 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Decorative Light, Power Supply (CV, DC), LONG-FLAT, CV, LT-100-48, VOLTAGE CONSTANT, 100.0 W, 220-240 V/AC,
- Constant voltage
- 48 V DC
- 0 - 2080 mA
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim

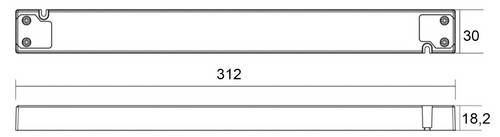

(L x W x H) 312 x 30 x 18.2 mm
- Factory colour
Black
- Output voltage (max.)
48 V DC
- Output voltage (min.)
48 V DC
- Max. output current
2080 mA
- Output current (max.) - rounded
2.08 A
- Protection class
II
IP20
- Connection
Clamp
- Max. power
100 W
- No. of outputs
1 x
- Output current (min.)
0 mA
- Weight
175 g
- Power range
100 W (max)
- Width
30 mm
- Height
18.2 mm
- Length
312 mm
- Max. temperature
45 °C
- Min. temperature
-20 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3347633 Deko Light 862270 LED transformer Constant voltage 100 W 0 - 2080 mA 48 V DC 1 pc(s)
Warranty Terms
Warranty Terms 3347633 Deko Light 862270 LED transformer Constant voltage 100 W 0 - 2080 mA 48 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
