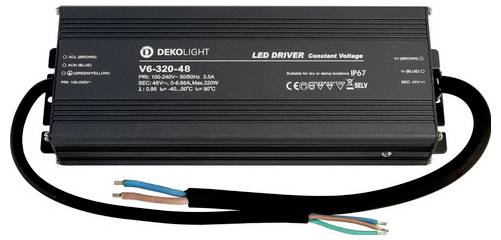

Deko Light 872145 LED transformer Constant voltage 320 W 0 - 6660 mA 48 V DC 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Deco-Light, mains adapter (CV, DC), IP, CV, V6-320-48, voltage constant, 320.0 W, 100-240 V/AC, output
- Constant voltage
- 48 V DC
- 0 - 6660 mA
Technical specifications
- Product type
LED transformer
- Type
Constant voltage

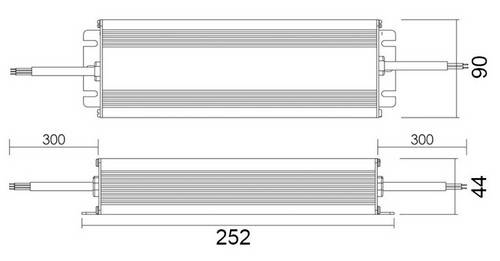

- Dim
(L x W x H) 252 x 90 x 44 mm
- Factory colour
Grey
- Output voltage (max.)
48 V DC
- Output voltage (min.)
48 V DC
- Max. output current
6660 mA
- Output current (max.) - rounded
6.66 A
- Protection class
I
IP67
- Connection
Open end cable
- Max. power
320 W
- No. of outputs
1 x
- Output current (min.)
0 mA
- Weight
1733 g
- Power range
320 W (max)
- Width
90 mm
- Height
44 mm
- Length
252 mm
- Max. temperature
50 °C
- Min. temperature
-40 °C
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3347639 Deko Light 872145 LED transformer Constant voltage 320 W 0 - 6660 mA 48 V DC 1 pc(s)
Warranty Terms
Warranty Terms 3347639 Deko Light 872145 LED transformer Constant voltage 320 W 0 - 6660 mA 48 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
