Deko Light BASIC, CV LED transformer Constant voltage 0 mA - 12.50 A 12 V DC 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

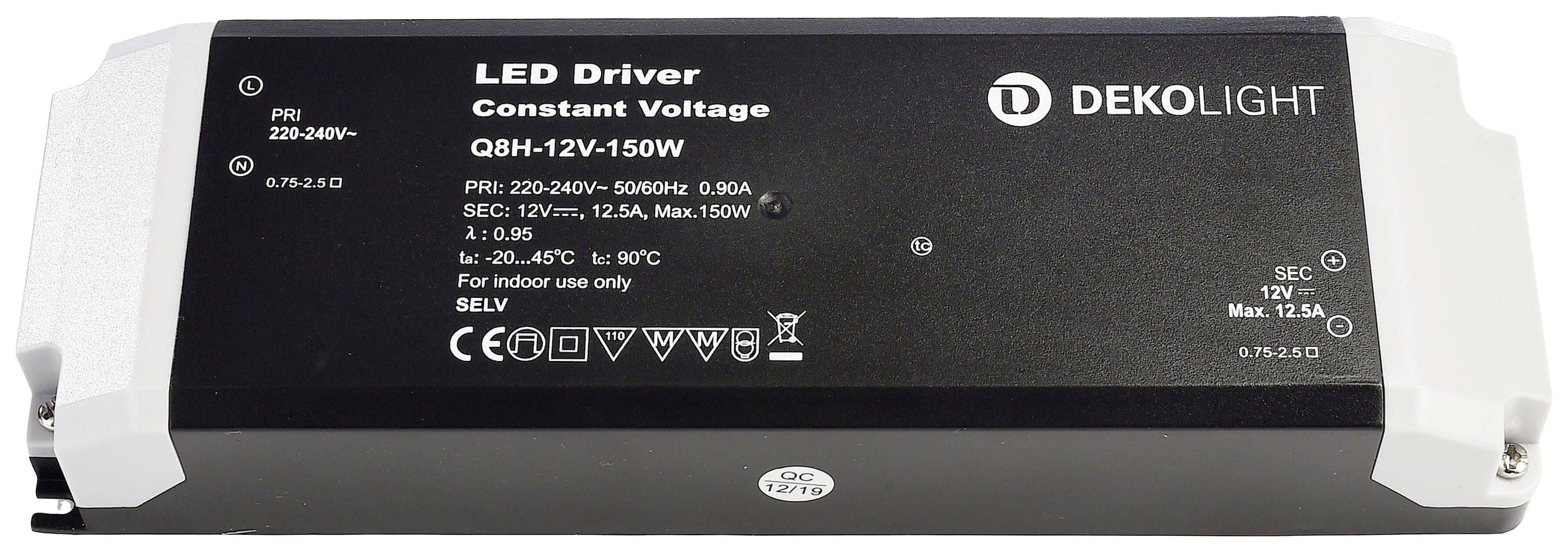

Decorative light LED power supply, BASIC, CV, Q8H-12-150W, 220-240V AC/50-60Hz, 12V DC
- Constant voltage
- 12 V DC
- 0 mA - 12.50 A
Technical specifications
- 0-12500 mA output current
- Material 1: Plastic Durability: 30000 h
- max. Switch-on current (A/µs): 60A/300µs
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 210 x 67 x 34 mm
- Factory colour
Black
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Max. output current
12.50 A
- Output current (max.) - rounded
12.5 A
- Protection class
II
IP20
- Connection
Clamp
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
150 W
- Power range
150 W (min)
- Width
67 mm
- Height
34 mm
- Length
210 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795429 Deko Light BASIC, CV LED transformer Constant voltage 0 mA - 12.50 A 12 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
