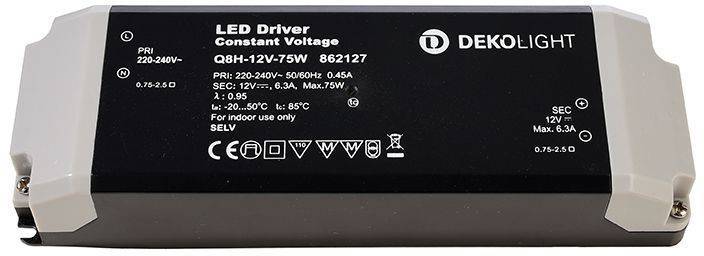

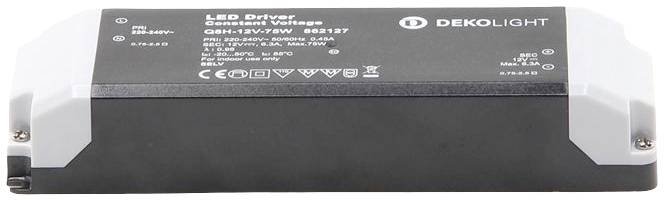

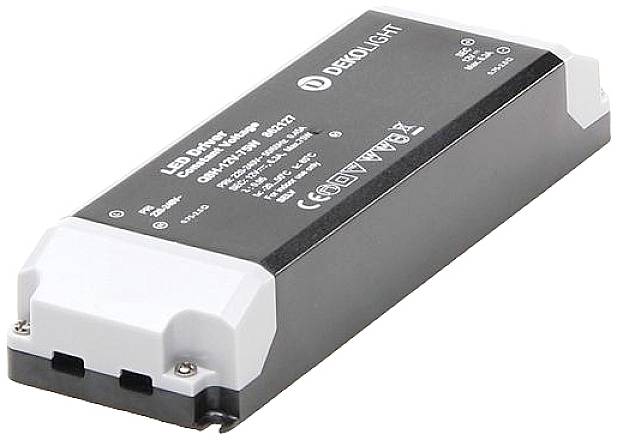

Deko Light BASIC, CV, Q8H-12-75W LED driver Constant voltage 75 W 0 - 6.3 A 12 V Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
BASIC, CV, Q8H-12-75W
- Constant voltage
- 12 V
- 0 - 6.3 A
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Operating current
6.3 A
- Dim

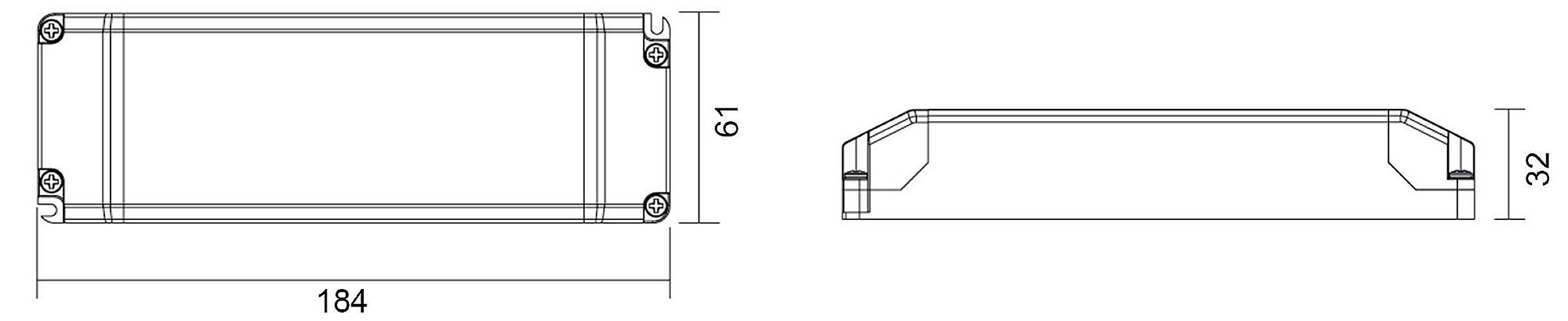

(L x W x H) 184 x 61 x 32 mm
- Factory colour
Black
- Output voltage (max.)
12 V
- Output voltage (min.)
12 V
- Max. output current
6.3 A
- Output current (max.) - rounded
6.3 A
- Protection class
II
- LED driver features
Surge protection
IP20
- Connection
Clamp
- Max. power
75 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 A
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Power (min.)
0 W
- Power range
0 up to 75 W
- Width
61 mm
- Height
32 mm
- Length
184 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2618189 Deko Light BASIC, CV, Q8H-12-75W LED driver Constant voltage 75 W 0 - 6.3 A 12 V Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2618189 Deko Light BASIC, CV, Q8H-12-75W LED driver Constant voltage 75 W 0 - 6.3 A 12 V Surge protection 1 pc(s)
Description
Features
- Flicker-freeShort-circuit proofOverload protectionOverheating protection
Scope of delivery
- LED POWER SUPPLY, BASIC, CV, Q8H-12-75W
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
