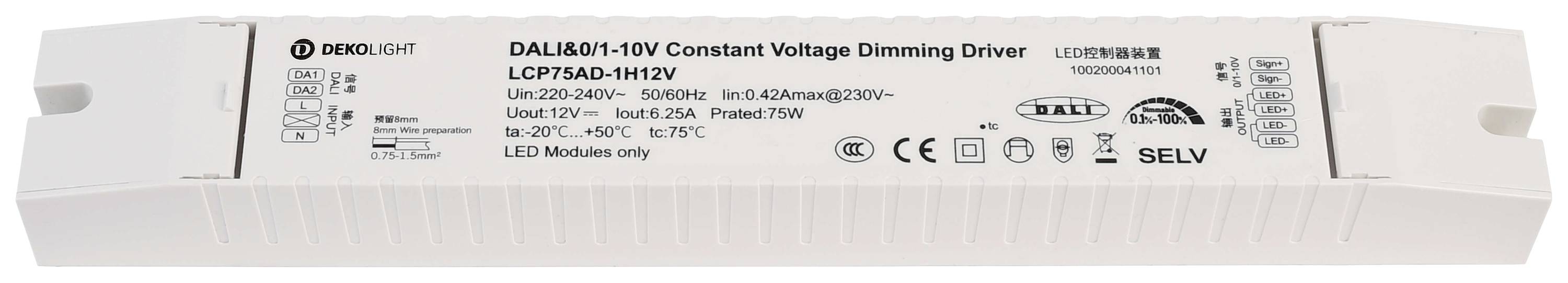

Deko Light BASIC, DIM, CV, LCP LED transformer Constant voltage 0 mA - 6.25 A 12 V DC DALI 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Deco-light LED power supply, BASIC, DIM, CV, LCP75AD-1H12V, Dimmable: DALI bus
- Constant voltage
- 12 V DC
- 0 mA - 6.25 A
Technical specifications
- 0-6250 mA output current
- Activation: DALI bus to IEC 62386 DALI 2.0 / 0-10V / 1-10V / Intelli-Push
- Material 1: Plastic Life: 50,000 h
- Switching cycles: 25000
- max. Switch-on current (A/µs): 22.4A/314µs
- Product type
LED transformer
- Type
Constant voltage
- Operating current
6.25 A
- Dim
(L x W x H) 295 x 40 x 32 mm
- Factory colour
White
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Max. output current
6.25 A
- Output current (max.) - rounded
6.25 A
- Protection class
II
- LED driver features
DALI
IP20
- Connection
Clamp
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
75 W
- Power range
75 W (min)
- Width
40 mm
- Height
32 mm
- Length
295 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795448 Deko Light BASIC, DIM, CV, LCP LED transformer Constant voltage 0 mA - 6.25 A 12 V DC DALI 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
