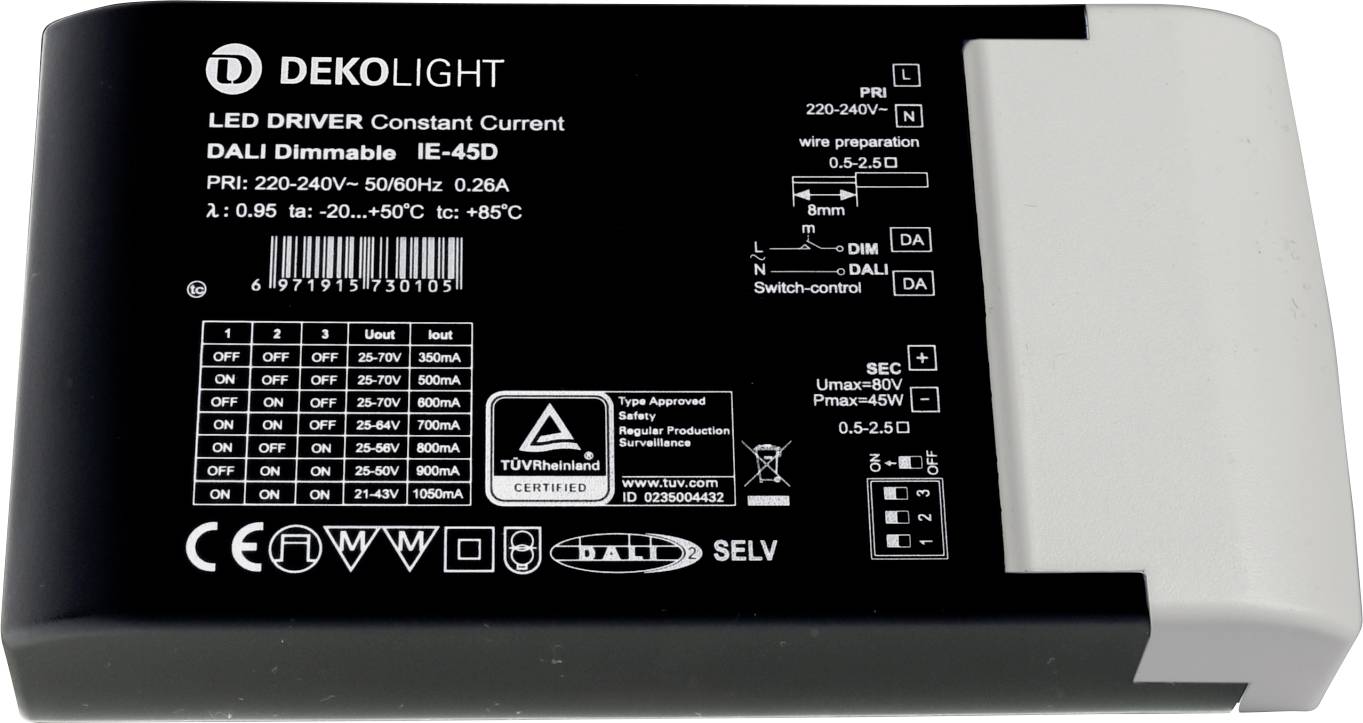

Deko Light BASIC, DIM, Multi CC, IE-45D LED driver Constant current 45 W 350 - 1000 mA 8.75 - 70 V dimmable, adjustable,
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Deco-Light LED-Power supply, BASIC, DIM, Multi CC, IE-45D, Current constant, dimmable: DALI bus according to IEC 62
- Constant current
- 8.75 - 70 V
- 350 - 1000 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 135 x 75 x 30 mm
- Factory colour
Black
- Output voltage (max.)
70 V
- Output voltage (min.)
8.75 V
- Max. output current
1000 mA
- Output current (max.) - rounded
1 A
- Protection class
II
- LED driver features
dimmable
adjustable
DALI
IP20
- Connection
Clamp
- Max. power
45 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
350 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
180 g
- Power (min.)
8.75 W
- Power range
8.75 up to 45 W
- Width
75 mm
- Height
30 mm
- Length
135 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2618198 Deko Light BASIC, DIM, Multi CC, IE-45D LED driver Constant current 45 W 350 - 1000 mA 8.75 - 70 V dimmable, adjustable,
User & Safety Instructions
User & Safety Instructions 2618198 Deko Light BASIC, DIM, Multi CC, IE-45D LED driver Constant current 45 W 350 - 1000 mA 8.75 - 70 V dimmable, adjustable,
Description
37 CC versions in 3 different housing sizes, 862192 = 350-1050mA, 8.75-45W, 21-70V
This text is machine translated.
This text is machine translated.
Features
- Dimmable with Dali1/Dali2Dimmable with Intelli pushCurrent strength adjustable via DIP switchCan be operated without control/dimmingFlicker-free
Scope of delivery
- LED POWER SUPPLY, BASIC, DIM, MULTI CC, IE-45D
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
