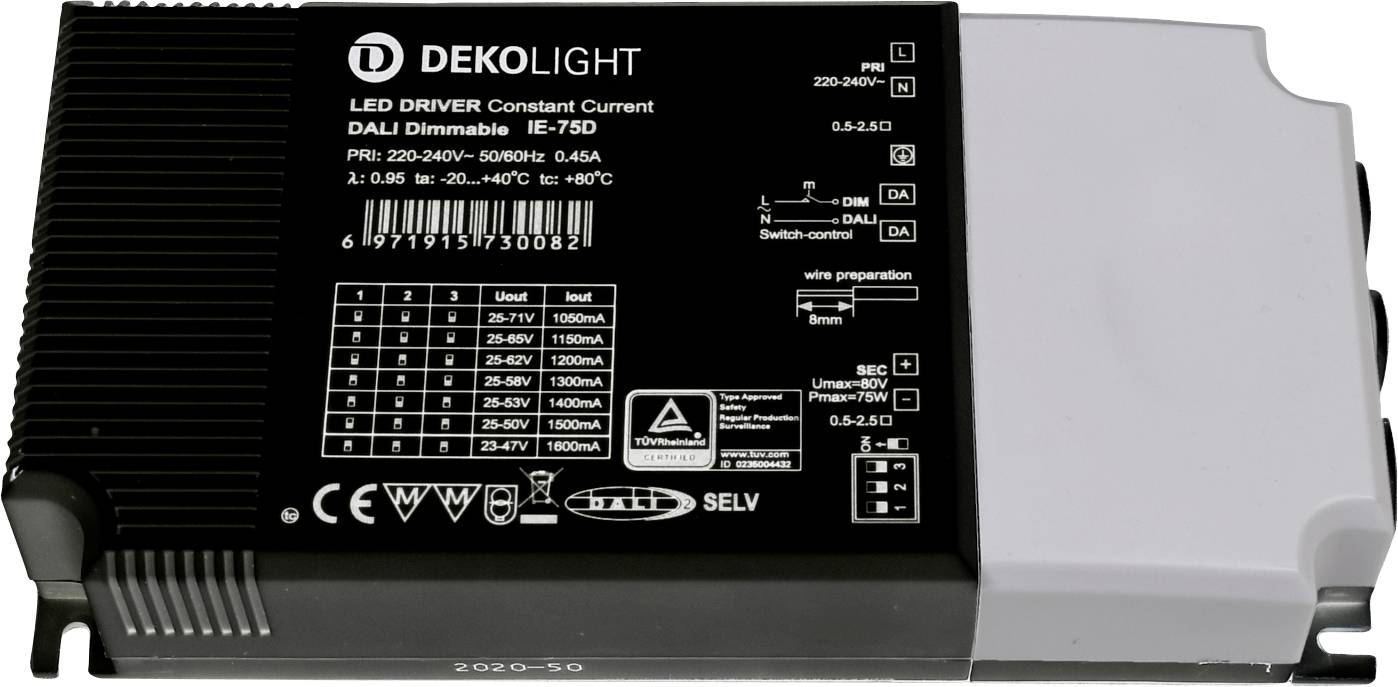

Deko Light BASIC, DIM, Multi CC, IE-75D LED driver Constant current 75 W 1050 - 1600 mA 26 - 70 V dimmable, DALI, adjust
EAN:
Part number:
Item no:
Highlights & Details
Decorative Light LED power supply, BASIC, DIM, Multi CC, IE-75D
- Constant current
- 26 - 70 V
- 1050 - 1600 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 159 x 79 x 30 mm
- Factory colour
Black
- Output voltage (max.)
70 V
- Output voltage (min.)
26 V
- Max. output current
1600 mA
- Output current (max.) - rounded
1.6 A
- Protection class
II
- LED driver features
dimmable
DALI
adjustable
IP20
- Connection
Clamp
- Max. power
75 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
1050 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
230 g
- Power (min.)
26 W
- Power range
26 up to 75 W
- Width
79 mm
- Height
30 mm
- Length
159 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2618201 Deko Light BASIC, DIM, Multi CC, IE-75D LED driver Constant current 75 W 1050 - 1600 mA 26 - 70 V dimmable, DALI, adjust
Description
37 CC variants in 3 different housing sizes, 862194 = 1050-1600mA, 26.3-75.2W, 25-71V
This text is machine translated.
This text is machine translated.
Features
- Dimmable with Dali1/Dali2Dimmable with Intelli pushCurrent strength adjustable via DIP switchCan be operated without control/dimmingFlicker-freeCurrent constantDimmable: DALI bus according to IEC 62
Scope of delivery
- LED POWER SUPPLY, BASIC, DIM, MULTI CC, IE-75D
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
