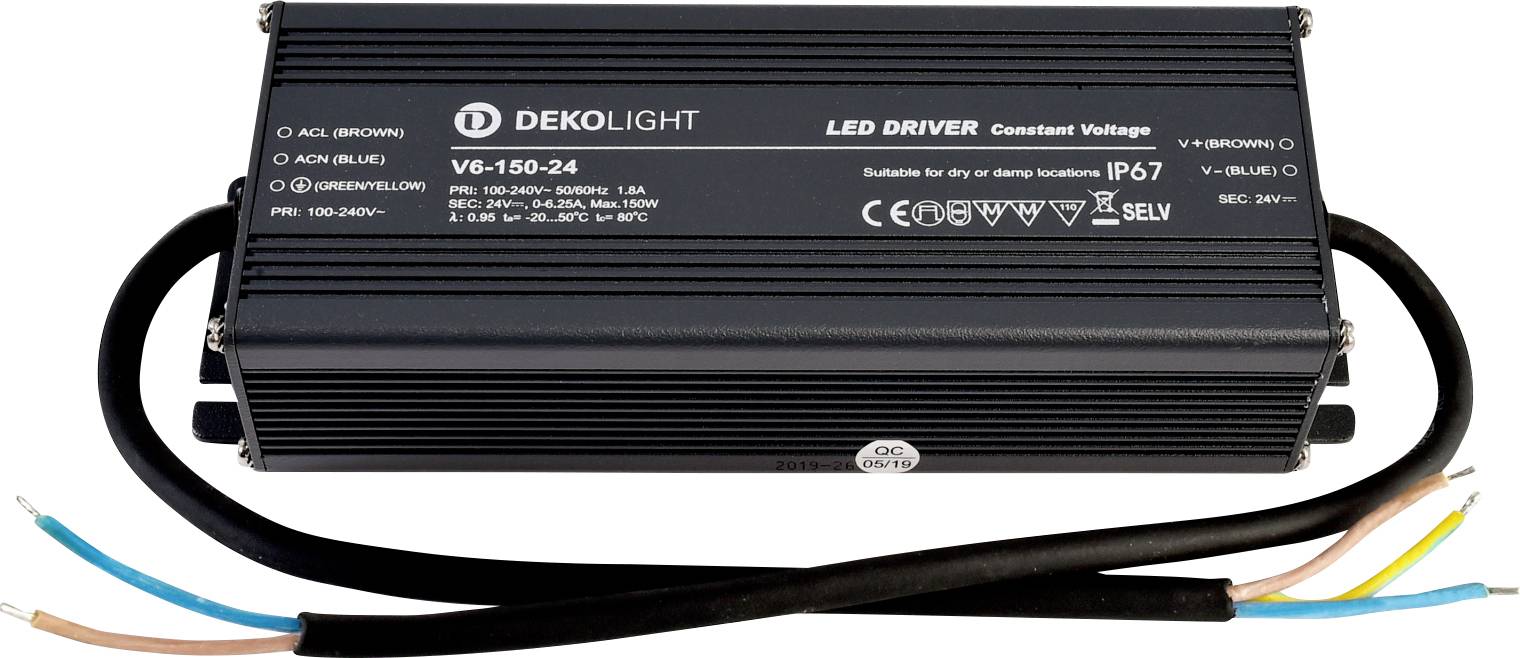

Deko Light IP CV LED transformer Constant voltage 150 W 0 - 6250 mA 24 V DC Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Deco-Light LED-Power supply, IP, CV, V6-150-24, Voltage constant, 100-240V AC/50-60Hz, 24V DC, 1800 mA
- Constant voltage
- 24 V DC
- 0 - 6250 mA
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 191 x 70 x 40 mm
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V DC
- Max. output current
6250 mA
- Output current (max.) - rounded
6.25 A
- Protection class
II
- LED driver features
Surge protection
IP20
- Connection
Open cable ends
- Max. power
150 W
- Output current (min.)
0 mA
- Weight
889 g
- Power range
150 W (max)
- Width
70 mm
- Height
40 mm
- Length
191 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2523536 Deko Light IP CV LED transformer Constant voltage 150 W 0 - 6250 mA 24 V DC Surge protection 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
