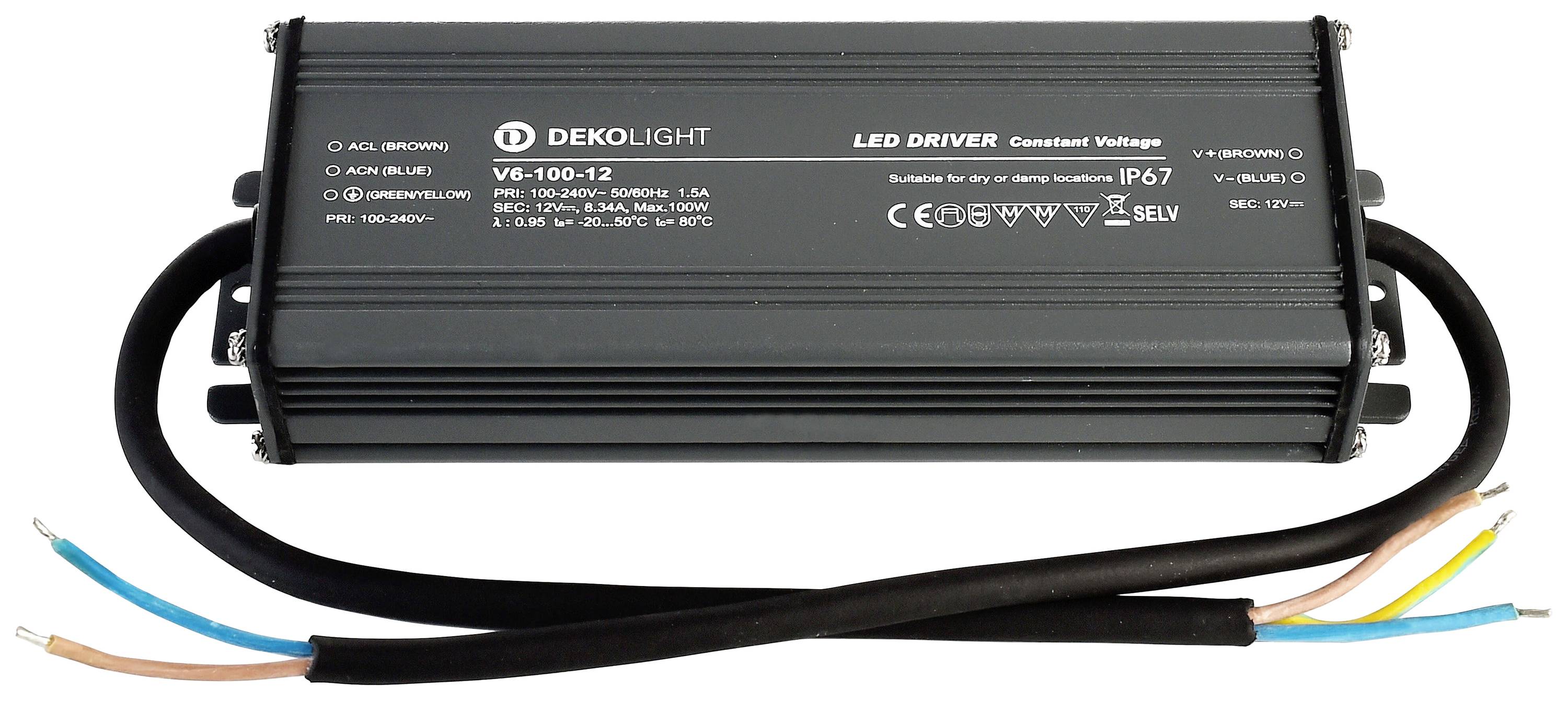

Deko Light IP, CV, V LED transformer Constant voltage 100.08 W 0 mA - 8.34 A 12 V DC 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
IP, CV, V
- Constant voltage
- 12 V DC
- 0 mA - 8.34 A
Technical specifications
- 0-8340 mA output current
- Material 1: Aluminium Life: 50,000 h
- max. Inrush current (A/µs): 50A/300µs
- Product type
LED transformer
- Type
Constant voltage
- Operating current
8.34 A
- Dim
(L x W x H) 186 x 64 x 39 mm
- Factory colour
Grey
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Max. output current
8.34 A
- Output current (max.) - rounded
8.34 A
- Protection class
I
IP67
- Connection
Open end cable
- Max. power
100.08 W
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
100
- Power (min.)
100 W
- Power range
100 up to 100.08 W
- Width
64 mm
- Height
39 mm
- Length
186 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795462 Deko Light IP, CV, V LED transformer Constant voltage 100.08 W 0 mA - 8.34 A 12 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
