Deko Light IP, CV, V6-150-12 LED driver Constant voltage 150 W 0 mA - 12.5 A 12 V Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

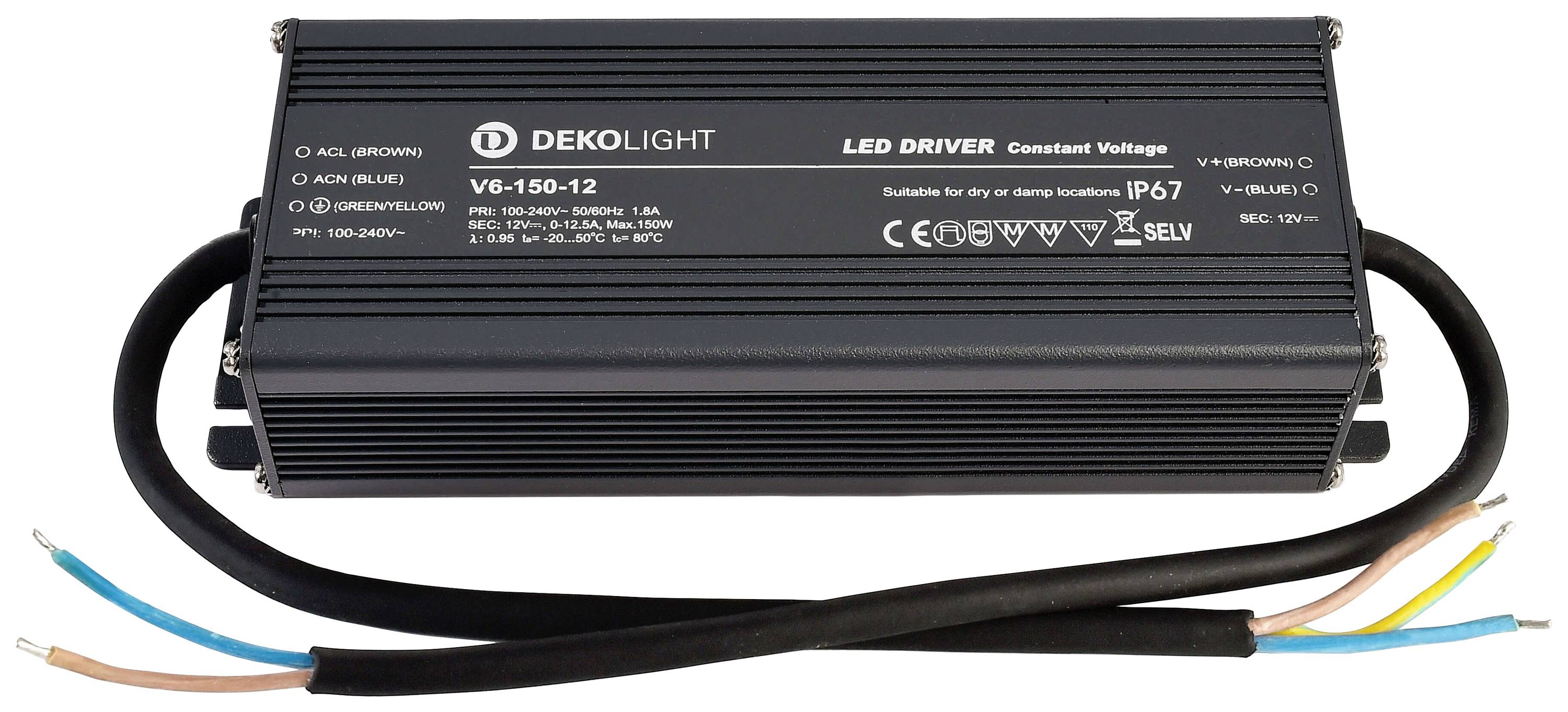

Decorative Light LED Power Supply, IP, CV, V6-150-12
- Constant voltage
- 12 V
- 0 mA - 12.5 A
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Operating current
12.5 A
- Dim

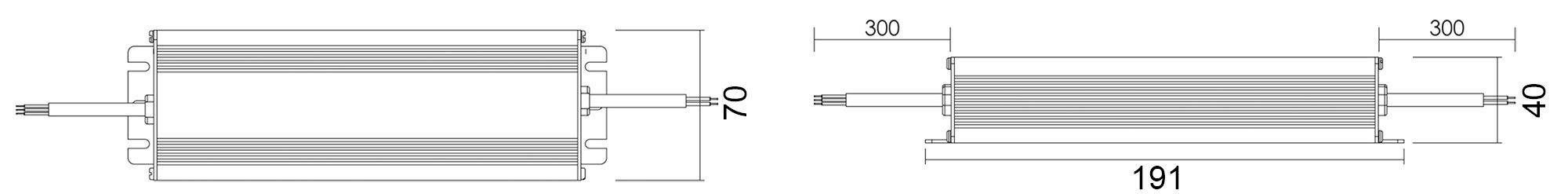

(L x W x H) 191 x 70 x 40 mm
- Factory colour
Black
- Output voltage (max.)
12 V
- Output voltage (min.)
12 V
- Max. output current
12.5 A
- Output current (max.) - rounded
12.5 A
- Protection class
I
- LED driver features
Surge protection
IP67
- Connection
Clamp
- Max. power
150 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
100 V
- Weight
899 g
- Power (min.)
150 W
- Power range
150 up to 150 W
- Width
70 mm
- Height
40 mm
- Length
191 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2618234 Deko Light IP, CV, V6-150-12 LED driver Constant voltage 150 W 0 mA - 12.5 A 12 V Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2618234 Deko Light IP, CV, V6-150-12 LED driver Constant voltage 150 W 0 mA - 12.5 A 12 V Surge protection 1 pc(s)
Description
Features
- Robust housingFlicker-freeShort-circuit proofOverload protectionOverheating protection
- This text is machine translated.
Scope of delivery
- LED power supply IP, CV, V6-150-12
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
