Deko Light IP, CV, V6-240-24 LED driver Constant voltage 240 W 0 mA - 10 A 24 V Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

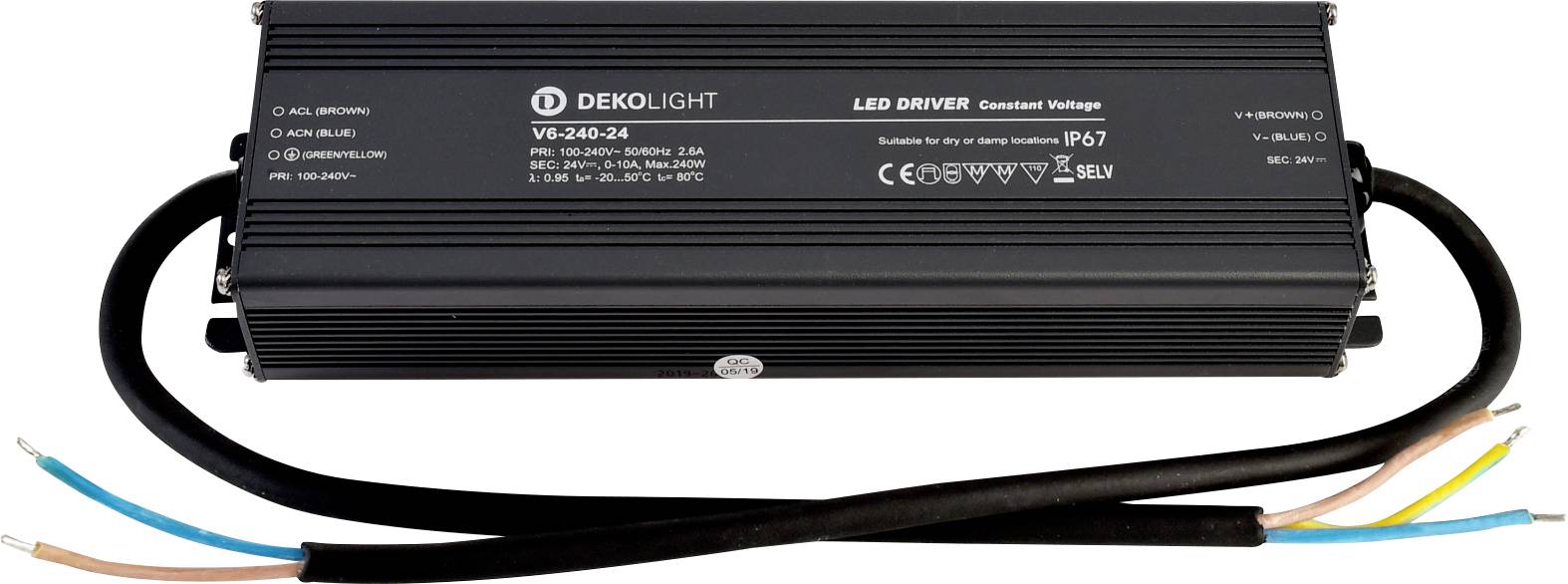

Decorative Light LED Power Supply, IP, CV, V6-240-24
- Constant voltage
- 24 V
- 0 mA - 10 A
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Operating current
2900 mA
- Dim

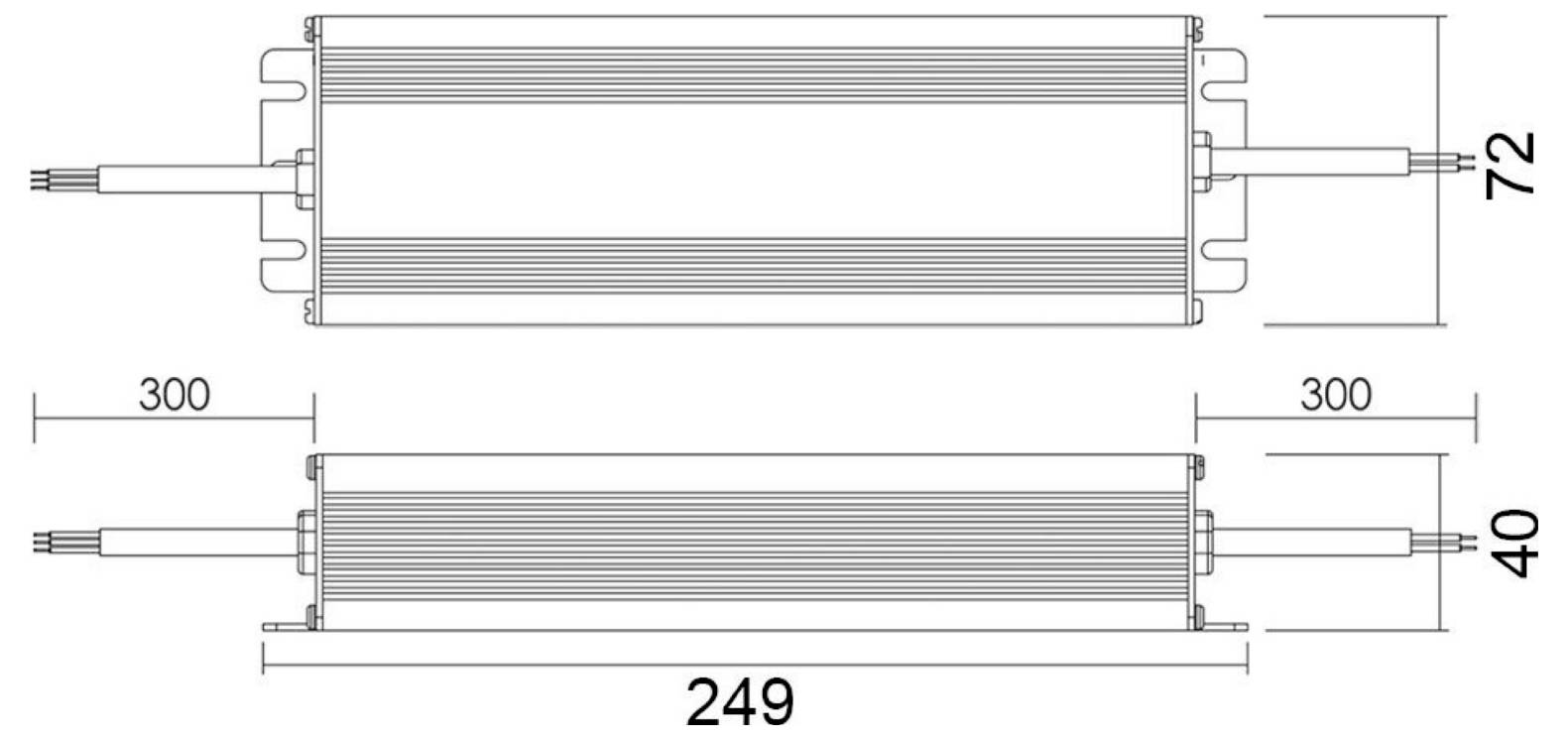

(L x W x H) 249 x 72 x 40 mm
- Factory colour
Black
- Output voltage (max.)
24 V
- Max. output current
10 A
- Output current (max.) - rounded
10 A
- Protection class
I
- LED driver features
Surge protection
IP67
- Connection
Clamp
- Max. power
240 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
100 V
- Weight
1247 g
- Power range
240 W (max)
- Width
72 mm
- Height
40 mm
- Length
249 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2618236 Deko Light IP, CV, V6-240-24 LED driver Constant voltage 240 W 0 mA - 10 A 24 V Surge protection 1 pc(s)
Description
Features
- Robust housingFlicker-freeShort-circuit proofOverload protectionOverheating protection
- This text is machine translated.
Scope of delivery
- LED power supply IP, CV, V6-240-24
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
