Deko Light IP, CV, V6-40-24 LED driver Constant voltage 40 W 0 - 1670 mA 24 V Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

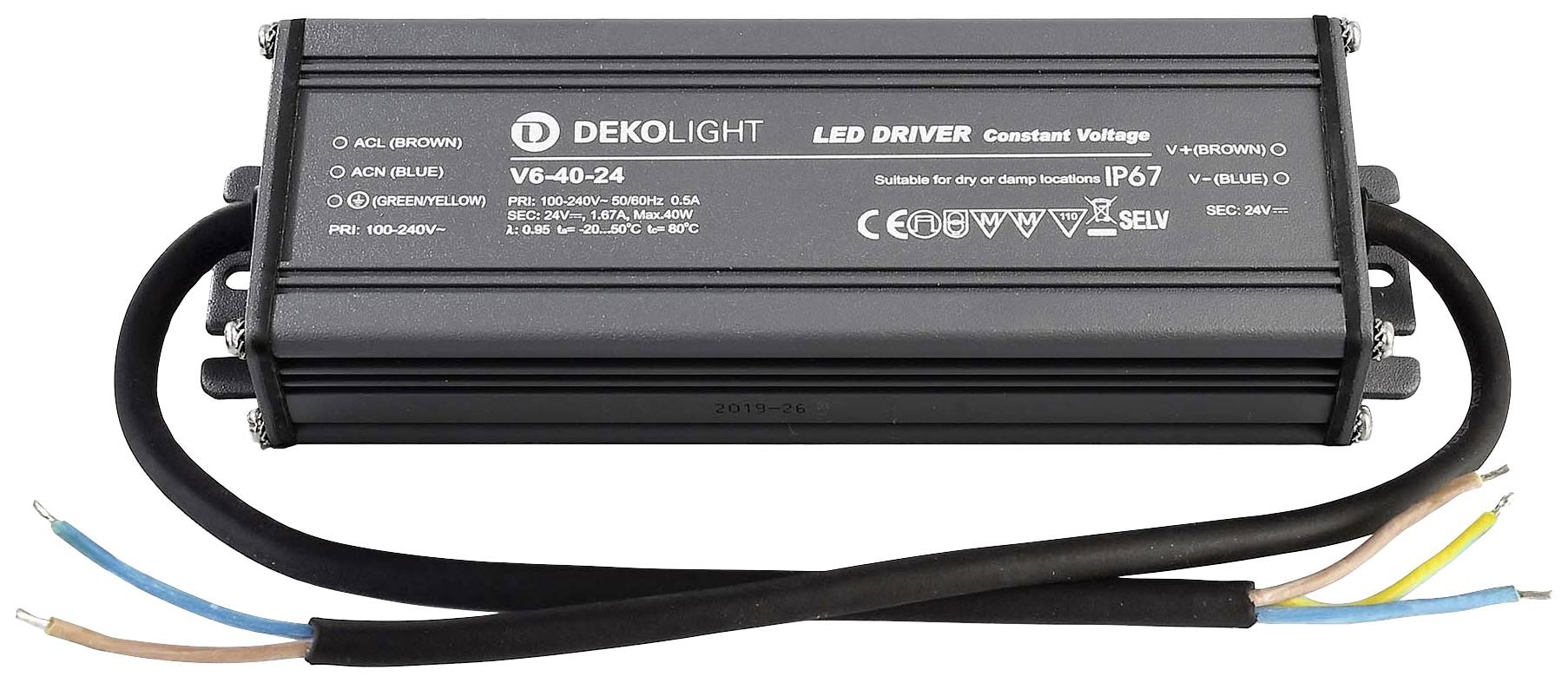

Decorative Light LED Power Supply, IP, CV, V6-40-24
- Constant voltage
- 24 V
- 0 - 1670 mA
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Operating current
1670 mA
- Dim

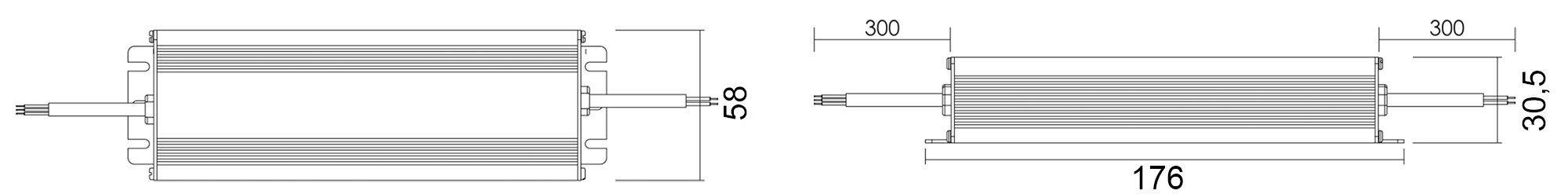

(L x W x H) 176 x 58 x 30.5 mm
- Factory colour
Black
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Max. output current
1670 mA
- Output current (max.) - rounded
1.67 A
- Protection class
I
- LED driver features
Surge protection
IP67
- Connection
Open end cable
- Max. power
40 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
100 V
- Weight
560 g
- Power (min.)
40 W
- Power range
40 up to 40 W
- Width
58 mm
- Height
30.5 mm
- Length
176 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 2618230 Deko Light IP, CV, V6-40-24 LED driver Constant voltage 40 W 0 - 1670 mA 24 V Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2618230 Deko Light IP, CV, V6-40-24 LED driver Constant voltage 40 W 0 - 1670 mA 24 V Surge protection 1 pc(s)
Description
Features
- Robust housingFlicker-freeShort-circuit proofOverload protectionOverheating protectionCompact design
- This text is machine translated.
Scope of delivery
- LED power supply IP, CV, V6-40-24
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
