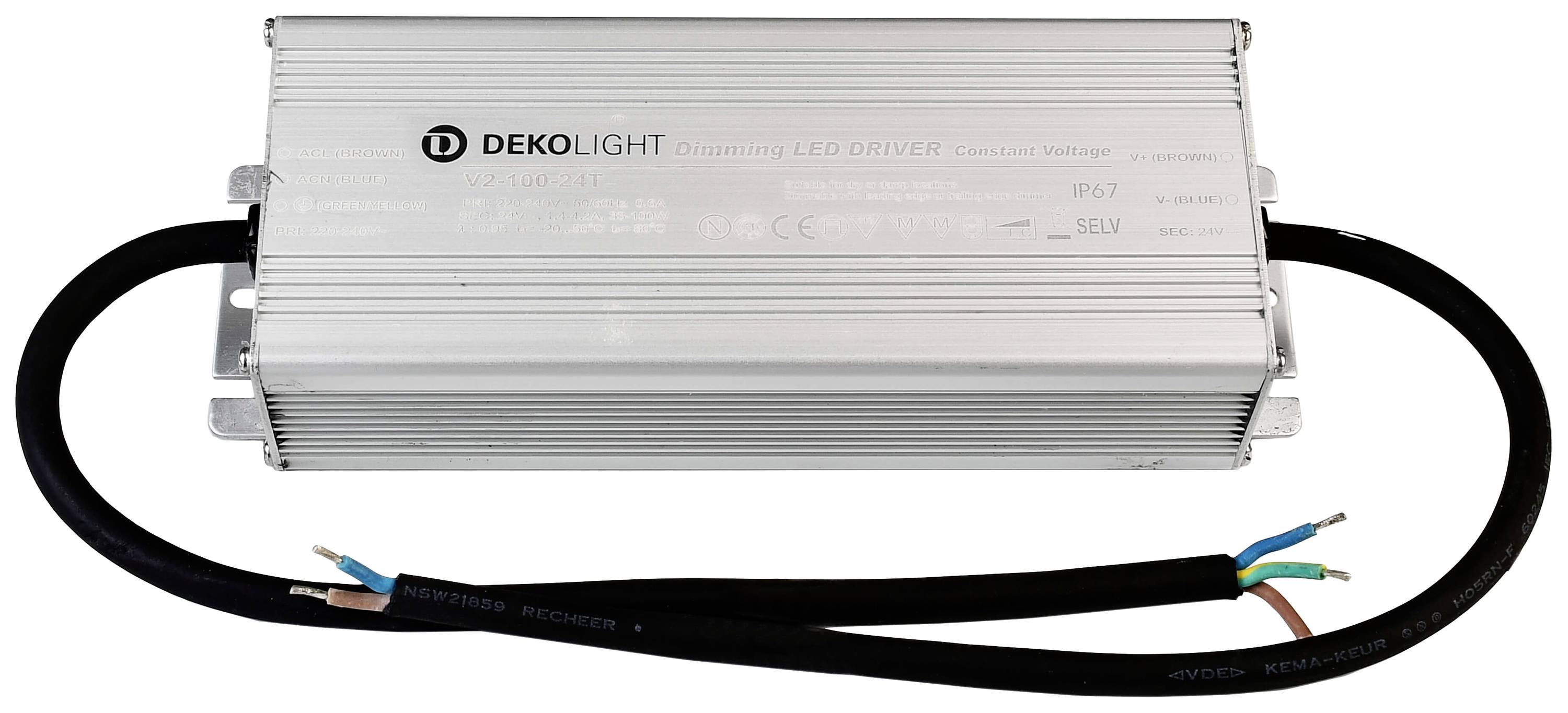

Deko Light IP, DIM CV LED transformer Constant voltage 100 W 1400 mA - 4.20 A 24 V DC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
IP, DIM CV
- Constant voltage
- 24 V DC
- 1400 mA - 4.20 A
Technical specifications
- Output current 1400-4200 mA
- Activation: Phase forward / phase section
- Material 1: Plastic
- max. Inrush current (A/µs): 45A/100µs
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 191 x 70 x 40 mm
- Factory colour
Black
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Max. output current
4.20 A
- Output current (max.) - rounded
4.2 A
- Protection class
I
- LED driver features
dimmable
IP67
- Connection
Clamp
- Max. power
100 W
- Output current (min.)
1400 mA
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
33 W
- Power range
33 up to 100 W
- Width
70 mm
- Height
40 mm
- Length
191 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795467 Deko Light IP, DIM CV LED transformer Constant voltage 100 W 1400 mA - 4.20 A 24 V DC dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
