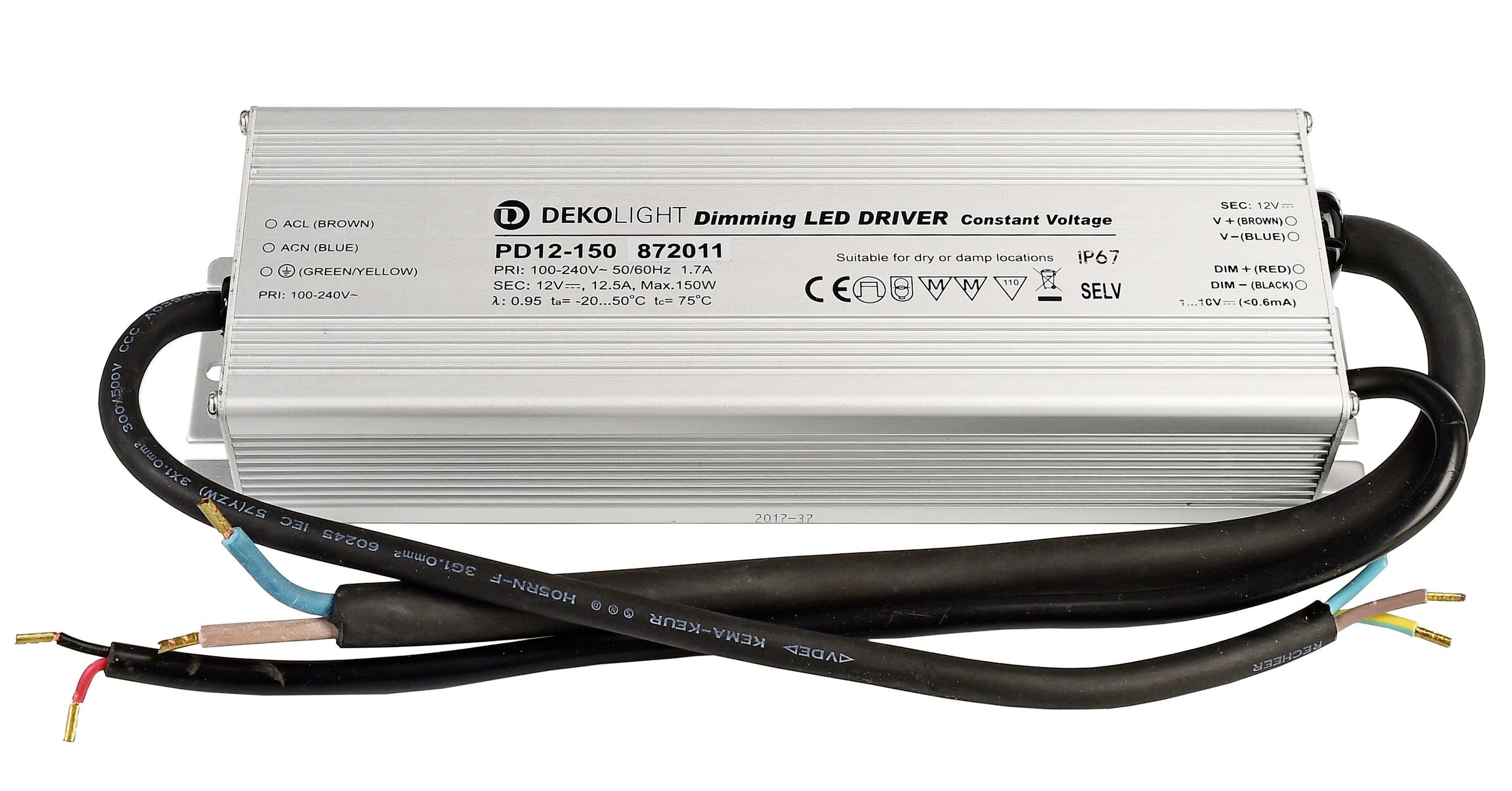

Deko Light IP, DIM, CV, PD LED transformer Constant voltage 0 mA - 12.50 A 12 V DC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Decorative light LED power supply, IP, DIM, CV, PD12-150-1-10V, Dimmable 1-10V, 100-240V
- Constant voltage
- 12 V DC
- 0 mA - 12.50 A
Technical specifications
- 0-12500 mA output current
- Activation: 1-10V
- Material 1: Aluminium
- max. Switch-on current (A/µs): 60A/300µs
- Product type
LED transformer
- Type
Constant voltage
- Operating current
12500 mA
- Dim
(L x W x H) 223 x 70 x 40 mm
- Factory colour
Silver
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Max. output current
12.50 A
- Output current (max.) - rounded
12.5 A
- Protection class
I
- LED driver features
dimmable
IP67
- Connection
Open end cable
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
100
- Power (min.)
150 W
- Power range
150 W (min)
- Width
70 mm
- Height
40 mm
- Length
223 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795454 Deko Light IP, DIM, CV, PD LED transformer Constant voltage 0 mA - 12.50 A 12 V DC dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
