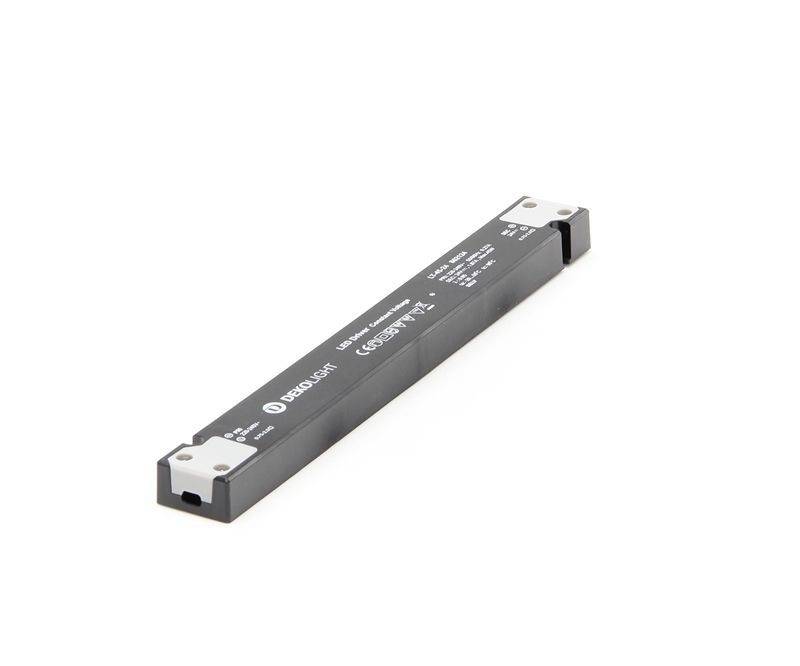

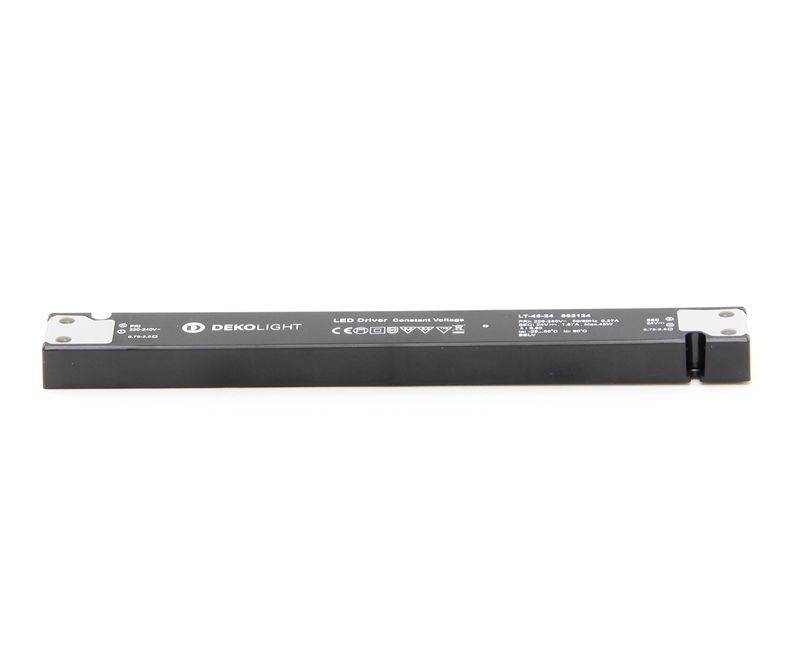

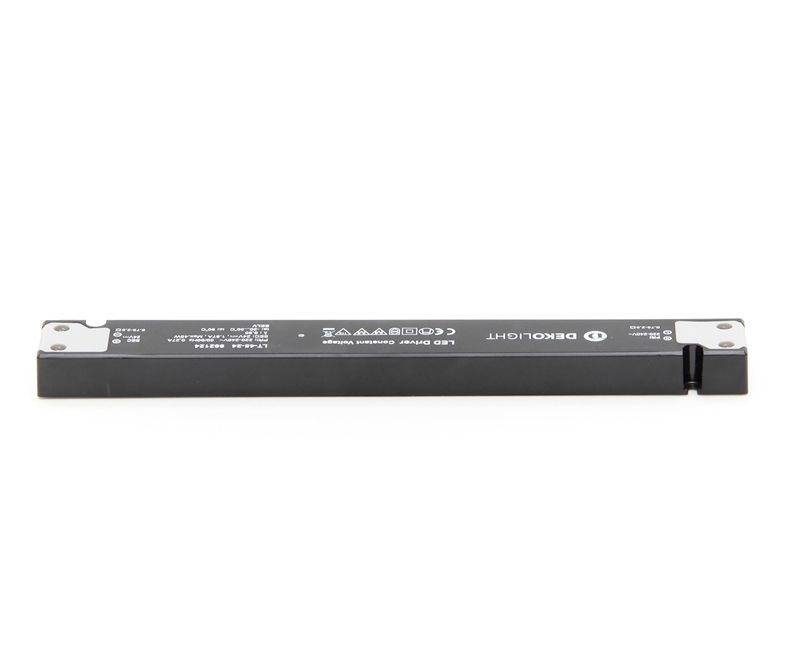

Deko Light LONG-FLAT, CV, LT LED transformer Constant voltage 100 W 0 mA - 1.87 A 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Decorative light LED power supply, LONG-Flat, CV, LT-45-24, 220-240V AC/50-60Hz, 24 V DC,
- Constant voltage
- 24 V DC
- 0 mA - 1.87 A
Technical specifications
- 0-1870 mA output current
- Material 1: Plastic
- Life: 30000 hours
- max. Switch-on current (A/µs): 30A/300µs
- Product type
LED transformer
- Type
Constant voltage
- Operating current
1870 mA
- Dim
(L x W x H) 251 x 30 x 16 mm
- Factory colour
Black
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Max. output current
1.87 A
- Output current (max.) - rounded
1.87 A
- Protection class
II
IP20
- Connection
Clamp
- Max. power
100 W
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
45 W
- Power range
45 up to 100 W
- Width
30 mm
- Height
16 mm
- Length
251 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795417 Deko Light LONG-FLAT, CV, LT LED transformer Constant voltage 100 W 0 mA - 1.87 A 24 V DC 1 pc(s)
Description
This still quite new power supply series has regular power under its "hood" and, for example, 100 watt packed CV-power at just 30 x 18 mm cross-section! This makes this power supply suitable for most ceiling spouts, shadows or also in all other installation situations with less space.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
