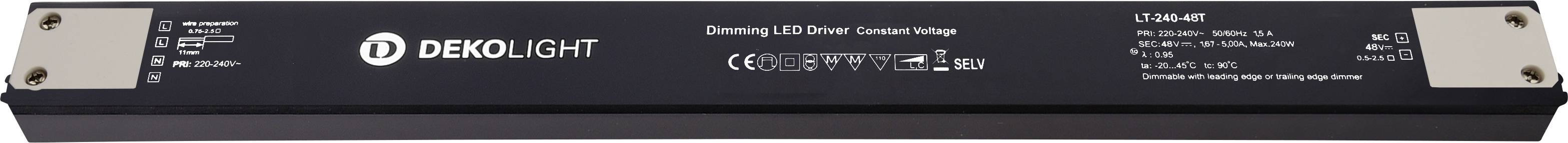

Deko Light Long-Flat LED transformer Constant voltage 240 W 1700 - 5000 mA 48 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Deco Light power supply (CV, DC) dimmable - Long-Flat, DIM, CV, 48V 80-240W
- Constant voltage
- 48 V DC
- 1700 - 5000 mA
Technical specifications
- Operating mode: Voltage constant
- Frequency 50 - 60 Hz
- Starting current max. 65 A / 500 µs
- VOLTAGE RANGE DC 176-280 V/DC
- Power factor 0.95
- Max. Number of LS B10: 2
- Max. Number of LS B16: 3
- Max. Number of LS C10: 4
- Max. Number of each LS C16: 6
- Connection option: Terminal
- Operating temperature -20 to +45°C.
- Storage temperature -20 to 70 °C.
- Life: 50,000 h
- Switching cycles 100000
- Input voltage 220-240 V/AC
- Output voltage: 48 V/DC
- Output current in mA 1700-5000 mA
- Min. Output current In mA 1700 mA
- Output current max. in mA: 5000 mA
- Output 80.0 - 240.0 W
- Activation: Phase-section dimmer
- Dimmable: Yes
- Number of channels: 1
- Features: Overheating protection, overload protection, extra low voltage, furniture installation, short circuit protection
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 443 x 32 x 23 mm
- Factory colour
Black
- Output voltage (max.)
48 V DC
- Max. output current
5000 mA
- Output current (max.) - rounded
5 A
- Protection class
II
IP20
- Max. power
240 W
- Output current (min.)
1700 mA
- Input voltage (max.)
240 V AC
- Min. input voltage
220 V AC
- Weight
494 g
- Power (min.)
80 W
- Power range
80 up to 240 W
- Type
Power supply (CV, DC)
- Width
32 mm
- Height
23 mm
- Length
443 mm
- Max. temperature
-20 °C
- Min. temperature
+45 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3766459 Deko Light Long-Flat LED transformer Constant voltage 240 W 1700 - 5000 mA 48 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3766459 Deko Light Long-Flat LED transformer Constant voltage 240 W 1700 - 5000 mA 48 V DC 1 pc(s)
Warranty Terms
Warranty Terms 3766459 Deko Light Long-Flat LED transformer Constant voltage 240 W 1700 - 5000 mA 48 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
