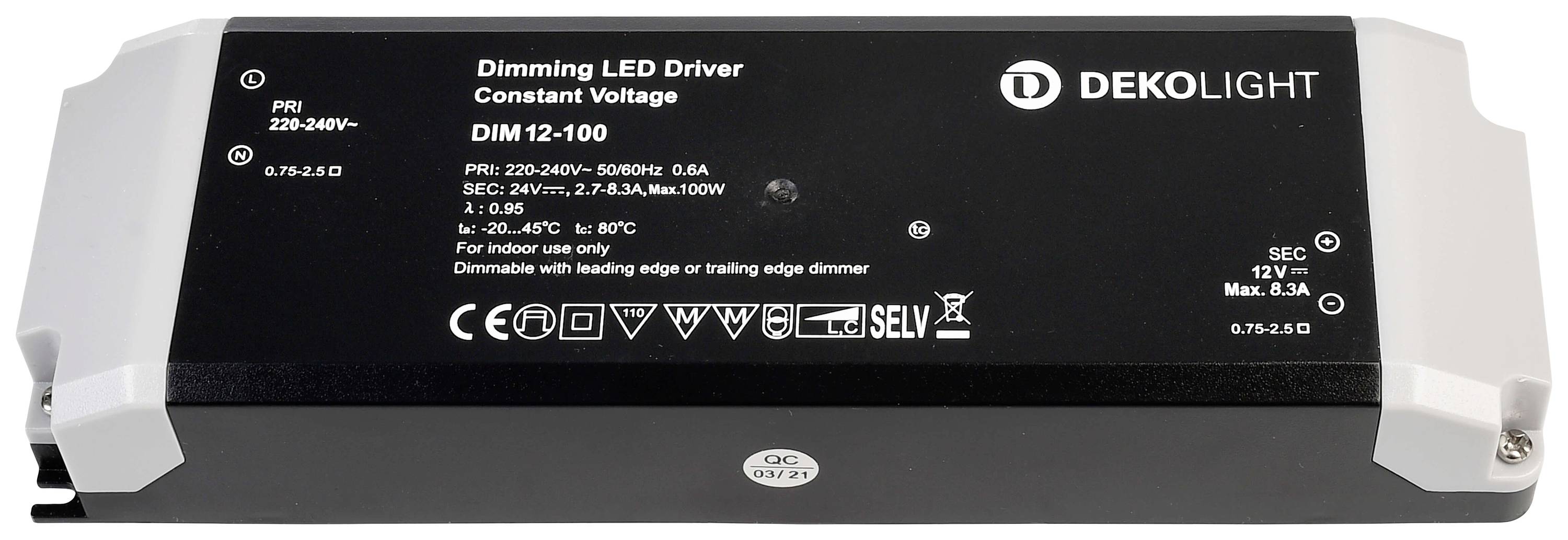

Deko Light OCTO, DIM, CC, RSM LED transformer Constant voltage 100 W 2700 mA - 8.30 A 12 V DC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
OCTO, DIM, CC, RSM
- Constant voltage
- 12 V DC
- 2700 mA - 8.30 A
Technical specifications
- Output current 2700-8300 mA
- Activation: Phase forward / phase section
- Material 1: Plastic
- max. Inrush current (A/µs): 45A/100µs
- Product type
LED transformer
- Type
Constant voltage
- Operating current
2700 mA
- Dim
(L x W x H) 210 x 67 x 34 mm
- Factory colour
Black
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Max. output current
8.30 A
- Output current (max.) - rounded
8.3 A
- Protection class
II
- LED driver features
dimmable
IP20
- Connection
Clamp
- Max. power
100 W
- Output current (min.)
2700 mA
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
34 W
- Power range
34 up to 100 W
- Width
67 mm
- Height
34 mm
- Length
210 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795446 Deko Light OCTO, DIM, CC, RSM LED transformer Constant voltage 100 W 2700 mA - 8.30 A 12 V DC dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
