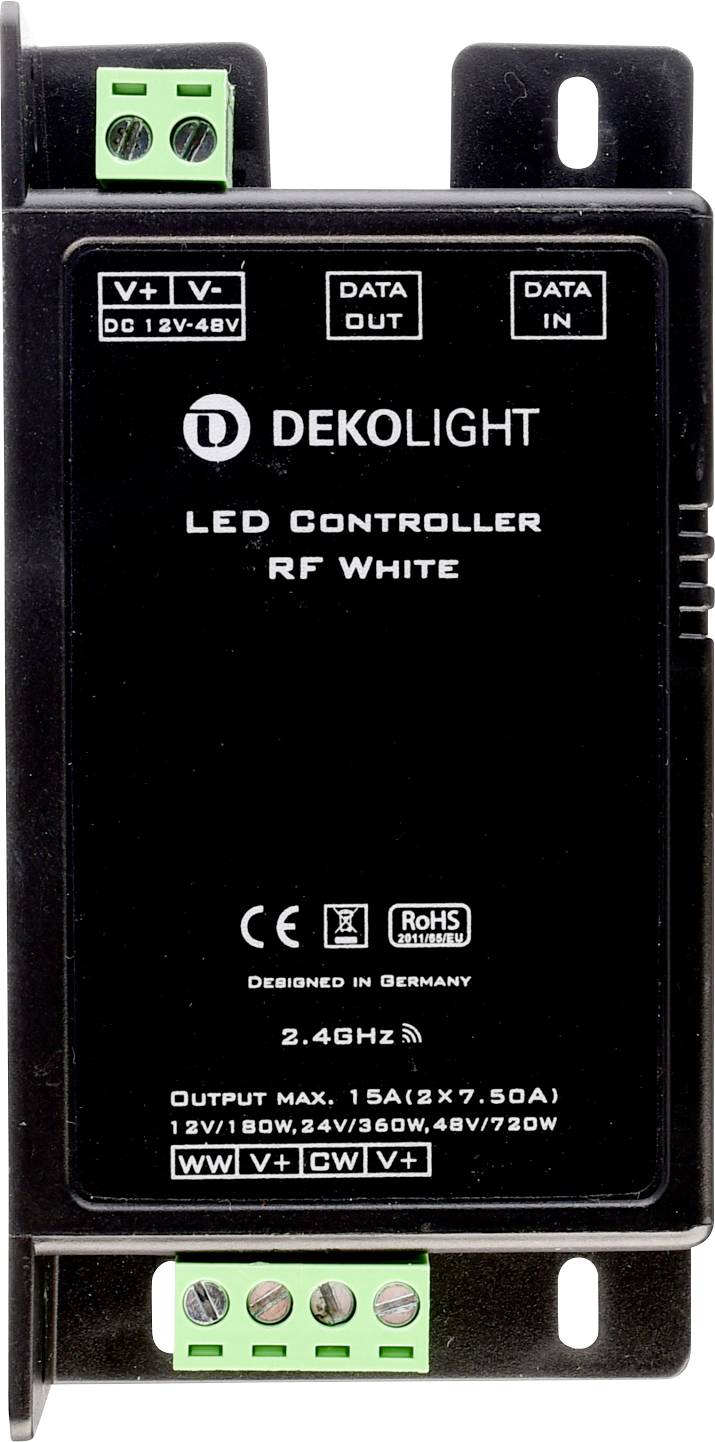

Deko Light RF White LED transformer Constant voltage 12 - 48 V DC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Deco-Light, low-voltage RF Dimmer (CV, DC), RF White, voltage constant, dimmable: Yes, RF 2.4 GHz, 12-
- Constant voltage
- 12 - 48 V DC
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 115 x 57 x 25 mm
- Factory colour
Black
- Output voltage (max.)
48 V DC
- Output voltage (min.)
12 V DC
- Protection class
III
- LED driver features
dimmable
IP20
- Connection
Clamp
- No. of outputs
2 x
- Weight
73 g
- Width
57 mm
- Height
25 mm
- Length
115 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3347618 Deko Light RF White LED transformer Constant voltage 12 - 48 V DC dimmable 1 pc(s)
Warranty Terms
Warranty Terms 3347618 Deko Light RF White LED transformer Constant voltage 12 - 48 V DC dimmable 1 pc(s)
Description
Scope of delivery
- 1x controller
- This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
