Deko Light RF White Remote LED driver Constant voltage 720 W 15 A 12 - 48 V dimmable 1 Set
EAN:
Part number:
Item no:
Highlights & Details
Decorative Light Controller, RF White Remote
- Constant voltage
- 12 - 48 V
- 15 A
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Operating current
15 A
- Dim
(L x W x H) 115 x 57 x 25 mm
- Factory colour
Black
- Output voltage (max.)
48 V
- Output voltage (min.)
12 V
- Max. output current
15 A
- Output current (max.) - rounded
15 A
- LED driver features
dimmable
IP20
- Connection
Clamp
RJ45
- Max. power
720 W
- No. of outputs
1 x
- Input voltage (max.)
48 V
- Min. input voltage
12 V
- Weight
140 g
- Power (min.)
180 W
- Power range
180 up to 720 W
- Width
57 mm
- Height
25 mm
- Length
115 mm
- Max. temperature
50 °C
- Min. temperature
0 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2618174 Deko Light RF White Remote LED driver Constant voltage 720 W 15 A 12 - 48 V dimmable 1 Set
Description
The radio remote controls can be used to control corresponding receiver systems within a radius of approx. 20 meters. The ability to connect only one wireless remote control to multiple controllers extends the system in a simple way. Caution: A 100% synchronous control [program sequence, color change] of several controller boxes with only one radio remote control can only be implemented by a connection via network cable [master-slave function]. The memory function saves the last setting after a power failure.
This text is machine translated.
This text is machine translated.
Features

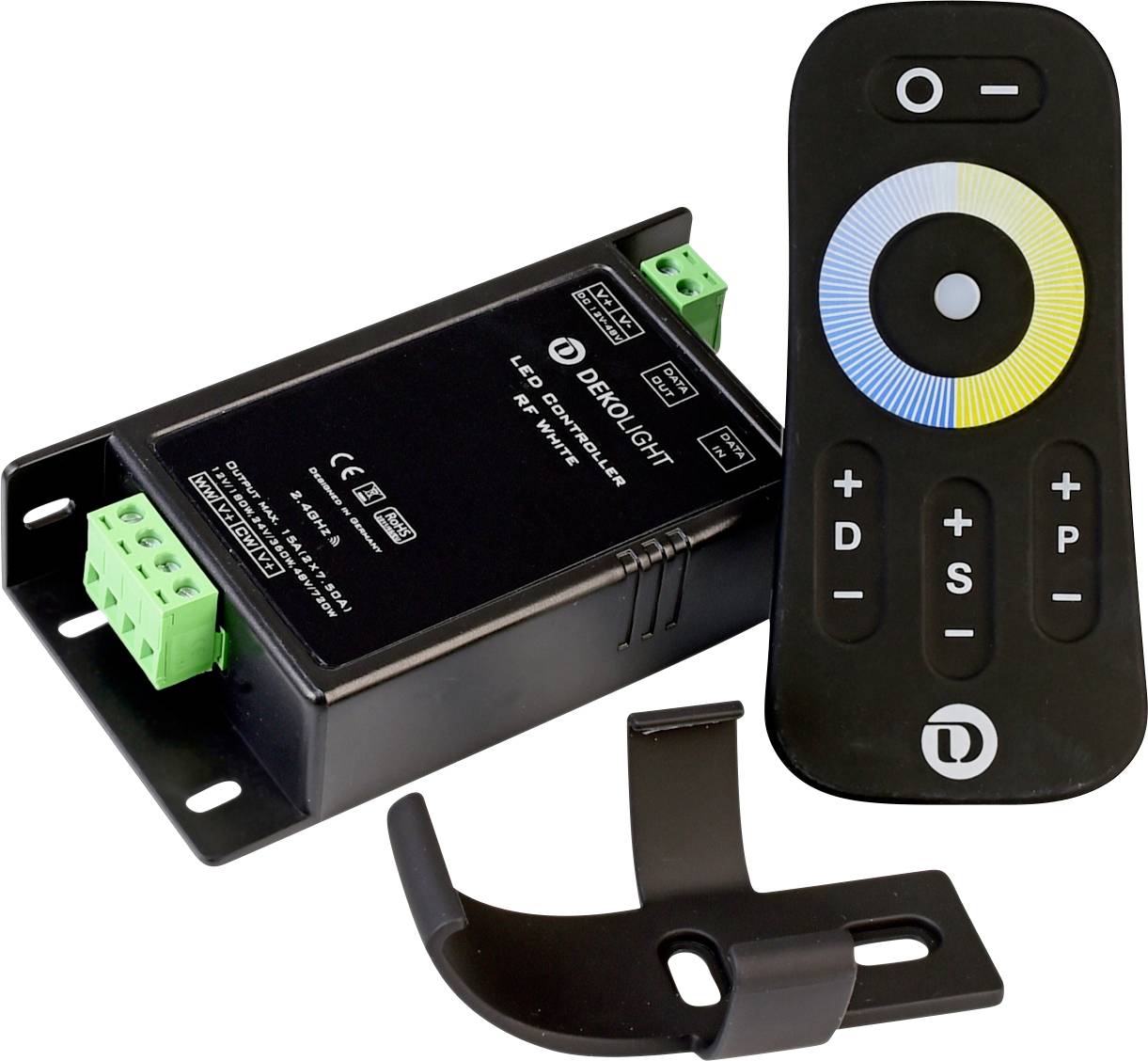

- Set consisting of: Controller, remote control and wall bracketFor controlling WW/CW LED stripsWW or CW can be dimmed as single color9 effects programsAdjustable program speedMax. 8 remote controls / 2 touch panels per system rangeMemory functionMaster/Slave functionmax. 7.5A per channelPower: 2x 90W [180W] at 12V DC, 2x 180W [360W] at 24V DC, 2x 360W [720W] at 48V DC
Scope of delivery
- Touch remote control
- Controller with bracket
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
