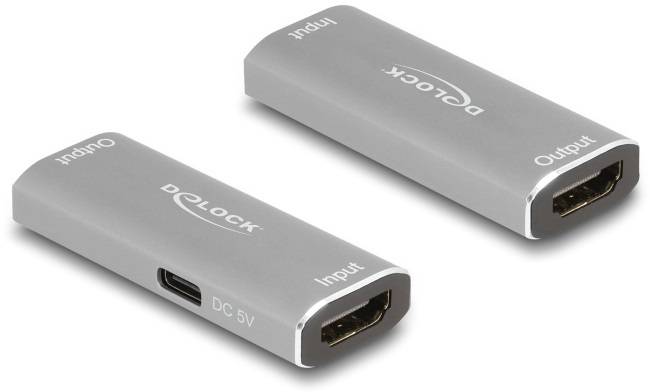

Delock 11506 HDMI™ Signal amplifier
EAN:
Part number:
Item no:
Technical specifications
- Product type
Signal amplifier
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Factory colour
Grey
- Weight
0
- Width
25 mm
- Height
11 mm
- Dim
(W x H x D) 25 x 11 x 58 mm
- No. of outputs
1 x
- No. of inputs
1 x
- Cable design
Round
- Version
Cable
- Depth
58 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- HDCP
yes
- Maximum video resolution
7680 x 4320 p
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3383088 Delock 11506 HDMI™ Signal amplifier
Description
This HDMI Repeater of Delock is used for signal amplification of an HDMI connection up to 20 m. A HDMI cable up to 15 m long can be connected from the PC or notebook to the repeater input, and on the other side a up to 5 m long HDMI cable to the output of the repeater, which is then connected to a display or TV. The repeater supports a resolution of up to 8K Ultra HD (8K @ 60 Hz) and is backward compatible with Full-HD 1080p.
