Delock 12430 12430 LTE antenna 4 dBi 2.4 GHz
EAN:
Part number:
Item no:
Highlights & Details

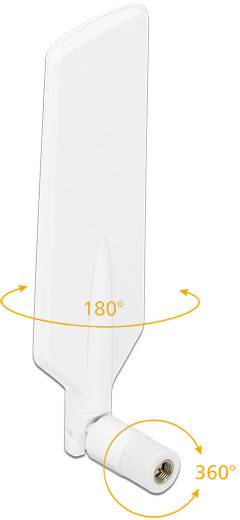

Delock 12430 Network-Antenna Omni-directional Antenna SMA 4 dBi
- Omni-directional antenna SMA white
- 4 dBi
- 0,698 - 0,791 / 0,824 - 0,960 / 1,710 - 2,170 / 2,400 - 2,500 / 5,150 - 5,875 GHz
- 50 Ohm
Technical specifications
- Frequency range 0,698 - 0,791 / 0,824 - 0,960 / 1,710 - 2,170 / 2,400 - 2,500 / 5,150 - 5,875 GHz
- Impedance: 50 ohm
- Product type
LTE antenna
- Gain
4 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
SMA plug
- Antenna socket
SMA plug
- Weight
0.10
- No. of ports
1
- Dual Band compatibility
2.4 GHz and 5 GHz
- Width
39.8 mm
- Height
13.5 mm
- Length
156.16 mm
- Cable design
Round
- Version
Cable
- Factory colour
White
- Depth
156.2 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Quantity per pack
1 Stück(e)
- Diameter
1.35 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380718 Delock 12430 12430 LTE antenna 4 dBi 2.4 GHz
Description
This LTE antenna is used to receive various LTE indoor bands. It is completely compatible with Bluetooth, UMTS, GSM, WLAN dual band and ZigBee.
This text is machine translated.
This text is machine translated.
Features

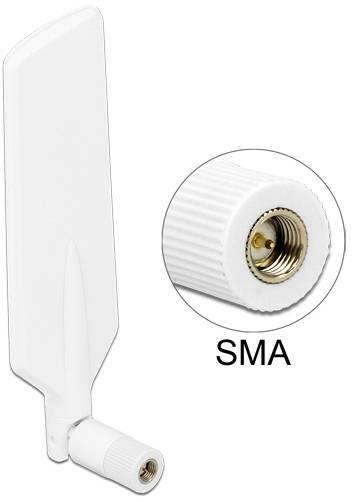

- Connection 1 x SMA plug
- Frequency range:

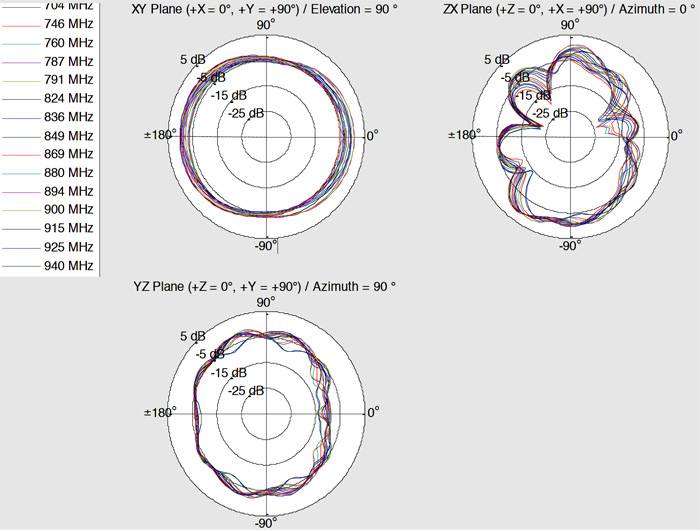

- 698 - 791 MHz
- 824 - 960 MHz

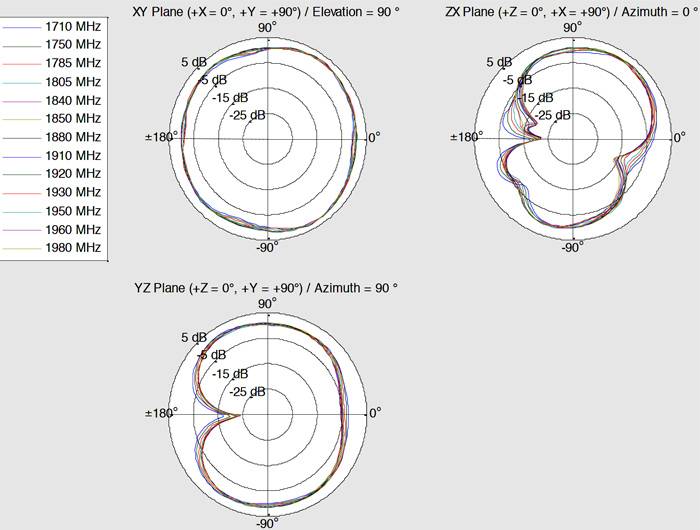

- 1710 - 2170 MHz

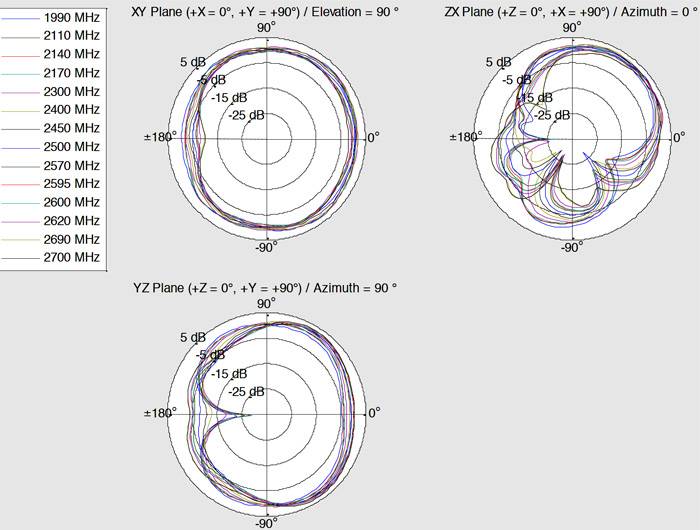

- 2400 - 2500 MHz
- 2570 - 2700 MHz

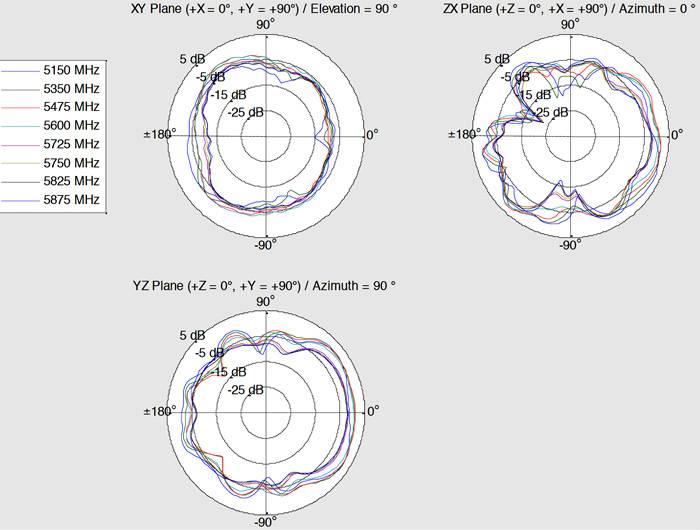

- 5150 - 5875 MHz
- Bluetooth, GSM, LTE, UMTS, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, Z-Wave, DECT,
- LoRa 868 / 915 MHz
- Antenna gain 1 - 4 dBi
- Impedance: 50 ohm

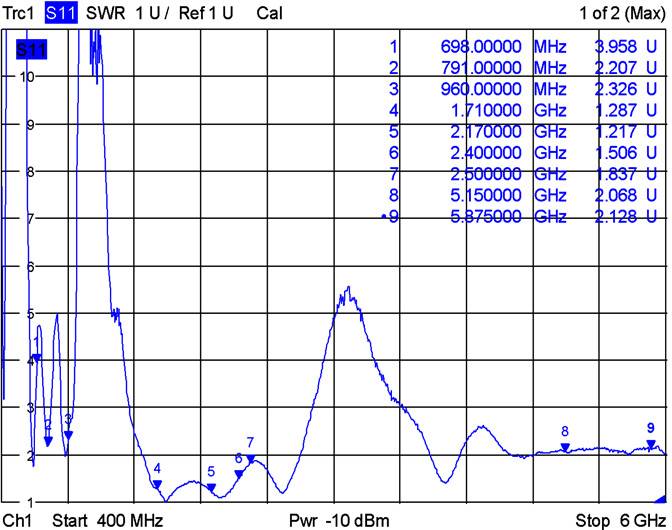

- VSWR:
- 698 - 791 MHz:5.0
- 824 - 960 MHz:5.0
- 1710 - 2170 MHz:2.5
- 2400 - 2500 MHz:2.5
- 2570 - 2700 MHz:2.5
- 5150 - 5875 MHz:3.0
- Operating temperature: -10 °C ~ 55 °C
- Case material: ABS UV-protected

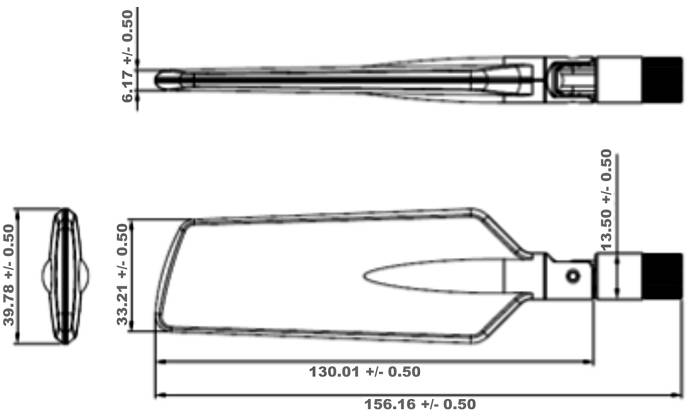

- Dim. (LxWxH): Approx. 156.16 x 39.78 x 6.17 mm
- Diameter SMA: Approx. 13.5 mm
System requirements
- Device with a free SMA connection
