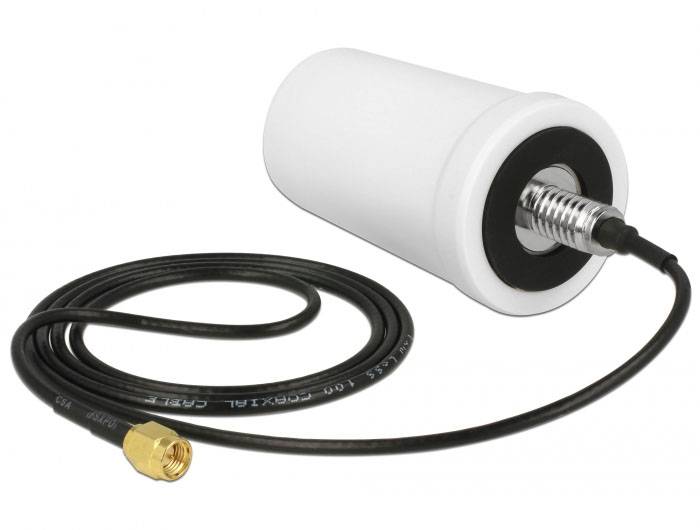

Delock 12545 Internal antenna LTE
EAN:
Part number:
Item no:
Highlights & Details

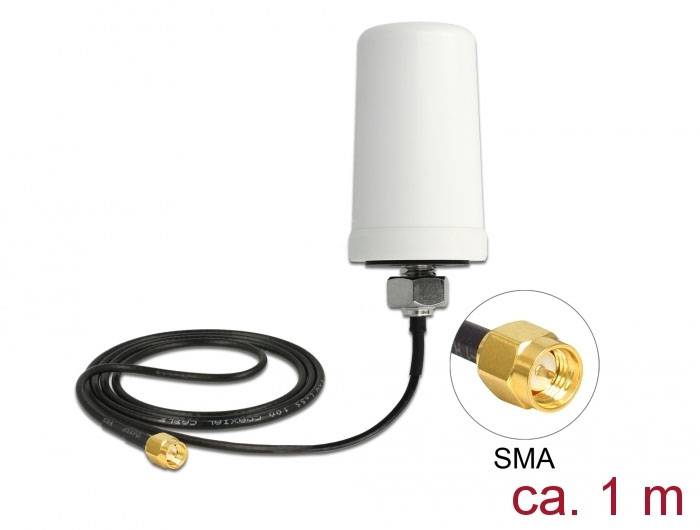

LTE antenna SMA plug 1.7 - 2.0 dBi ULA100 1 m omni-directional rigid outdoor white
Technical specifications
- Cable type ULA 100
- Product type
Mobile phone antenna
- Mobile phone standard
LTE
- Factory colour
Black
White
- Length
150 cm
- Antenna type
Internal antenna
- Suitable for mains
LTE
- Width
45 mm
- Height
77 mm
- Cable design
Round
- Cable length
1 m
- Version
Cable
- Depth
45 mm
IP67
- Cable use
C13/C14 appliances
- Weight
0.14
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Antenna gain level (max)
2 dBi
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381543 Delock 12545 Internal antenna LTE
Description
The Delock antenna allows various LTE bands to be used indoors and outdoors. It is fully GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, TETRA and Lora compatible
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range:
- 698 - 960 MHz
- 1710 - 2170 MHz
- 2300 - 2700 MHz
- GSM, UMTS, LTE, BLUETOOTH, ISM, NB-IoT, LoRa, Z-Wave, WLAN, ZigBee, DECT:
- TETRA BRIK
- Antenna gain:
- 698 - 960 MHz 1.7 dBi
- 1710 - 2170 MHz 1.7 dBi
- 2300 - 2700 MHz 2.0 dBi
- VSWR:
- 698 - 960 MHz:6.0
- 1710 - 2170 MHz:2.5
- 2300 - 2700 MHz:2.5
- Operating temperature -40 °C ~ 85 °C
- Polycarbonate housing material
- Protection class IP67
- Colour: white
- Cable type: Coaxial
- Cable type ULA100
- Cable color: Black
- Cable diameter: Approx. 2.8 mm
- Cable attenuation: 0.98 dB @ 1500 MHz per meter
- Minimum bend radius: Approx. 14 mm
- Cable length incl. connections: Approx. 1 m.
- Dimensions (LxD): Approx. 77 x 45 mm
System requirements
- Device with a free SMA socket
