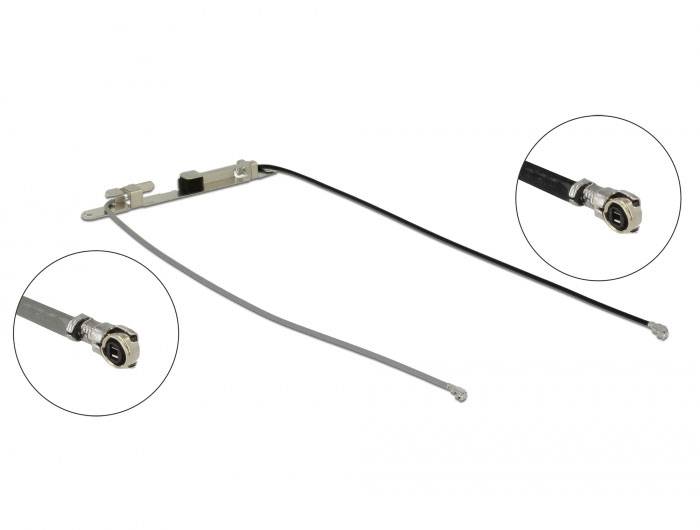

Delock 12551 12551 Wi-Fi antenna 3.18 dBi 2.4 GHz
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Delock 12551 network antenna MHF 3.18 dBi
- MHF black
- 3.18 dBi
- 2.4 - 2.5, 5,150 - 5,850 GHz
- 50 Ohm
- Vertical polarization
Technical specifications
- 2.4 – 2.5 GHz, 5,150 – 5,850 GHz band
- Impedance: 50 ohm
- Product type
Wi-Fi antenna
- Gain
3.18 dBi
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
IPEX plug
- Weight
0.10
- No. of ports
2
- Dual Band compatibility
2.4 GHz and 5 GHz
- Mounting type
Screw fastening
Adhesive
- Polarisation
Linear
Vertical
- Width
5 mm
- Height
5 mm
- Length
50 mm
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Depth
50 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Antenna gain (2.4 GHz)
1.12 dBi
- Antenna gain (5 GHz)
3.18 dBi
Documents & Downloads
Datasheet
Datasheet 3381544 Delock 12551 12551 Wi-Fi antenna 3.18 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3381544 Delock 12551 12551 Wi-Fi antenna 3.18 dBi 2.4 GHz
Description
This Delock antenna allows you to use the 2.4 GHz + 5 GHz WLAN bands indoors.
This text is machine translated.
This text is machine translated.
Features
- Connection: 2 x I-PEX Inc., MHF® 4L plug
- Frequency range:
- 2400 - 2500 MHz
- 5150 - 5850 MHz
- Bluetooth, WLAN 2.4/5.0 GHz, ZigBee 2.4 GHz, ISM
- Antenna gain:
- 2400 - 2500 MHz 1.12 dBi
- 5150 - 5850 MHz 3.18 dBi
- Impedance: 50 ohm
- Polarisation: linear, vertical
- Mounting type: Screw mounting or adhesive mounting
- Operating temperature: -10 °C ~ 55 °C
- FPC casing material
- Colour, black
- Cable type: Coaxial
- Cable type 1.13
- Cable color: Black/gray
- 2.4 GHz black
- Grey:5.0 GHz
- Cable diameter: Approx. 1.13 mm
- Cable attenuation: 3.2 dB @ 2.4 GHz per meter
- Minimum bend radius: Approx. 4.5 mm
- Cable length incl. connections: 2 x approx. 15 cm
- Length including connections (L): Approx. 36 cm
- Dim. (LxWxH): Approx. 50 x 5 x 5 mm
System requirements
- Device with two free I-PEX Inc., MHF® 4L connectors
