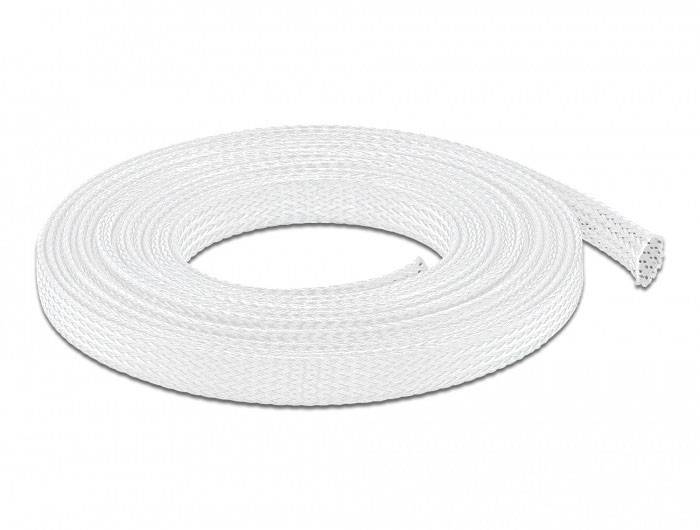

Delock 20804 20804 Braided hose White Polyester 10 m 8 up to 24 mm 1 pc(s)
Product type
Braided hose
Bundle diameter (min.)
8 mm
Bundle Ø (max.)
24 mm
Material
Polyester
Length
10 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Braided hose
- Features
Non-abrasive
highly elastic
- Bundle diameter (min.)
8 mm
- Factory colour
White
- Bundle Ø (max.)
24 mm
- Material
Polyester
- Min. temperature
-40 °C
- Max. temperature
125 °C
- Bundle Ø range
8 up to 24 mm
- Manufacturer part #
20804
- Content
1 pc(s)
- Type
20804
- Version
Adapter
- Length
10 m
- UKCA
yes
- Operating temperature (T-T)
-40 - 125 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3382377 Delock 20804 20804 Braided hose White Polyester 10 m 8 up to 24 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3382377 Delock 20804 20804 Braided hose White Polyester 10 m 8 up to 24 mm 1 pc(s)
Description
This braided hose from Delock is suitable for bundling exposed cables, electrical wires or wires to protect them from dirt or damage.
Extendible
This braided hose is very elastic, allowing several cables with different diameters to be taken up.
Excellent resistance
The braided hose is characterized by its high abrasion resistance and heat resistance.
Reusable
Cables and hoses can be added or removed multiple times.
Cut to size
With the help of a heat cutting device, the length of the braided hose can be individually shortened.
This text is machine translated.
Extendible
This braided hose is very elastic, allowing several cables with different diameters to be taken up.
Excellent resistance
The braided hose is characterized by its high abrasion resistance and heat resistance.
Reusable
Cables and hoses can be added or removed multiple times.
Cut to size
With the help of a heat cutting device, the length of the braided hose can be individually shortened.
This text is machine translated.
Features
- Length approx. 10 m
- Diameter approx. 12 mm
- Cable diameter:
- min. 8 mm
- max. 24 mm
- Ambient temperature: -40 °C to 125 °C
- Reusable
- Material: Polyester;
- Fire resistance class 94V-2, VW-1
- Colour: white
