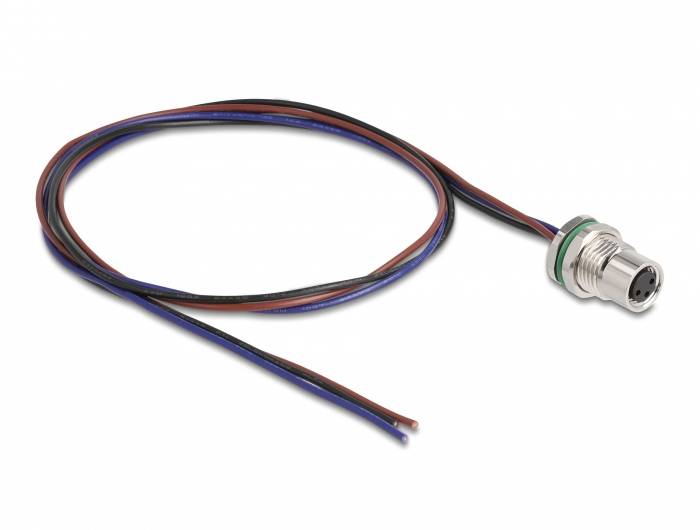

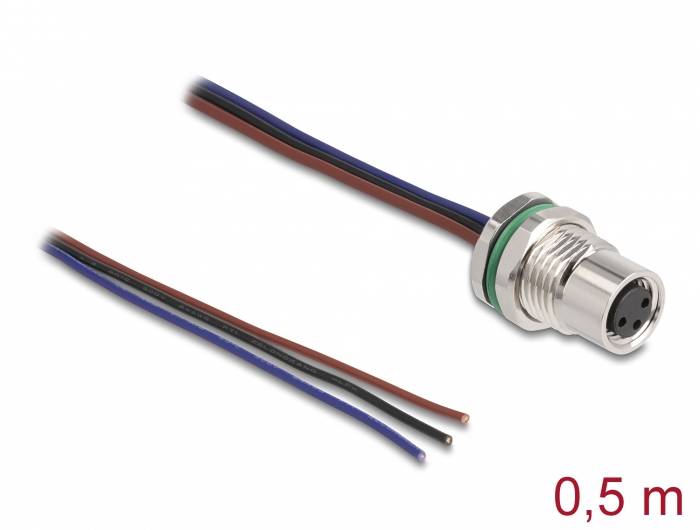

Delock 80146 Sensor/actuator cable M8 0.5 m No. of pins (RJ): 3 1 pc(s) Bag
Product type
Sensor/actuator cable
Connector standard
Sensor connector
No. of pins
3
Cable length
0.5 m
Thread type connection side
M8
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Connection 1 M8
- Connection 2 M8
- Packaging type
Bag
- Type
80146
- Product type
Sensor/actuator cable
- Connector standard
Sensor connector
- No. of pins
3
- Cable length
0.5 m
- Jacket material
PUR
- Outside Ø
4.6 mm
- Factory colour
Black
Silver
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
- Cable colour
Black
Blue
Brown
- Coding
A
- Contact material
Copper
- Contact surface
Tin
IP67
- Features
PUR jacket
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Seal type
None
- Manufacturer part #
80146
- Content
1 pc(s)
- Cable Ø
4.6 mm
- Cable Ø (max.)
4.6 mm
- Cable Ø range
4.6 mm (max)
- Cable design
Round
- Version
Cable
- Screen size diagonal (inches)
24 inch
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-25 - 85 °C
Documents & Downloads
Datasheet
Datasheet 3383072 Delock 80146 Sensor/actuator cable M8 0.5 m No. of pins (RJ): 3 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 3383072 Delock 80146 Sensor/actuator cable M8 0.5 m No. of pins (RJ): 3 1 pc(s) Bag
Description
This Delock industrial installation cable can be used to connect various components to M8 connectors, e.g. for machine control or automation.
This text is machine translated.
This text is machine translated.
Features

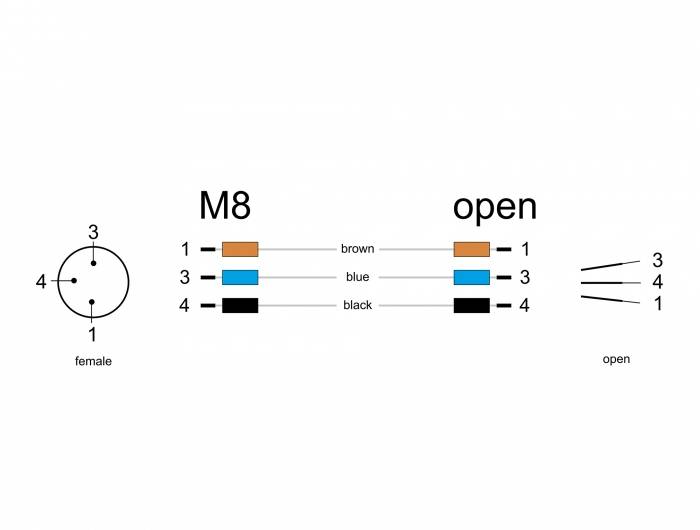

- Connections:
- 1 x M8 socket 3 pin A-coded
- Pin assignment: 1:1
- Shielding: Aluminium foil, braided made of tin-plated copper
- Copper cables
- Wire cross-section 24 AWG
- Cable diameter: Approx. 4.6 mm
- Cable sheath material: PUR (TPU)
- UV-resistant
- Operating temperature: -25 °C - 85 °C
- Protection class IP67
- Colour, black
- Length including connections: Approx. 0.5 m.
System requirements
- A free M8 plug
