Delock 80520 Sensor/actuator cable M12 2 m 1 pc(s) Bag
Product type
Sensor/actuator cable
Connector standard
Sensor connector
Cable length
2 m
Nominal voltage
63 V
Nominal current
12 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Cable type RST
- Packaging type
Bag
- Type
80520
- Product type
Sensor/actuator cable
- Connector standard
Sensor connector
- Cable length
2 m
- Nominal voltage
63 V
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Factory colour
Black
Silver
- Thread type connection side
M12
- Cable colour
Black
- Contact material
Copper
IP66
IP67
- Seal type
None
- Manufacturer part #
80520
- Content
1 pc(s)
- Cable Ø
7.2 mm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Connection type
M12
- UKCA
yes
- Operating temperature (T-T)
-40 - 80 °C
- Quantity
1
- Rated voltage
63 V
- Oil-resistant
yes
- Bending radius (max)
7.2 cm
Documents & Downloads
Datasheet
Datasheet 3383787 Delock 80520 Sensor/actuator cable M12 2 m 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 3383787 Delock 80520 Sensor/actuator cable M12 2 m 1 pc(s) Bag
Description

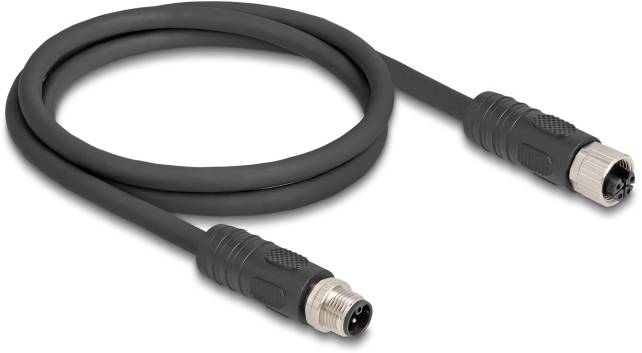

This M12 sensor cable from Delock is used for DC applications. The L-coded version has 4 current contacts with a rated current of 12 A at 63 V, which can reliably transfer currents. This means, for example, that field bus components, power supplies, industrial machines and motors can be supplied with power that requires a high current and low voltage.
This text is machine translated.
This text is machine translated.
Features
- Connections:

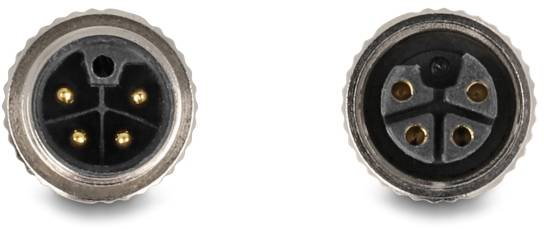

- 1 x M12 connector 4 pin L-coded
- 1 x M12 socket 4 pin L-coded
- Copper wire
- Unshielded
- Wire cross-section: 16 AWG (1.5 mm²)
- Nominal current 12 A / 63 V
- Width across: SW13
- Cable diameter: Approx. 7.2 mm
- Cable sheath material PUR
- Drag-chain compatible
- Drag chain speed: Up to max. 5 m/s.
- Tightening torque 0.6 Nm
- Bending radius (fixed) 5 x outer diameter
- Bending radius (movable) 10 x external diameter
- Max. Number of bending cycles: 5,000,000
- Max. Number of torsion cycles: 500,000
- Torsional load: ± 180 °/m
- Operating temperature (fixed) -40 °C ~ 80 °C.
- Operating temperature (movable): -25 °C ~ 70 °C.
- Flammability class UL94V 94HB
- Halogen-free, silicon-free, oil-resistant
- Protection class IP66/IP67
- Material thread: Die-cast zinc
- Colour, black

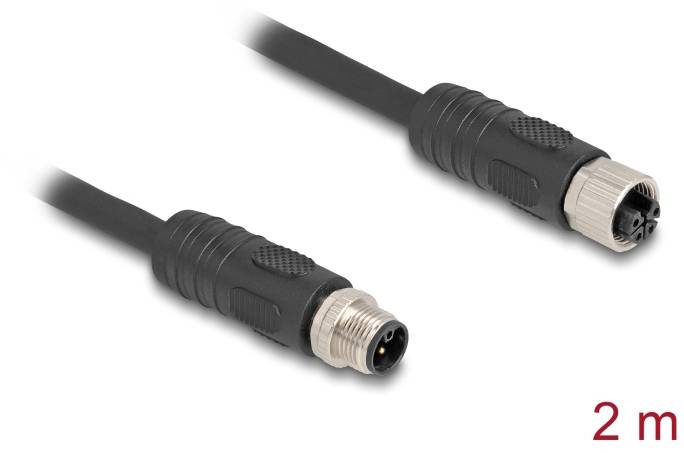

- Length including connections: Approx. 2 m.
