Delock 87901 FO socket White 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
FO socket
- Material
ABS plastic
- Factory colour
White
- Width
144 mm
- Height
41 mm
- Depth
196 mm
- Cable design
Round
- Version
Cable
IP65
- Cable use
C13/C14 appliances
- UKCA
yes
- Suitable for outdoor use
yes
- Wall mountable
yes
- Suitable for indoor use
yes
- Cable diameter supported (max)
1 cm
- Number of fibres supported (max)
6
- Number of splice trays supported (max)
6
Documents & Downloads
Datasheet
Datasheet 3380930 Delock 87901 FO socket White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3380930 Delock 87901 FO socket White 1 pc(s)
Description

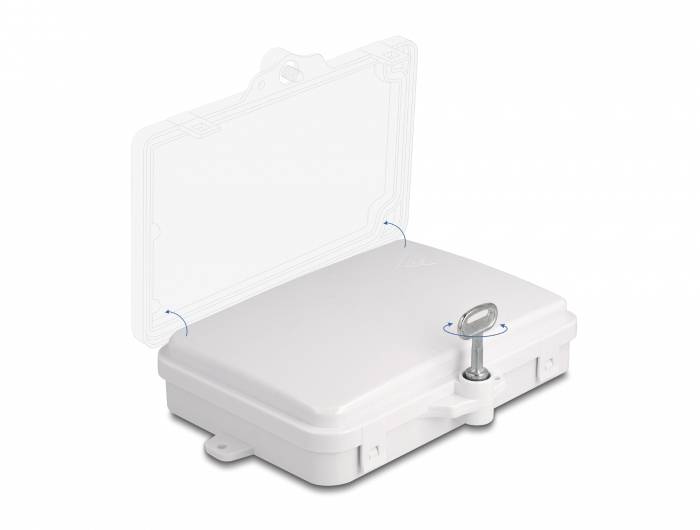

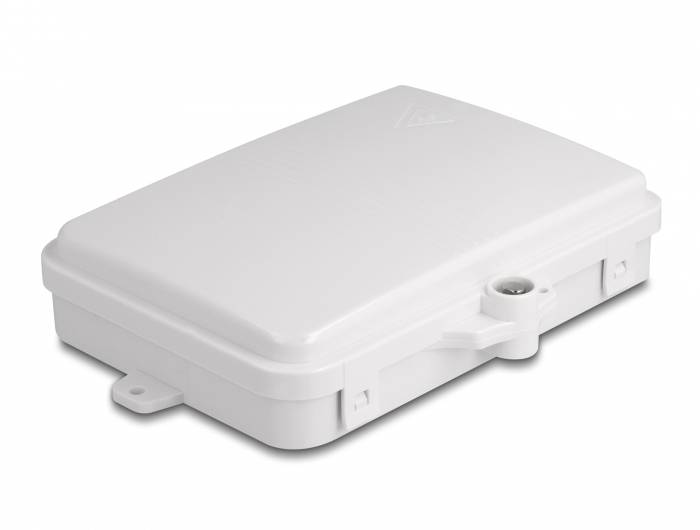

This lockable distribution box by Delock is suitable for wall mounting and serves as protection device for optical cables and couplings. The distribution box allows the recording of up to six SC Simplex or LC Duplex couplings.
With splice holder

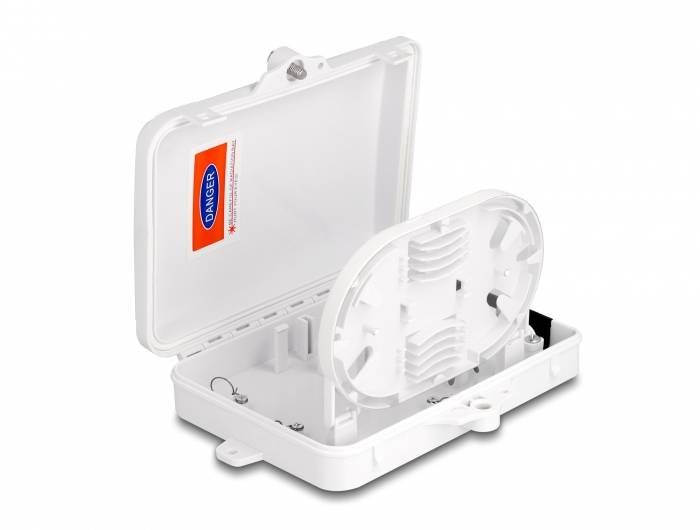

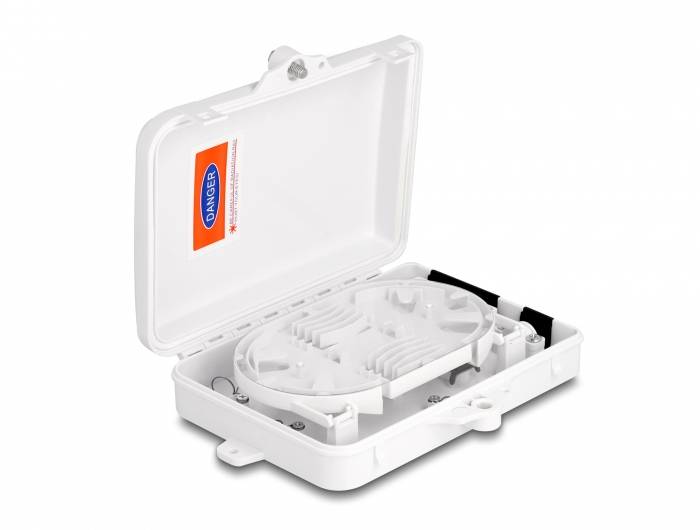

The integrated splice box allows clean wiring of the individual fibers for the optimal transmission of fiber-optic signals.
IP65 dust and waterproof
The distribution box possesses a cable input and six cable outputs, which are protected with a rubber seal. The seal provides increased protection against contamination and humidity for connecting glass fiber cables indoors and outdoors.
This text is machine translated.
With splice holder
The integrated splice box allows clean wiring of the individual fibers for the optimal transmission of fiber-optic signals.
IP65 dust and waterproof
The distribution box possesses a cable input and six cable outputs, which are protected with a rubber seal. The seal provides increased protection against contamination and humidity for connecting glass fiber cables indoors and outdoors.
This text is machine translated.
Features
- Glass-fiber distribution box for FTTH applications
- 6 slots for SC Simplex or LC duplex couplings
- Wall mounting

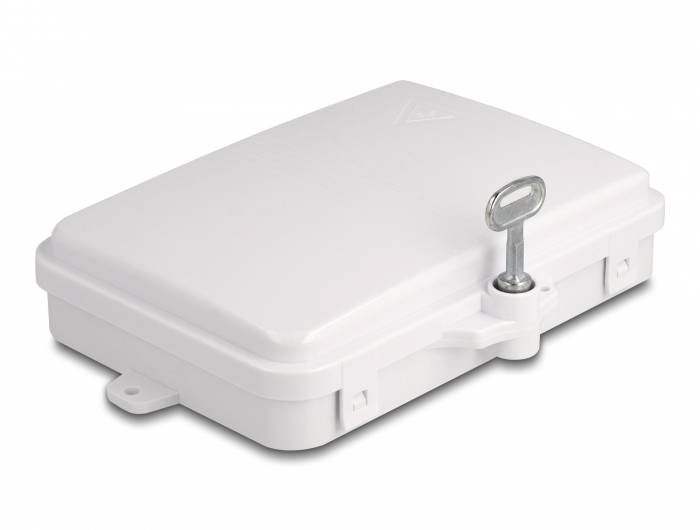

- Lockable
- With splice holder
- Cable entry with rubber seal
- Cable diameter: Approx. 10 mm
- For indoor and outdoor use.
- Protection system: IP65
- Ambient temperature: -40 °C - 75 °C
- Housing color: White
- ABS casing material
- Dim. (LxWxH): Approx. 196 x 144 x 41 mm
