Delock 87902 FO socket White 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
FO socket
- Material
ABS plastic
- Factory colour
White
- Width
195 mm
- Height
55 mm
- Depth
243 mm
- Cable design
Round
- Version
Cable
- Length
200 cm
IP65
- Cable use
C13/C14 appliances
- UKCA
yes
- Suitable for outdoor use
yes
- Wall mountable
yes
- Suitable for indoor use
yes
- Cable diameter supported (max)
1.2 cm
- Number of fibres supported (max)
8
- Number of splice trays supported (max)
8
Documents & Downloads
Datasheet
Datasheet 3380928 Delock 87902 FO socket White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3380928 Delock 87902 FO socket White 1 pc(s)
Description

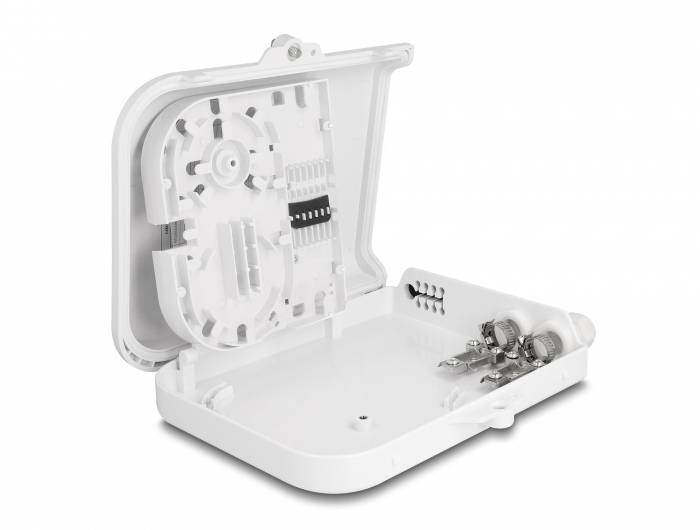

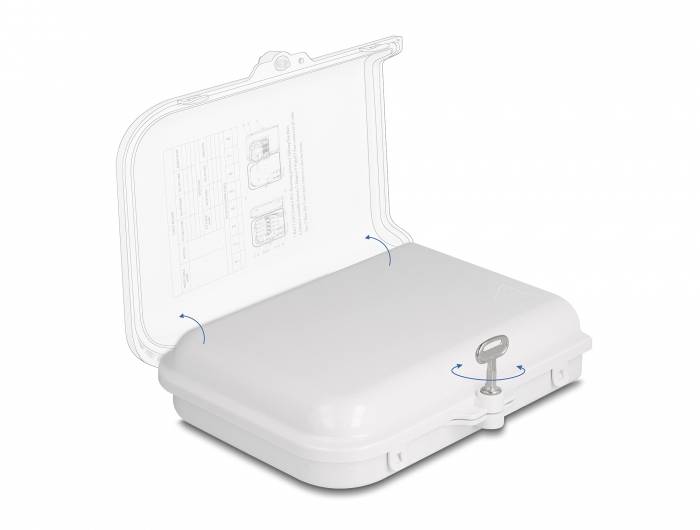

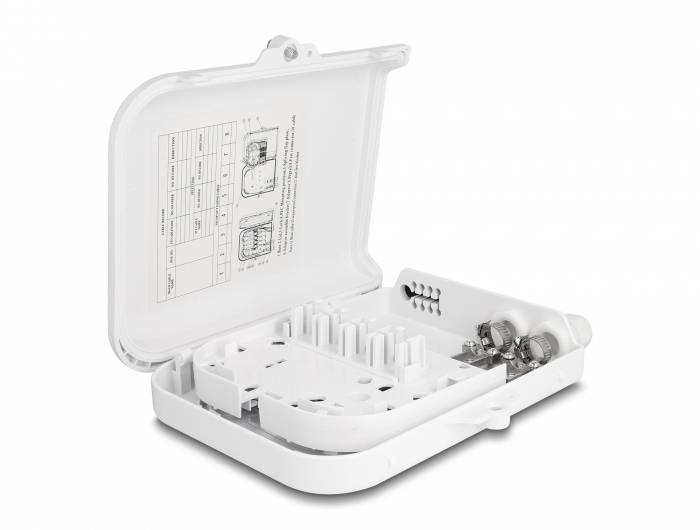

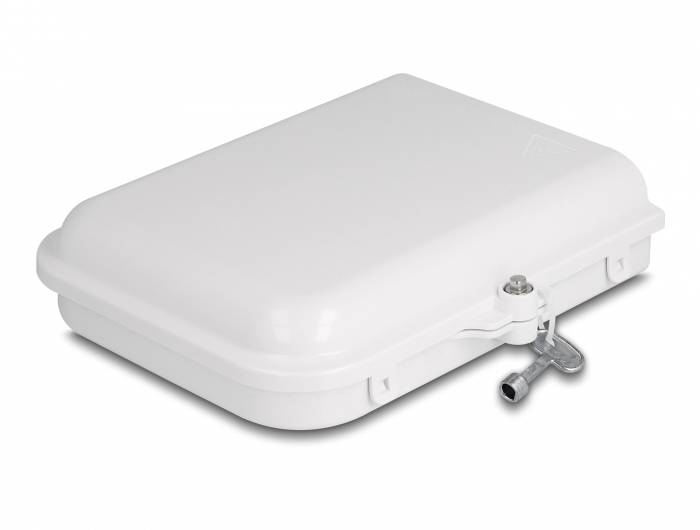

This lockable distribution box by Delock is suitable for wall mounting and serves as protection device for optical cables and couplings. The distribution box allows the recording of up to eight SC Simplex or LC duplex couplings.
With splice box
The integrated splice box allows clean wiring of the individual fibers for the optimal transmission of fiber-optic signals. In addition, the cassette is perfectly suited for mechanical splicing and fusion splicing.
IP65 dust and waterproof

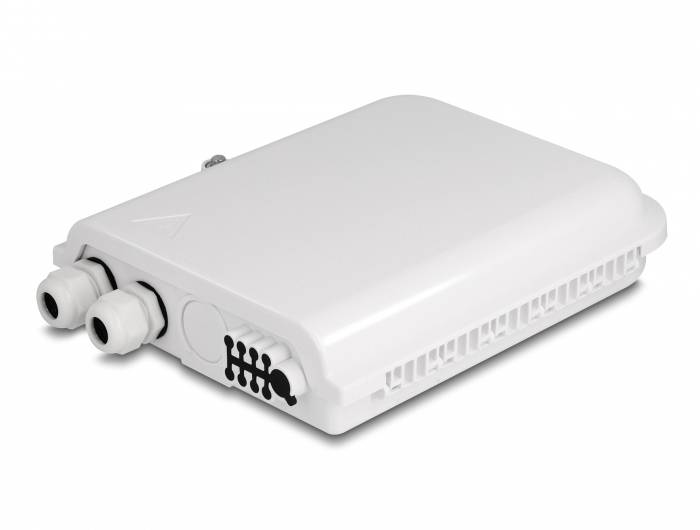

The distribution box has two cable inputs each with a screwing and nine cable outputs, which are protected with a rubber gasket. The cable glands and seals allow a watertight seal to the housing for the passage of glass fiber cables indoors and outdoors.
This text is machine translated.
With splice box
The integrated splice box allows clean wiring of the individual fibers for the optimal transmission of fiber-optic signals. In addition, the cassette is perfectly suited for mechanical splicing and fusion splicing.
IP65 dust and waterproof
The distribution box has two cable inputs each with a screwing and nine cable outputs, which are protected with a rubber gasket. The cable glands and seals allow a watertight seal to the housing for the passage of glass fiber cables indoors and outdoors.
This text is machine translated.
Features
- Glass-fiber distribution box for FTTH applications
- 8 slots for SC Simplex or LC duplex couplings
- Wall mounting
- Lockable
- With splice box
- Cable entry with screw connection and rubber seal
- Cable diameter: Approx. 12 mm
- For indoor and outdoor use.
- Protection system: IP65
- Ambient temperature: -40 °C - 75 °C
- Housing color: White
- ABS casing material
- Dim. (LxWxH): Approx. 243 x 195 x 55 mm
