Delock 88969 88969 LTE antenna 4.3 dBi
EAN:
Part number:
Item no:
Highlights & Details

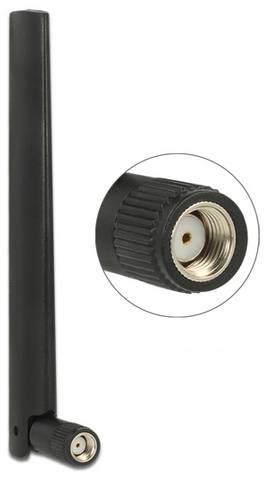

Delock 88969 network-antenna Omni-directional antenna RP-SMA 4.3 dBi
- Omni-directional antenna RP-SMA black
- 4.3 dBi
- 50 Ohm
- Vertical polarization
Technical specifications
- Impedance: 50 ohm
- Product type
LTE antenna
- Gain
4.3 dBi
- Type
Monopole antenna
- Weight
20.5 g
- Polarisation
Linear
Vertical
- Width
20.1 mm
- Height
135.6 mm
- Version
Adapter
- Factory colour
Black
- Cable use
Networks
- UKCA
yes
- Operating temperature (T-T)
-20 - 65 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380676 Delock 88969 88969 LTE antenna 4.3 dBi
Description
You can connect this ZigBee multi antenna to your device with RP-SMA connection in order to receive and transmit signals.
This text is machine translated.
This text is machine translated.
Features
- RP-SMA connection
- ZigBee 868 MHz, 902 ~ 928 MHz, 2405 ~ 2480 MHz
- LTE tape 1-10/12-14/17-20/25-30/33-41/44
- GSM 750/810/850/9001800/1900
- UMTS BAND: I-VI/VIII-X/XIII-XIX
- Bluetooth
- WLAN 2.4 GHz
- 699 – 960 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz
- Antenna gain 1 ~ 4.3 dBi
- Polarisation: linear, vertical
- Impedance: 50 ohm
- VRW:3.5:1 max.
- Operating temperature range -20°C ~ 65°C
- Weight: 20.5 g
- Dimensions (L) 135.6 mm
- Less than "span style= font-size: 12px; Ø: 20.1 mm
- Small "Alspan style="font-size: 12px; Økleiner as/span RP-SMA connector: 10.1 mmless than/span
System requirements
- Device with RP-SMA connection
