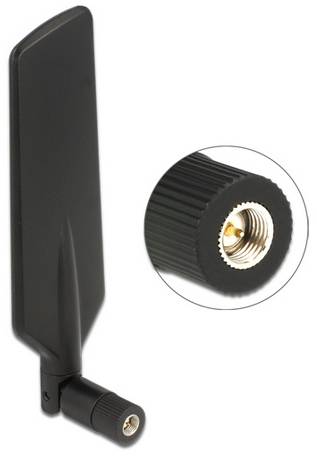

Delock 88978 88978 LTE antenna 3 dBi 2.4 GHz
EAN:
Part number:
Item no:
Highlights & Details
Delock 88978 Network-Antenna Omni-directional Antenna SMA 3 dBi
- Omni-directional antenna SMA Black
- 3 dBi
- 50 Ohm
Technical specifications
- Impedance: 50 ohm
- Product type
LTE antenna
- Gain
3 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
SMA plug
- Antenna socket
SMA plug
- Weight
0
- No. of ports
1
- Width
39.8 mm
- Height
156.2 mm
- Length
156.16 mm
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Depth
13.5 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380678 Delock 88978 88978 LTE antenna 3 dBi 2.4 GHz
Description
This LTE antenna can be installed indoors and can be used for receiving various LTE tapes. It is fully compatible with UMTS, GSM and ZigBee 868~870 MHz/ 902~928 MHz.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, LoRa
- Frequency range:
- 698 - 960 MHz
- 1710 - 2700 MHz
- Antenna gain 0.5 - 3 dBi
- Impedance: 50 ohm
- VSWR 3.0
- Operating temperature: -10 °C ~ 55 °C
- ABS casing material
- Dim. (LxWxH): Approx. 156.16 x 39.78 x 13.50 mm
- Diameter SMA: Approx. 13.5 mm
System requirements
- Device with a free SMA connection
